Van Air Systems · DELIQUESCENT

D-50-3

50 SCFM · 75°F dew point · 0% purge · 250 PSI max
AVERAGE PRICE
$1,968
2 retailers · in stock

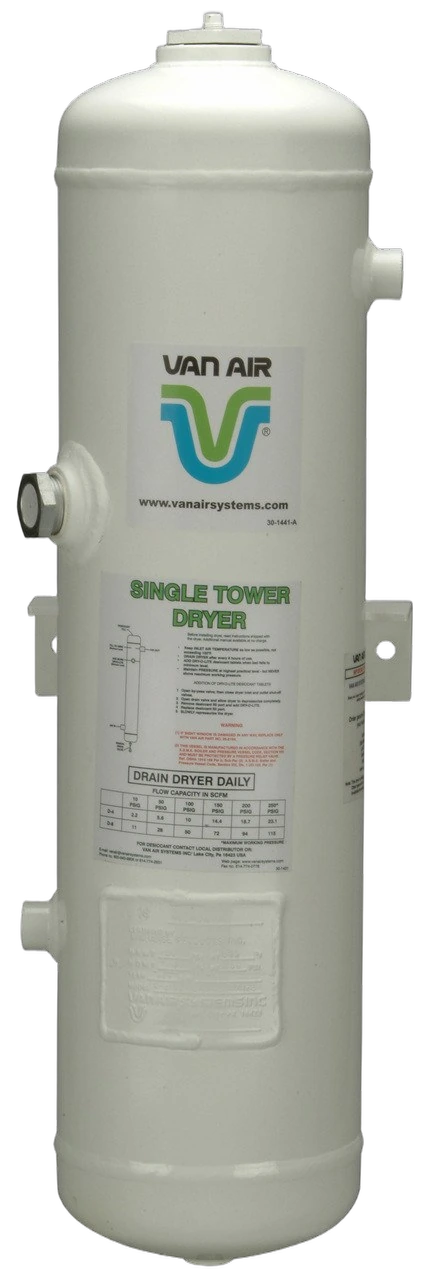

Van Air Systems D-50-3

Van Air Systems D-50-3 is a deliquescent compressed-air dryer rated at 50 SCFM, providing approximately 20°F of dewpoint suppression — typical pressure dewpoint around 75°F in summer service conditions. Maximum inlet pressure: 250 PSI; minimum: 50 PSI. Connections: 3/4 NPT female. Weight: 60 lbs. No electricity required; single-pass salt-bed design absorbs moisture through chemical reaction with deliquescent desiccant tablets. Lowest capital and operating cost of any dryer technology for remote or outdoor installations where sub-freezing dewpoint is not required. Salt cartridge replacement is the main recurring cost. Suitable for remote pneumatic tools, outdoor pipelines, and work sites without electrical power. Note: Van Air Systems D-series catalog uses alphanumeric suffixes by SCFM flow (e.g., D8 = 50 SCFM per Van Air documentation); D-50-3 does not appear in the verified series lineup and may encode a pressure or connection variant. Confirm current model number with Van Air Systems before ordering. Price: approximately ,890.

Flow
50 SCFM
Dew point
75 °F
Purge loss
0 %
Max PSI
250 PSI
Air output per kW inputNo flow/power on file
—SCFM/kW
Poor 40Typical 70Good 100
Pressure dew pointClass typical · deliquescent
75°F
Warmer +30°Class typ 50°FDrier −30°
Price per cubic foot · minuteVerified retailer price
$38$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow50 SCFM @ 250 PSI
Pressure dew point75°F
Purge loss0%
Rating conditions50 SCFM @ 100 psig; dew point suppression ~20°F below inlet temp when used with Dry-O-Lite desiccant
Regen cycleNone (deliquescent desiccant dissolves as it absorbs moisture; condensate manually drained; Dry-O-Lite tablets replenished 2-3x/year)
Best fitPipeline drying on outdoor compressed-air piping, sandblasting, remote or portable installations where no electricity is available
INLET & OPERATING CONDITIONS
Inlet PSI range50–250 PSI
Max inlet temp300°F
Max ambient130°F
Connections3/4 NPT (female)
ELECTRICAL & FORM
Electrical service—
Weight60 lb
Dimensions8.625×8.625×40.1875 in
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Brochureview · download PDF local copy

Where this sits in the catalog

Compared against 5 other deliquescent dryers in the catalog.

  • Flow capacity50scfm
    50 scfmmedian 175 scfm2,000 scfm
    -71.4% vs. median
  • Pressure dew point75°F
    60°Fmedian 60°F75°F
    +15°F vs. median
  • Purge loss0%
    0%median 0%1%
    0 pts vs. median
  • Price$1,890
    $1,890median $2,943$3,995
    -35.8% vs. median
Where this is sold2 verified retailers · USD
Find an installer / dealer near youAuthorized Van Air Systems dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$1,877$1,938$1,998$2,059avg $1,968today-10d-20d-30d
