Van Air Systems · DELIQUESCENT

D-100-3

100 SCFM · 60°F dew point · 250 PSI max
PRICE
Unverified
no price source on file

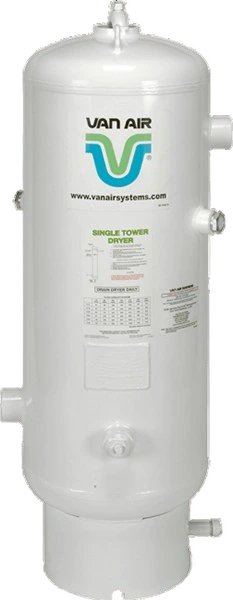

Van Air Systems D-100-3

Van Air Systems D-100-3 is a deliquescent compressed-air dryer delivering 100.00 SCFM, rated to 250 PSI maximum inlet pressure, achieving 60°F pressure dewpoint, via 1 NPT connections. Flow rating is measured at 100 psig / 80°F inlet (Dry-O-Lite). Maximum inlet temperature is 120°F. Drying mechanism: Single-tower deliquescent. Suited for pipeline, field, mining, and remote installations where electrical power is unavailable or where ATEX/NEC hazardous-area ratings are required. Specifications sourced from Van Air D-Series Compressor World (https://www.compressorworld.com/products/50616/van-air-systems-d-series-deliquescent-air-dryer).

Flow
100 SCFM
Dew point
60 °F
Purge loss
— %
Max PSI
250 PSI
Air output per kW inputNo flow/power on file
—SCFM/kW
Poor 40Typical 70Good 100
Pressure dew pointClass typical · deliquescent
60°F
Warmer +30°Class typ 50°FDrier −30°
Price per cubic foot · minuteNo price source on file
—$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow100 SCFM @ 250 PSI
Pressure dew point60°F
Rating conditions100 psig / 80°F inlet (Dry-O-Lite)
Regen cycleSingle-tower deliquescent
Best fitPassive deliquescent drying of compressed air (no electricity) for remote, outdoor, or hazardous-location service
INLET & OPERATING CONDITIONS
Inlet PSI rangeup to 250 PSI
Max inlet temp120°F
Connections1 NPT
ELECTRICAL & FORM
Amps0 A
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Brochureview · download PDF local copy

Where this sits in the catalog

Compared against 5 other deliquescent dryers in the catalog.

  • Flow capacity100scfm
    50 scfmmedian 175 scfm2,000 scfm
    -42.9% vs. median
  • Pressure dew point60°F
    60°Fmedian 60°F75°F
    0°F vs. median
Where this is soldPricing pending verification
