AVERAGE PRICE
$8,137
3 retailers · in stock

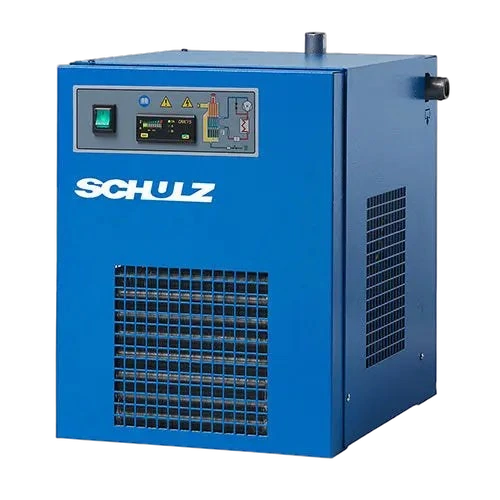

The Schulz ADS-375 is a 375-SCFM non-cycling refrigerated air dryer delivering a 41°F pressure dewpoint at up to 203 PSI. Running on 230V single-phase at 9.1A (2.09 kW) with R407C refrigerant, it handles inlet air to 100°F and ambient to 113°F. At 212 lbs with 2 in NPT-F connections, it suits high-demand industrial compressed air installations.
Flow
375 SCFM
Dew point
41 °F
Purge loss
— %
Max PSI
203 PSI
Air output per kW inputAirflow per kW input
179.4SCFM/kW
Poor 25Typical 40Good 60
Pressure dew pointClass typical · refrigerated · non-cycling
41°F
Warmer +30°Class typ 38°FDrier −30°
Price per cubic foot · minuteVerified retailer price
$18$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow375 SCFM @ 203 PSI
Pressure dew point41°F
Purge loss0% (no purge — refrigerated)
SCFM / kW179.4 SCFM/kW
Best fitGeneral shop and instrument air drying — 38°F dew point continuous
INLET & OPERATING CONDITIONS
Inlet PSI rangeup to 203 PSI
Max inlet temp100°F
Max ambient113°F
ELECTRICAL & FORM
Power2.09 kW
Electrical service230
RefrigerantR407C
Weight212 lb
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Electric · yearlyEst. $543
Manufacturer Brochure Pdfview · download PDF local copy
Where this sits in the catalog
Compared against 39 other refrigerated · non-cycling dryers in the catalog.
- Flow capacity375scfm10 scfmmedian 65 scfm480 scfm+476.9% vs. median
- Pressure dew point41°F37°Fmedian 39°F50°F+2°F vs. median
- Price$6,670$1,397median $2,793$10,952+138.8% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
Compressed Air Advisors
Heavy Duty Air
The Air Compressor Store
