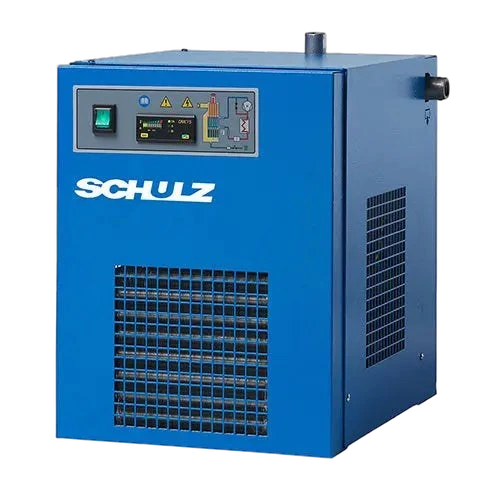

Schulz ADS-175 is a 175-SCFM non-cycling refrigerated air dryer rated to 203 PSI maximum working pressure with 41 deg F pressure dewpoint, accepting up to 100 deg F inlet air temperature. It operates on 115V 60Hz single-phase power using R-407C refrigerant, with a 1-1/2-in NPT-F connection and listed weight of 119 lbs. The ADS series from Schulz uses non-cycling refrigeration to maintain consistent downstream dewpoint without cycling losses, suited for industrial installations with variable compressed air demand. At 175 SCFM, the ADS-175 handles output from 30 to 40 HP rotary screw compressor packages in medium industrial applications. The 203 PSI working pressure covers standard plant air distribution. The 119 lb weight allows manageable installation without heavy-lift equipment. Authorized Schulz distributors supply the complete OEM datasheet and service parts documentation.
Where this sits in the catalog
Compared against 39 other refrigerated · non-cycling dryers in the catalog.
- Flow capacity175scfm10 scfmmedian 65 scfm480 scfm+169.2% vs. median
- Pressure dew point41°F37°Fmedian 39°F50°F+2°F vs. median
- Price$6,185$1,397median $2,793$10,952+121.4% vs. median
