AVERAGE PRICE
$2,485
2 retailers · in stock

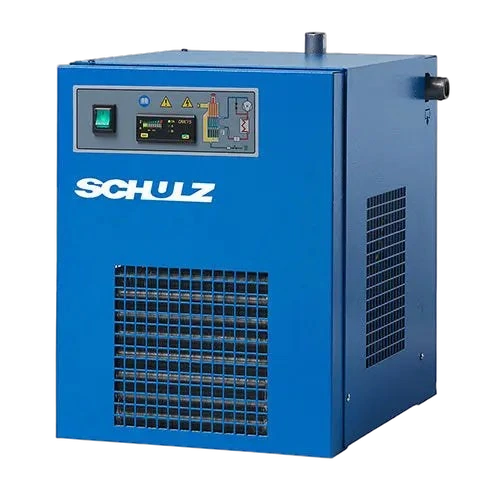

The Schulz ADS-100 is a 100-SCFM non-cycling refrigerated air dryer delivering a 41°F pressure dewpoint at up to 203 PSI. Running on 115V single-phase at 8.0A (0.92 kW), it handles inlet air to 100°F and ambient to 113°F. R134a refrigerant, 1 1/4 in NPT-F connections, and 86 lbs make it suited for mid-size shop and light-industrial compressor systems.
Flow
100 SCFM
Dew point
41 °F
Purge loss
— %
Max PSI
203 PSI
Air output per kW inputAirflow per kW input
108.7SCFM/kW
Poor 25Typical 40Good 60
Pressure dew pointClass typical · refrigerated · non-cycling
41°F
Warmer +30°Class typ 38°FDrier −30°
Price per cubic foot · minuteVerified retailer price
$25$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow100 SCFM @ 203 PSI
Pressure dew point41°F
Purge loss0% (no purge — refrigerated)
SCFM / kW108.7 SCFM/kW
Best fitGeneral shop and instrument air drying — 38°F dew point continuous
INLET & OPERATING CONDITIONS
Inlet PSI rangeup to 203 PSI
Max inlet temp100°F
Max ambient113°F
ELECTRICAL & FORM
Power0.92 kW
Electrical service115
RefrigerantR134a
Weight86 lb
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Electric · yearlyEst. $239
Manufacturer Brochure Pdfview · download PDF local copy
Where this sits in the catalog
Compared against 39 other refrigerated · non-cycling dryers in the catalog.
- Flow capacity100scfm10 scfmmedian 65 scfm480 scfm+53.8% vs. median
- Pressure dew point41°F37°Fmedian 39°F50°F+2°F vs. median
- Price$2,463$1,397median $2,793$10,952-11.8% vs. median
Where this is sold2 verified retailers · USD
Find an installer / dealer near youAuthorized Schulz dealers · search by ZIPPrice history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
