Quincy Compressor · QPNC · REFRIGERATED · NON-CYCLING

QPNC-30

30 SCFM · 39°F dew point · 232 PSI max · 0.20 kW
AVERAGE PRICE
$1,907
1 retailer

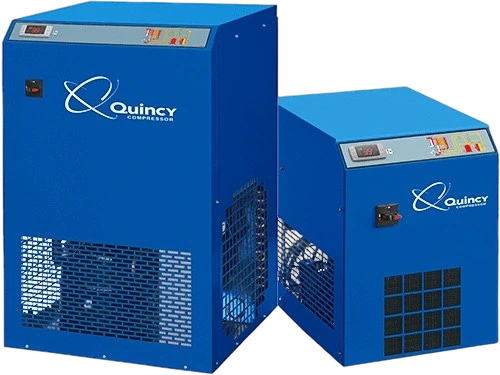

Quincy Compressor QPNC-30

Quincy Compressor QPNC-30 is a refrigerated non-cycling compressed-air dryer rated at 30 SCFM, delivering a 39°F pressure dew point at CAGI ADF200 reference conditions (100°F inlet, 100 psig, 100°F ambient). Maximum inlet pressure: 232 PSI; minimum: 60 PSI. Electrical: 115V / 60 Hz / 1-phase, 0.32 kW. Connections: 3/4 NPT. Weight: 95 lbs. Ambient temperature maximum: 122°F. Non-cycling refrigeration maintains constant refrigerant-circuit operation regardless of load; suited for light-duty shop air paired with a 5 HP compressor. Purge loss: 0%. Part of the Quincy QPNC series (manufactured by Atlas Copco). Dealer network pricing; contact a Quincy distributor for current availability.

Flow
30 SCFM
Dew point
39 °F
Purge loss
— %
Max PSI
232 PSI
Air output per kW inputAirflow per kW input
150SCFM/kW
Poor 25Typical 40Good 60
Pressure dew pointClass typical · refrigerated · non-cycling
39°F
Warmer +30°Class typ 38°FDrier −30°
Price per cubic foot · minuteVerified retailer price
$64$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow30 SCFM @ 232 PSI
Pressure dew point39°F
Purge loss0% (no purge — refrigerated)
SCFM / kW150 SCFM/kW
Rating conditions100 psig / 100°F inlet / 100°F ambient (CAGI ADF400)
Best fitGeneral shop and instrument air drying — 38°F dew point continuous
INLET & OPERATING CONDITIONS
Inlet PSI rangeup to 232 PSI
Max inlet temp122°F
Connections1/2″ NPT (M)
ELECTRICAL & FORM
Power0.20 kW
Electrical service115V 60Hz 1-Ph
RefrigerantR513a
Weight60 lb
Dimensions19 L x 14 W x 18 H in
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Electric · yearlyEst. $52
Datasheetview · download PDF local copy

Where this sits in the catalog

Compared against 39 other refrigerated · non-cycling dryers in the catalog.

  • Flow capacity30scfm
    10 scfmmedian 65 scfm480 scfm
    -53.8% vs. median
  • Pressure dew point39°F
    37°Fmedian 39°F50°F
    0°F vs. median
  • Price$1,907
    $1,397median $2,793$10,952
    -31.7% vs. median
Where this is sold1 verified retailer · USD
Find an installer / dealer near youAuthorized Quincy Compressor dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$1,812$1,875$1,939$2,002avg $1,907today-10d-20d-30d
