QED-65

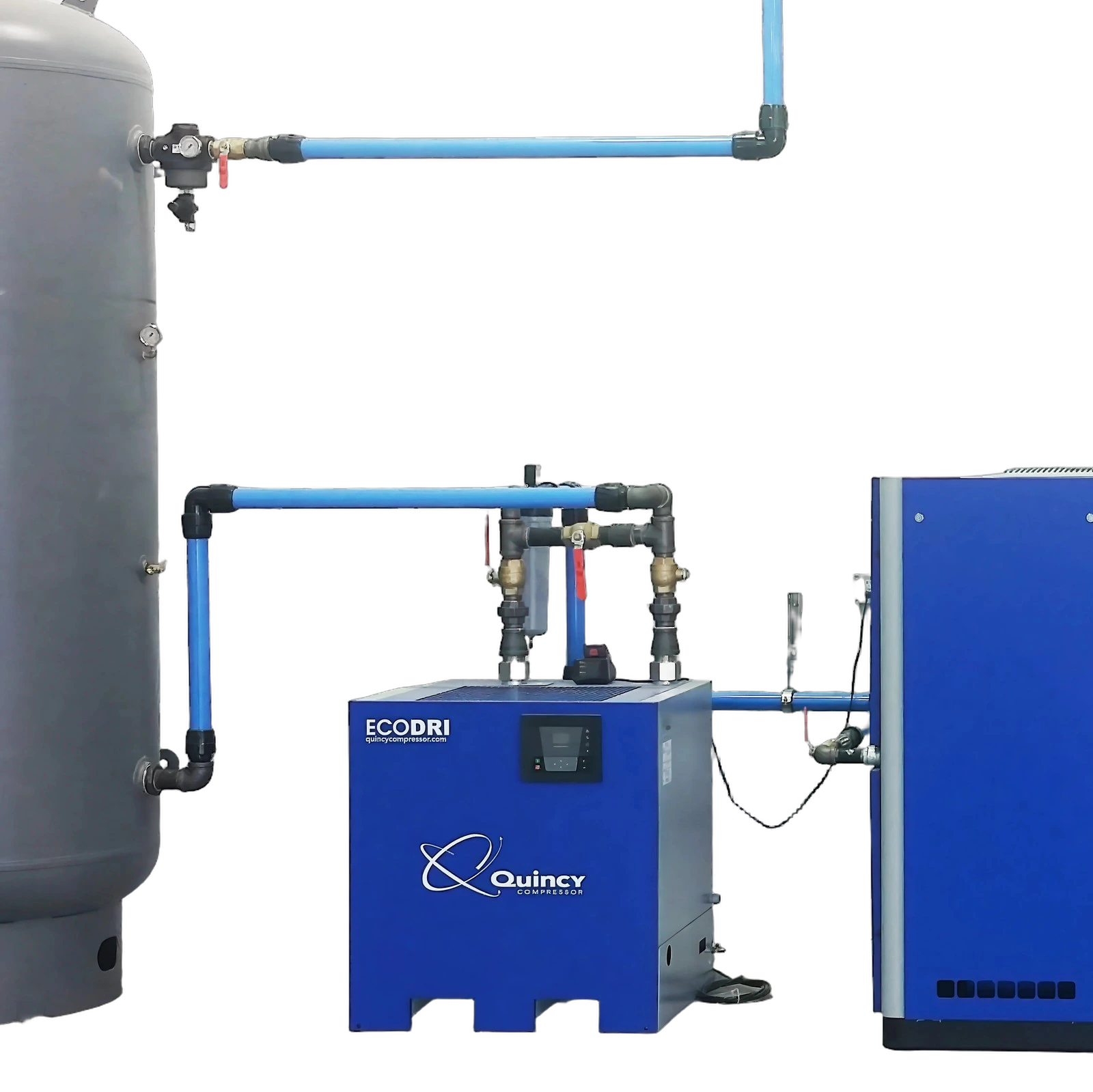

Quincy QED-65 (Eco-Dri) is a 65-SCFM cycling refrigerated air dryer rated to 232 PSI with a 38 deg F pressure dewpoint, 120 deg F maximum inlet temperature, on 115V 60Hz single-phase R134a, with a 3/4 in NPT air connection. Weight is 97 lb and list price is $4,141.20. Cycling dryers modulate refrigerant compressor speed or cycle on/off to match actual compressed air flow, delivering meaningful energy savings over non-cycling designs at partial load — the Quincy QED Eco-Dri series is optimized for facilities where demand varies significantly during the day. The 65-SCFM rating serves compressors up to approximately 15 HP. An OEM product brochure (PDF) is available from the Quincy Compressor website for full installation and service data.
