Quincy Compressor · QED · REFRIGERATED · CYCLING

QED-30

30 SCFM · 38°F dew point · 232 PSI max · 0.23 kW
AVERAGE PRICE
$2,790
1 retailer

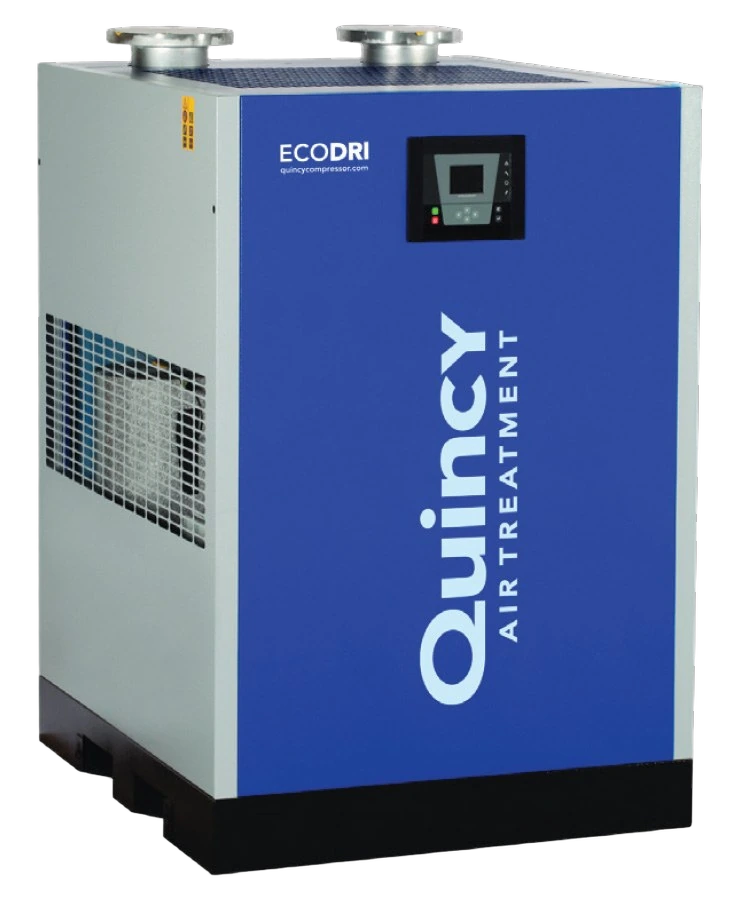

Quincy Compressor QED-30

Quincy Compressor QED-30 is a refrigerated cycling compressed-air dryer rated at 30 SCFM, delivering a 38°F pressure dew point at CAGI ADF200 reference conditions. Maximum inlet pressure: 232 PSI; minimum: 60 PSI. Electrical: 115V 60Hz 1-phase, kW not confirmed. Connections: 3/4 NPT. Weight: weight not confirmed in available sources. Ambient temperature maximum: 122°F. Cycling refrigeration modulates the compressor to match load, delivering energy savings at part-load versus non-cycling designs; suited for shop air on a 5-7.5 HP compressor. Purge loss: 0%. Part of the Quincy QED series (Atlas Copco). Contact a Quincy distributor for current pricing and availability.

Flow
30 SCFM
Dew point
38 °F
Purge loss
— %
Max PSI
232 PSI
Air output per kW inputAirflow per kW input
130.4SCFM/kW
Poor 30Typical 50Good 75
Pressure dew pointClass typical · refrigerated · cycling
38°F
Warmer +30°Class typ 38°FDrier −30°
Price per cubic foot · minuteVerified retailer price
$93$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow30 SCFM @ 232 PSI
Pressure dew point38°F
Purge loss0% (no purge — refrigerated)
SCFM / kW130.4 SCFM/kW
Rating conditions100 psig / 100°F inlet / 100°F ambient
Best fitGeneral shop air drying with energy savings at part-load
INLET & OPERATING CONDITIONS
Inlet PSI rangeup to 232 PSI
Max inlet temp122°F
Max ambient110°F
Connections3/4″ NPT
ELECTRICAL & FORM
Power0.23 kW
Electrical service115V 60Hz 1-Ph
RefrigerantR134a
Weight93 lb
Dimensions21 L x 15 W x 18 H in
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Electric · yearlyEst. $60
Datasheetview · download PDF local copy

Where this sits in the catalog

Compared against 15 other refrigerated · cycling dryers in the catalog.

  • Flow capacity30scfm
    10 scfmmedian 50 scfm200 scfm
    -40% vs. median
  • Pressure dew point38°F
    38°Fmedian 38°F39°F
    0°F vs. median
  • Price$2,790
    $2,052median $4,141$8,633
    -32.6% vs. median
Where this is sold1 verified retailer · USD
Find an installer / dealer near youAuthorized Quincy Compressor dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$2,650$2,743$2,836$2,929avg $2,790today-10d-20d-30d
Compressor World
