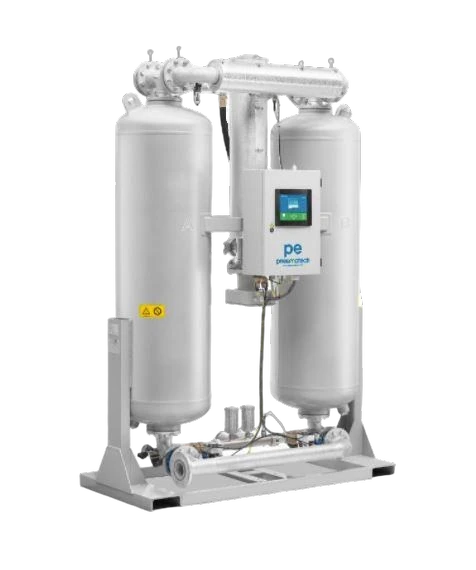

Pneumatech PE-850 is a desiccant heated compressed-air dryer rated at 850 SCFM. Pressure dew point -40°F. Maximum inlet pressure 165 PSI. Connections: 3 NPT.
Flow
850 SCFM
Dew point
-40 °F
Purge loss
7 %
Max PSI
165 PSI
Air output per kW inputAirflow per kW input
107.6SCFM/kW
Poor 35Typical 55Good 80
Pressure dew pointClass typical · desiccant · heated
-40°F
Warmer +30°Class typ -40°FDrier −30°
Price per cubic foot · minuteNo price source on file
—$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow850 SCFM @ 165 PSI
Pressure dew point-40°F
Purge loss7%
SCFM / kW107.6 SCFM/kW
Rating conditions100 psig / 100°F inlet / 100°F ambient
Regen cycleExternally heated regen, low-purge
Best fitLower-purge desiccant drying to −40°F dew point
INLET & OPERATING CONDITIONS
Inlet PSI rangeup to 165 PSI
Max inlet temp100°F
Connections3 NPT
ELECTRICAL & FORM
Power7.90 kW
Electrical service460V 60Hz 3-Ph
Weight2300 lb
Dimensions47 x 76 x 106 in
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Electric · yearlyEst. $2,054
Purge cost · yearlyEst. $3,570
Datasheetview · download PDF local copy
Where this sits in the catalog
Compared against 4 other desiccant · heated dryers in the catalog.
- Flow capacity850scfm212 scfmmedian 1,220 scfm3,000 scfm-30.3% vs. median
- Pressure dew point-40°F-40°Fmedian -40°F-39°F0°F vs. median
- Purge loss7%0%median 7%7%0 pts vs. median
