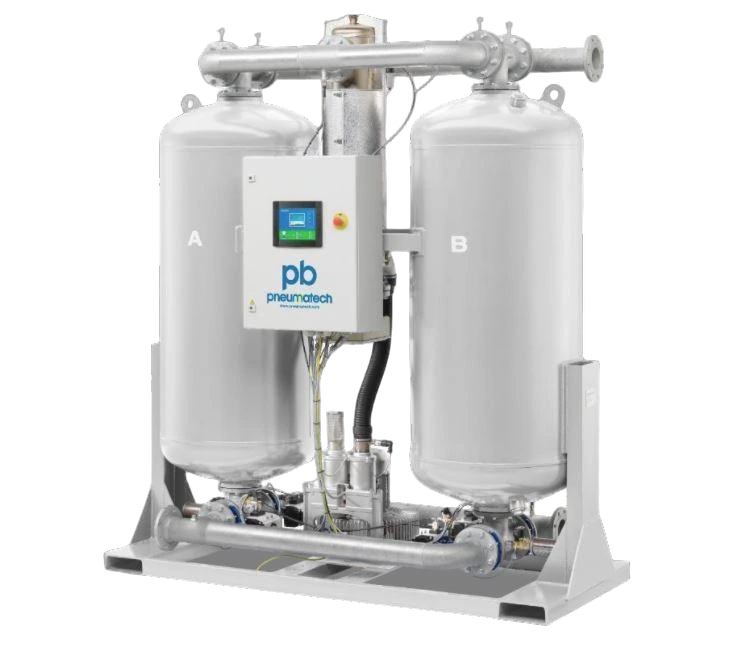

Pneumatech PB-530 HE is a desiccant blower purge compressed-air dryer rated at 530 SCFM. Pressure dew point -40°F. Maximum inlet pressure 232 PSI. Connections: 2 NPT.
Flow
530 SCFM
Dew point
-40 °F
Purge loss
2 %
Max PSI
232 PSI
Air output per kW inputAirflow per kW input
56.1SCFM/kW
Poor 45Typical 75Good 110
Pressure dew pointClass typical · desiccant · blower purge
-40°F
Warmer +30°Class typ -40°FDrier −30°
Price per cubic foot · minuteNo price source on file
—$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow530 SCFM @ 232 PSI
Pressure dew point-40°F
Purge loss2%
SCFM / kW56.1 SCFM/kW
Rating conditions100 psig / 100°F inlet / 100°F ambient (rated at -40°F PDP)
Regen cycleBlower purge
Best fitLow-purge desiccant drying for large continuous loads
INLET & OPERATING CONDITIONS
Inlet PSI rangeup to 232 PSI
Max inlet temp100°F
Max ambient113°F
Connections2 NPT
ELECTRICAL & FORM
Power9.44 kW
Electrical service460V 60Hz 3-Ph
Weight1413 lb
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Electric · yearlyEst. $2,454
Purge cost · yearlyEst. $636
Datasheetview · download PDF local copy
Where this sits in the catalog
Compared against 5 other desiccant · blower purge dryers in the catalog.
- Flow capacity530scfm170 scfmmedian 381.5 scfm3,400 scfm+38.9% vs. median
- Pressure dew point-40°F-100°Fmedian -70°F-40°F+30°F vs. median
- Purge loss2%2%median 2%3%0 pts vs. median
