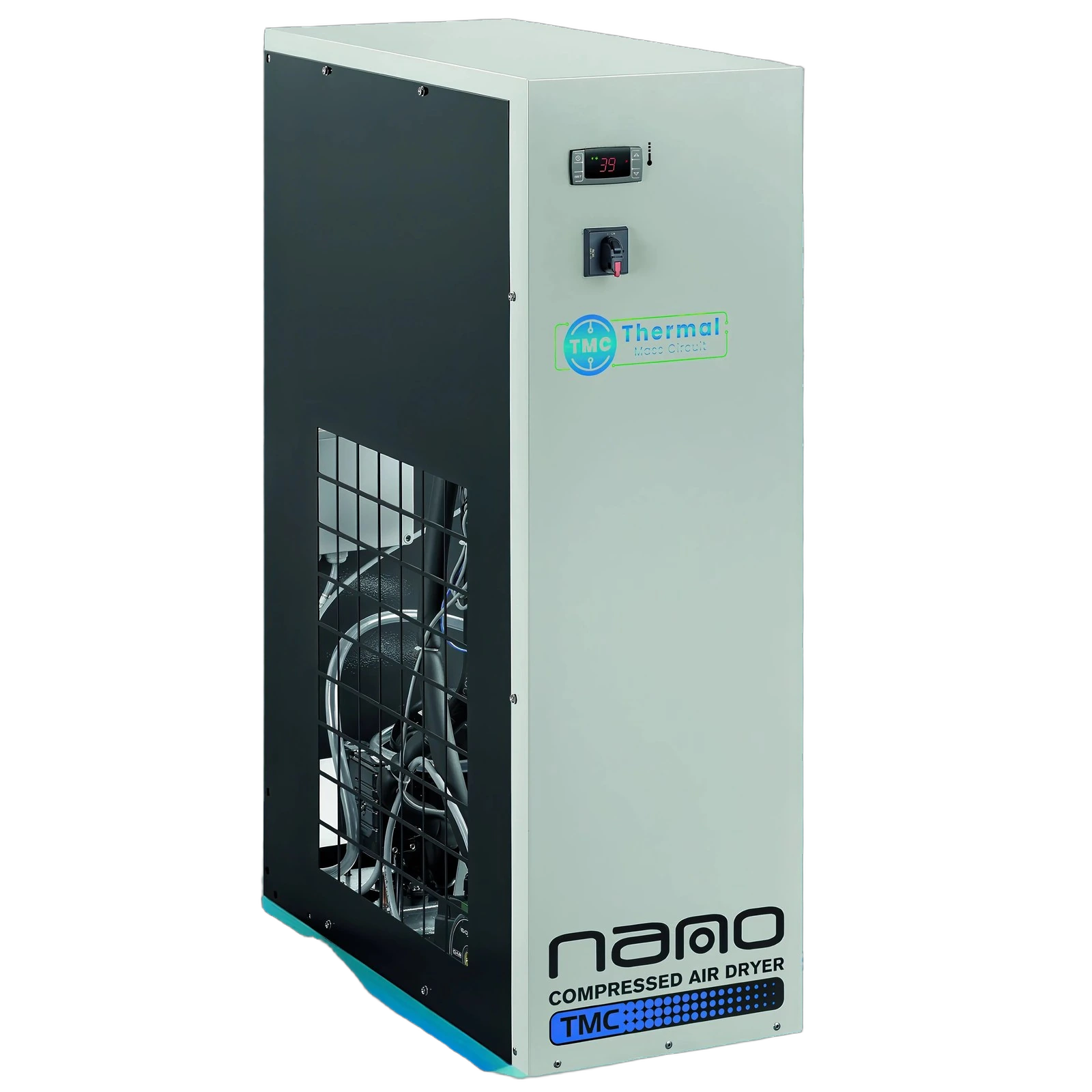

nano TMC0105N-115601 is a thermal mass cycling (TMC) refrigerated air dryer rated for a 37 deg F pressure dewpoint, operating on 115V/1-phase/60 Hz power and drawing 0.96 kW. The unit weighs 121 lbs and accepts inlet air up to 140 deg F with a maximum ambient temperature of 104 deg F. The TMC series stores cold mass in a thermal reservoir, allowing the refrigerant compressor to cycle off during low-demand periods while maintaining stable dewpoint performance. The 0105 capacity class in the model number identifies this unit as a step up from the TMC0075N in the nano TMC line. Retail pricing is approximately $4,500 through authorized distributors; dealer quotes are available for volume or project orders. Buyers should confirm rated SCFM flow against system demand using the OEM datasheet and verify 115V single-phase site power before ordering. An aftercooler upstream is recommended to ensure inlet air stays below the 140 deg F maximum. nano purification supports this dryer through its authorized distribution network.
Where this sits in the catalog
Compared against 124 other air dryer dryers in the catalog.
- Flow capacity105scfm7 scfmmedian 75 scfm2,500 scfm+40% vs. median
- Pressure dew point41°F36°Fmedian 38°F50°F+3°F vs. median
- Price$4,500$852median $11,263$38,727-60% vs. median
