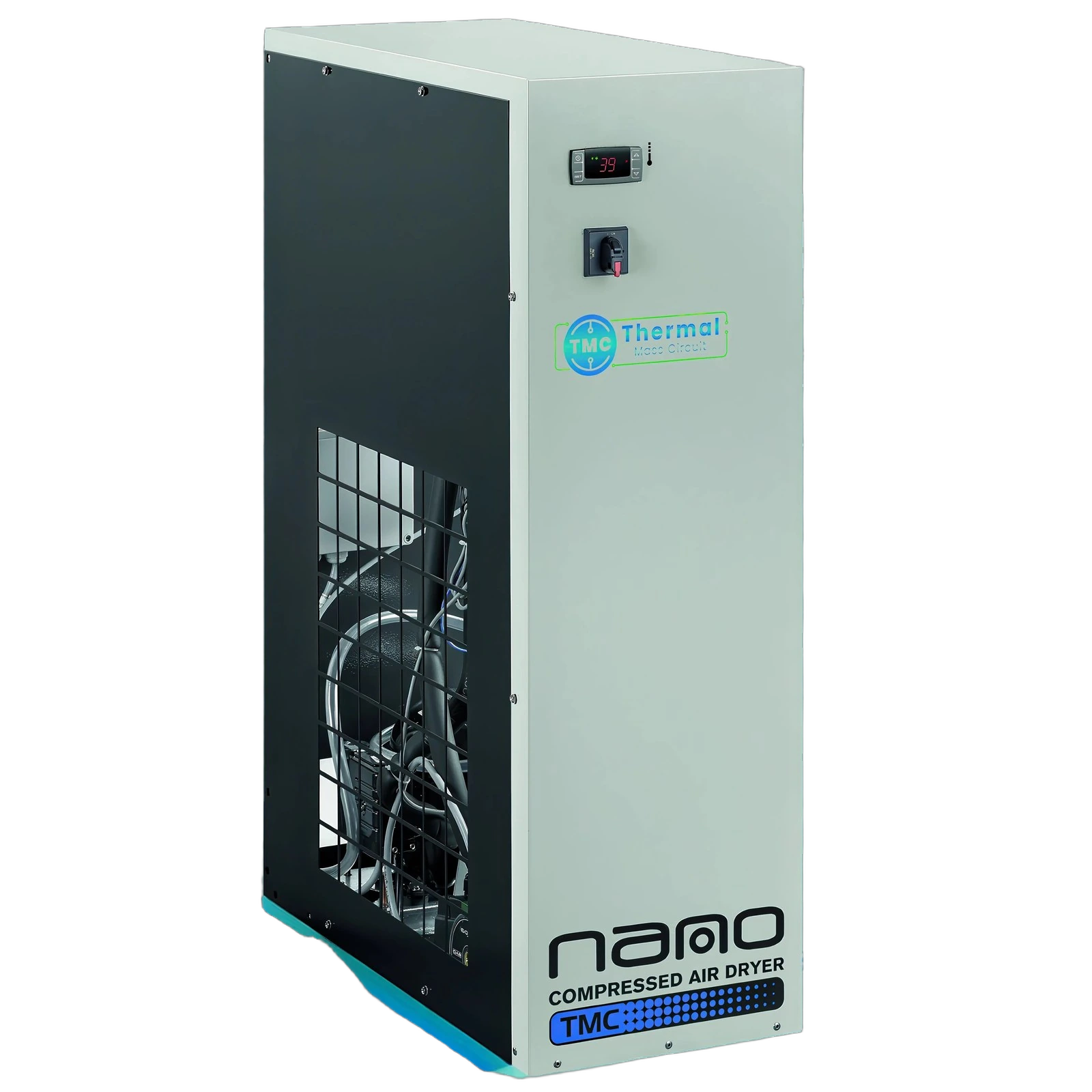

nano TMC0055N-115601 is a thermal-mass cycling refrigerated air dryer delivering 500 SCFM on 115V power, achieving a pressure dewpoint of 37 deg F (3 deg C) and meeting ISO 8573-1 Class 4 moisture classification. The unit weighs 121 lbs and draws 0.96 kW (960W) during operation. It accepts inlet air temperatures up to 140 deg F and ambient temperatures up to 104 deg F. The TMC (Thermal Mass Cycling) design stores cooling energy in a thermal mass medium and cycles the refrigerant compressor on demand rather than continuously, reducing energy consumption during low-demand periods compared to non-cycling designs. At 500 SCFM, this dryer is suited for 75-150 HP rotary screw compressors serving medium-to-large compressed air distribution systems. List price is approximately $3,000 through authorized nano distributors. Locate authorized service and installation partners through the installer directory on this site.
Where this sits in the catalog
Compared against 124 other air dryer dryers in the catalog.
- Flow capacity55scfm7 scfmmedian 75 scfm2,500 scfm-26.7% vs. median
- Pressure dew point41°F36°Fmedian 38°F50°F+3°F vs. median
- Price$3,000$852median $11,263$38,727-73.4% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
