Mikropor · MMD · MEMBRANE

MMD-P-30

30 SCFM · -40°F dew point · 232 PSI max
PRICE
Unverified
no price source on file

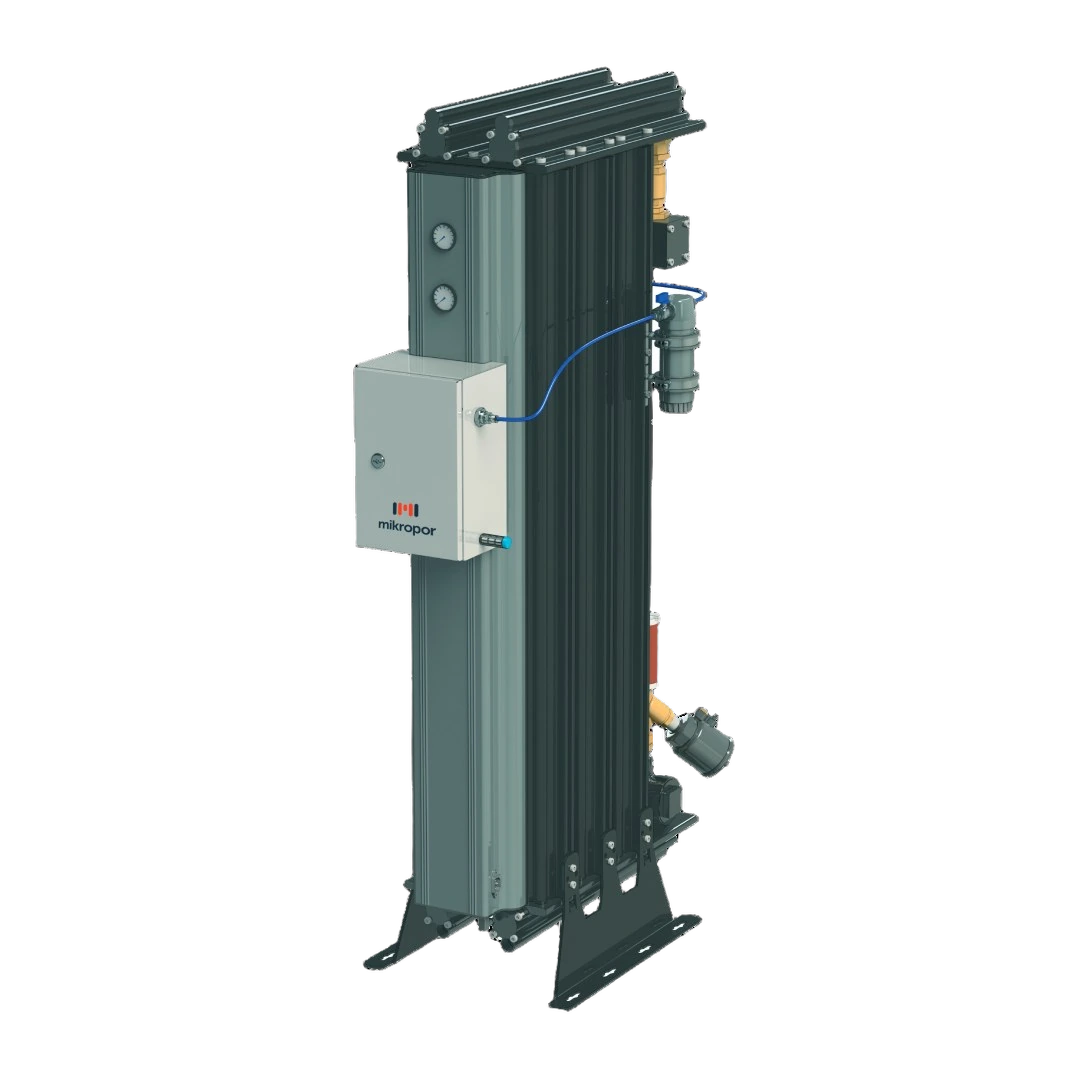

Mikropor MMD-P-30

Mikropor MMD-P-30 is a membrane compressed-air dryer delivering 30.00 SCFM, rated to 232 PSI maximum inlet pressure, achieving -40°F pressure dewpoint, via 3/4 NPT connections. Flow rating is measured at 100 psig / 100°F inlet. Maximum inlet temperature is 122°F. Maximum ambient temperature is 77°F. Typical applications include point-of-use drying for pneumatic instruments, painting, and laboratory air where a compact no-power dryer is required. Specifications sourced from Mikropor MMD-P series (https://www.mikroporamerica.com/products-2/compressed-air-treatment/compressed-air-dryers/mmd-p-series/).

Flow
30 SCFM
Dew point
-40 °F
Purge loss
— %
Max PSI
232 PSI
Air output per kW inputNo flow/power on file
—SCFM/kW
Poor 25Typical 40Good 60
Pressure dew pointClass typical · membrane
-40°F
Warmer +30°Class typ 35°FDrier −30°
Price per cubic foot · minuteNo price source on file
—$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow30 SCFM @ 232 PSI
Pressure dew point-40°F
Rating conditions100 psig / 100°F inlet
Best fitPoint-of-use drying for pneumatic instruments, spray painting, and laboratory air
INLET & OPERATING CONDITIONS
Inlet PSI rangeup to 232 PSI
Max inlet temp122°F
Max ambient77°F
Connections3/4 NPT
ELECTRICAL & FORM
Electrical service220
Amps0 A
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Brochureview · download PDF local copy

Where this sits in the catalog

Compared against 8 other membrane dryers in the catalog.

  • Flow capacity30scfm
    0 scfmmedian 8 scfm30 scfm
    +275% vs. median
  • Pressure dew point-40°F
    -40°Fmedian -40°F-39°F
    0°F vs. median
Where this is soldPricing pending verification
