What is the flow rating of the Mikropor MKE-100 air dryer?

The Mikropor MKE-100 is rated at 58 SCFM.

What type of air dryer is the Mikropor MKE-100?

The Mikropor MKE-100 is a Refrigerated Non Cycling air dryer.

What pressure dewpoint does the Mikropor MKE-100 achieve?

The Mikropor MKE-100 achieves a pressure dewpoint of 37°F.

What voltage does the Mikropor MKE-100 require?

The Mikropor MKE-100 runs on 230V 50Hz 1-Ph.

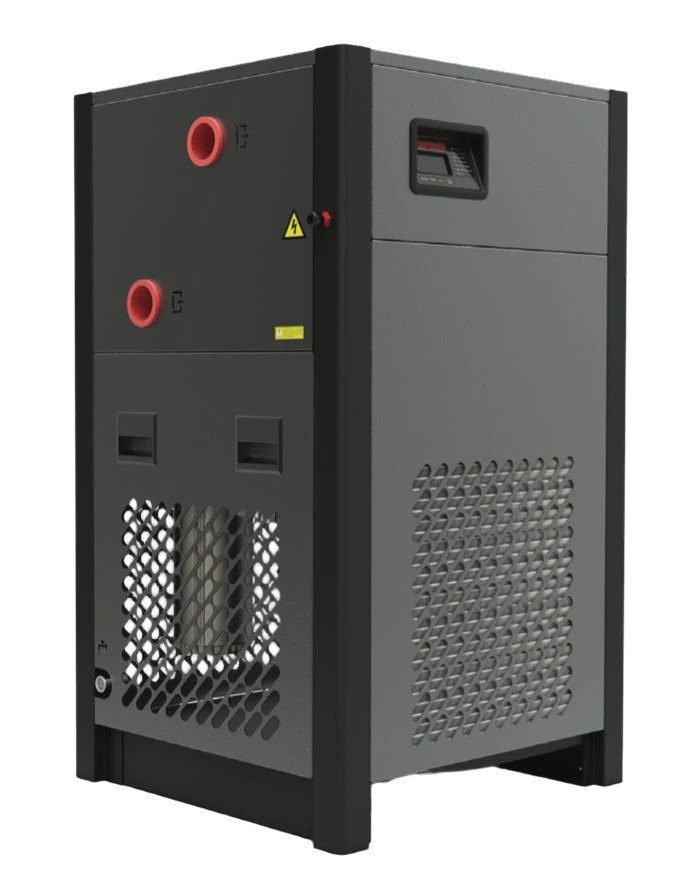

Mikropor MKE-100

Mikropor MKE-100 is a refrigerated non-cycling compressed-air dryer rated at 58 SCFM at standard inlet conditions, delivering a 37°F pressure dew point. Maximum inlet pressure is 232 PSI. Electrical requirements are 230V / 50 Hz / single-phase with 0.49 kW power consumption — the 50 Hz rating indicates a European-frequency model; confirm compatibility with your power supply before purchase. The unit weighs 112 lbs and connects via 3/4 BSPP port. As a non-cycling refrigerated dryer, the MKE-100 continuously operates its refrigeration circuit for consistent moisture removal in light-to-medium industrial, workshop, and process compressed-air applications. Mikropor is a Turkish manufacturer of compressed-air treatment equipment with global distribution. A factory datasheet is available confirming flow and dewpoint ratings. Contact an authorized Mikropor distributor for current pricing, lead time, and availability for your region.

Flow

58 SCFM

Dew point

37 °F

Purge loss

— %

Max PSI

232 PSI

Air output per kW inputAirflow per kW input

118.4SCFM/kW

Poor 25Typical 40Good 60

Pressure dew pointClass typical · refrigerated · non-cycling

37°F

Warmer +30°Class typ 38°FDrier −30°

Price per cubic foot · minuteNo price source on file

—$/SCFM

Good $180Typical $280High $420

PERFORMANCE

Catalog flow58 SCFM @ 232 PSI

Pressure dew point37°F

Purge loss0% (no purge — refrigerated)

SCFM / kW118.4 SCFM/kW

Rating conditions100 psig / 100°F inlet / 100°F ambient

Best fitContinuous moisture removal for shop and light-industrial compressed-air systems

INLET & OPERATING CONDITIONS

Inlet PSI rangeup to 232 PSI

Max inlet temp122°F

Max ambient105°F

Connections3/4 BSPP

ELECTRICAL & FORM

Power0.49 kW

Electrical service230V 50Hz 1-Ph

RefrigerantR-134a

Weight112 lb

COST & OWNERSHIP

Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.

Electric · yearlyEst. $127

Brochureview · download PDF local copy

Where this sits in the catalog

Compared against 39 other refrigerated · non-cycling dryers in the catalog.

Flow capacity58scfm
10 scfmmedian 65 scfm480 scfm
-10.8% vs. median
Pressure dew point37°F
37°Fmedian 39°F50°F
-2°F vs. median
