Mikropor · MH · REFRIGERATED · NON-CYCLING

MH-US-50

50 SCFM · 38°F dew point · 230 PSI max · 0.32 kW
PRICE
Unverified
no price source on file

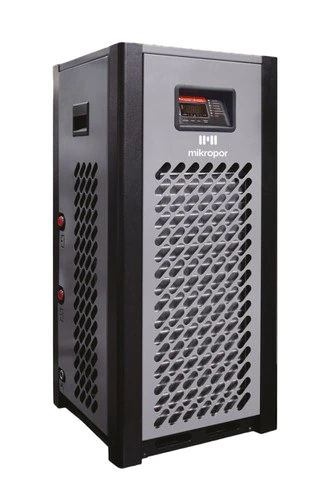

Mikropor MH-US-50

Mikropor MH-US-50 is a refrigerated non-cycling compressed-air dryer rated at 50 SCFM at standard inlet conditions, delivering a 38°F pressure dew point. Maximum inlet pressure is 230 PSI. Electrical requirements are 115V / 60 Hz / single-phase with 0.32 kW power consumption — the US-suffix model designation confirms this is configured for North American 60 Hz power. The unit weighs 150 lbs and connects via 3/4 NPT port. As a non-cycling refrigerated dryer, the MH-US-50 continuously operates its refrigeration circuit for consistent moisture removal suited to steady compressed-air demand in workshops, light manufacturing, and automotive service applications. Mikropor is a Turkish manufacturer of compressed-air treatment equipment with global distribution, and the MH-US line is specifically configured for North American markets. A factory datasheet is available confirming flow and dewpoint ratings. Contact an authorized Mikropor distributor for current pricing and availability.

Flow
50 SCFM
Dew point
38 °F
Purge loss
— %
Max PSI
230 PSI
Air output per kW inputAirflow per kW input
156.3SCFM/kW
Poor 25Typical 40Good 60
Pressure dew pointClass typical · refrigerated · non-cycling
38°F
Warmer +30°Class typ 38°FDrier −30°
Price per cubic foot · minuteNo price source on file
—$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow50 SCFM @ 230 PSI
Pressure dew point38°F
Purge loss0% (no purge — refrigerated)
SCFM / kW156.3 SCFM/kW
Rating conditions100 psig / 100°F inlet (high-temp variant up to 180°F inlet)
Best fitHigh-temperature compressed-air drying directly downstream of a compressor (no aftercooler required)
INLET & OPERATING CONDITIONS
Inlet PSI rangeup to 230 PSI
Max inlet temp180°F
Max ambient120°F
Connections3/4 NPT
ELECTRICAL & FORM
Power0.32 kW
Electrical service115V 60Hz 1-Ph
RefrigerantR-134a
Weight150 lb
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Electric · yearlyEst. $83
Datasheetview · download PDF local copy

Where this sits in the catalog

Compared against 39 other refrigerated · non-cycling dryers in the catalog.

  • Flow capacity50scfm
    10 scfmmedian 65 scfm480 scfm
    -23.1% vs. median
  • Pressure dew point38°F
    37°Fmedian 39°F50°F
    -1°F vs. median
