Ingersoll Rand · IR · AIR DRYER

IR-DB127INA100G

75 SCFM · 50°F dew point · 200 PSI max · 1.10 kW
AVERAGE PRICE
$4,153
1 retailer

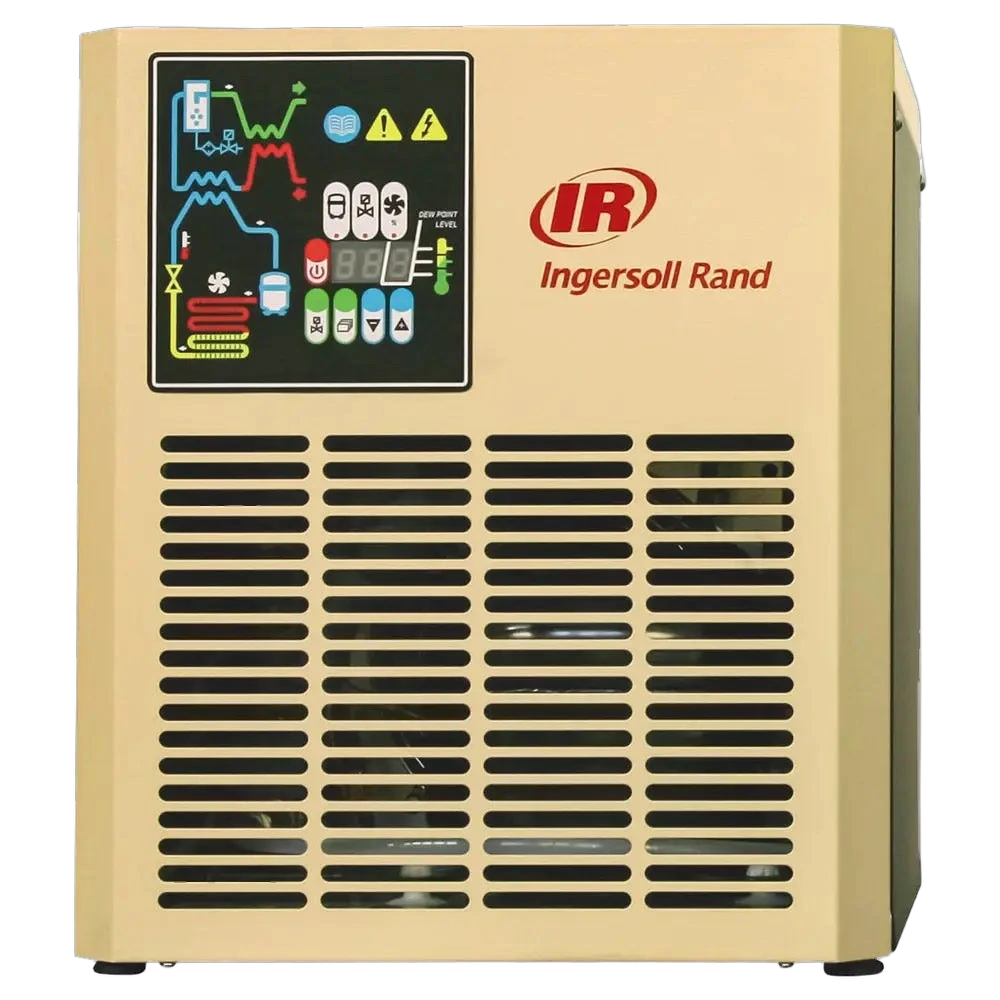

Ingersoll Rand IR-DB127INA100G

Ingersoll Rand DB127INA100G is a non-cycling refrigerated air dryer rated at 75 SCFM (127 m3/h), delivering a 50 deg F pressure dew point at ISO conditions. Electrical: 115V / 1-phase / 60 Hz. Air connection: 3/4-inch FPT. Maximum inlet pressure: 200 PSIG. Maximum inlet temperature: 120 deg F. Weight: 240 lbs. Uses R-513A low-GWP refrigerant. Integrated moisture separator with electronic automatic drain. Primary use: industrial shop air and light manufacturing with high-flow demand.

Flow
75 SCFM
Dew point
50 °F
Purge loss
— %
Max PSI
200 PSI
Air output per kW inputAirflow per kW input
68.2SCFM/kW
Poor 30Typical 50Good 70
Pressure dew pointClass typical · air dryer
50°F
Warmer +30°Class typ 38°FDrier −30°
Price per cubic foot · minuteVerified retailer price
$55$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow75 SCFM @ 200 PSI
Pressure dew point50°F
Purge loss0% (no purge — refrigerated)
SCFM / kW68.2 SCFM/kW
Best fitIndustrial compressed air drying for 75 SCFM systems requiring consistent 50 deg F pressure dewpoint
INLET & OPERATING CONDITIONS
Inlet PSI rangeup to 200 PSI
Max inlet temp120°F
Max ambient115°F
ELECTRICAL & FORM
Power1.10 kW
Electrical service115
Weight240 lb
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Electric · yearlyEst. $286

Where this sits in the catalog

Compared against 124 other air dryer dryers in the catalog.

  • Flow capacity75scfm
    7 scfmmedian 75 scfm2,500 scfm
    0% vs. median
  • Pressure dew point50°F
    36°Fmedian 38°F50°F
    +12°F vs. median
  • Price$4,153
    $852median $11,263$38,727
    -63.1% vs. median
Where this is sold1 verified retailer · USD
Find an installer / dealer near youAuthorized Ingersoll Rand dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$3,945$4,084$4,222$4,361avg $4,153today-10d-20d-30d
