AVERAGE PRICE
$2,290
1 retailer

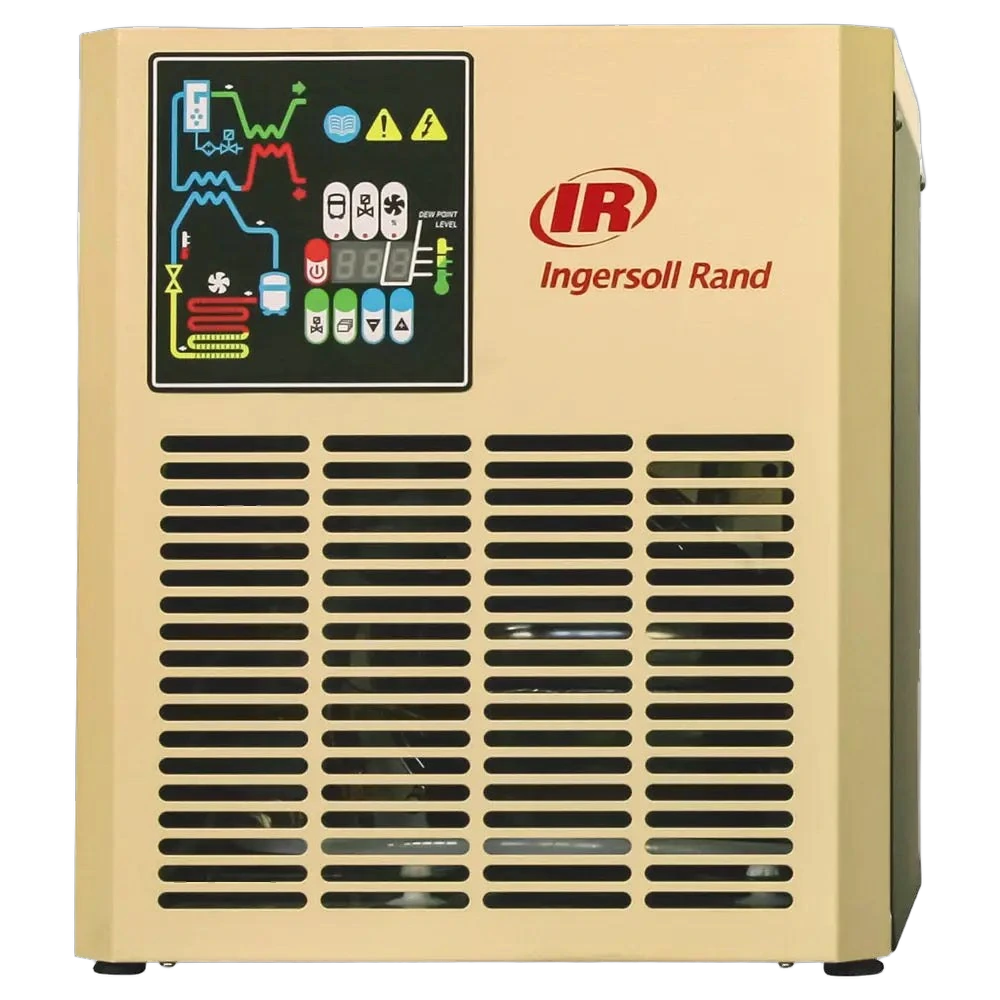

Ingersoll Rand DA54INA100 is a non-cycling refrigerated air dryer rated at 32 SCFM, delivering a 37 deg F pressure dew point at standard conditions. Electrical: 115V / 60 Hz / 1-phase, 0.33 kW. Air connection: 1/2-inch FPT. Dimensions: 15.4 x 16.9 x 17.5 inches. Weight: 58 lbs. Uses eco-friendly R-513A refrigerant. Primary use: production line air and machining center supply with medium flow demand.
Flow
32 SCFM
Dew point
37 °F
Purge loss
— %
Max PSI
232 PSI
Air output per kW inputAirflow per kW input
97SCFM/kW
Poor 30Typical 50Good 70
Pressure dew pointClass typical · air dryer
37°F
Warmer +30°Class typ 38°FDrier −30°
Price per cubic foot · minuteVerified retailer price
$72$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow32 SCFM @ 232 PSI
Pressure dew point37°F
Purge loss0% (no purge — refrigerated)
SCFM / kW97 SCFM/kW
Best fitShop air and industrial applications requiring up to 32 SCFM of dried air at 37 deg F pressure dewpoint
INLET & OPERATING CONDITIONS
Inlet PSI rangeup to 232 PSI
Connections1/2 FPT
ELECTRICAL & FORM
Power0.33 kW
Electrical service115
Weight58 lb
Dimensions15.4×16.9×17.5 in
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Electric · yearlyEst. $86
Where this sits in the catalog
Compared against 124 other air dryer dryers in the catalog.
- Flow capacity32scfm7 scfmmedian 75 scfm2,500 scfm-57.3% vs. median
- Pressure dew point37°F36°Fmedian 38°F50°F-1°F vs. median
- Price$2,290$852median $11,263$38,727-79.7% vs. median
Where this is sold1 verified retailer · USD
Find an installer / dealer near youAuthorized Ingersoll Rand dealers · search by ZIPPrice history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
