Ingersoll Rand · DA · REFRIGERATED · CYCLING

DA85EC

50 SCFM · 38°F dew point · 232 PSI max · 0.42 kW
PRICE
Unverified
no price source on file

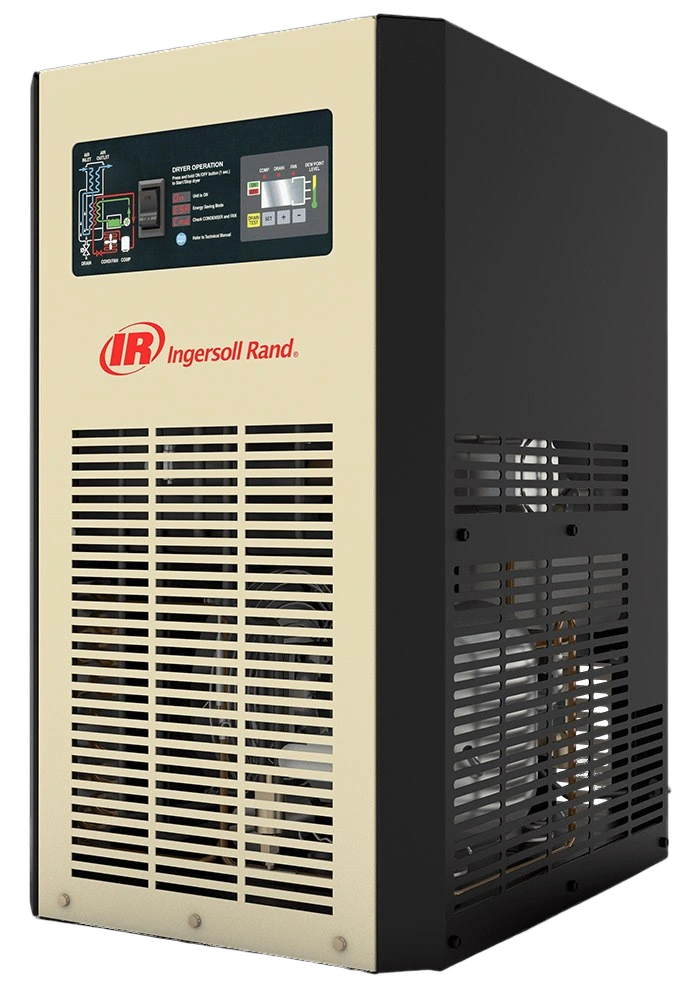

Ingersoll Rand DA85EC

Ingersoll Rand DA85EC is a refrigerated cycling compressed-air dryer rated at 50 SCFM, delivering a 38°F pressure dew point at standard CAGI conditions. Maximum inlet pressure: 232 PSI; minimum: 60 PSI. Electrical: 115V 60Hz 1-phase, 0.42 kW. Connections: 3/4 NPT. Weight: 70 lbs. Ambient temperature maximum: 122°F. Energy-cycling refrigeration modulates compressor operation to match air demand, saving energy at part-load versus non-cycling designs. Suited for shop air on a 10 HP compressor. Purge loss: 0%. Part of the Ingersoll Rand D-EC / DA-EC compact dryer line. Contact an authorized Ingersoll Rand distributor for current pricing and availability.

Flow
50 SCFM
Dew point
38 °F
Purge loss
— %
Max PSI
232 PSI
Air output per kW inputAirflow per kW input
119SCFM/kW
Poor 30Typical 50Good 75
Pressure dew pointClass typical · refrigerated · cycling
38°F
Warmer +30°Class typ 38°FDrier −30°
Price per cubic foot · minuteNo price source on file
—$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow50 SCFM @ 232 PSI
Pressure dew point38°F
Purge loss0% (no purge — refrigerated)
SCFM / kW119 SCFM/kW
Rating conditions100 psig / 100°F inlet / 100°F ambient
Best fitProduction line air supply with variable demand; thermal-mass cycling reduces energy vs non-cycling
INLET & OPERATING CONDITIONS
Inlet PSI range60–232 PSI
Max inlet temp120°F
Connections3/4 NPT
ELECTRICAL & FORM
Power0.42 kW
Electrical service115V 60Hz 1-Ph
Weight70 lb
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Electric · yearlyEst. $109
Datasheetview · download PDF local copy

Where this sits in the catalog

Compared against 15 other refrigerated · cycling dryers in the catalog.

  • Flow capacity50scfm
    10 scfmmedian 50 scfm200 scfm
    0% vs. median
  • Pressure dew point38°F
    38°Fmedian 38°F39°F
    0°F vs. median
