Ingersoll Rand · DA · REFRIGERATED · CYCLING

DA41EC

24 SCFM · 38°F dew point · 232 PSI max · 0.31 kW
PRICE
Unverified
no price source on file

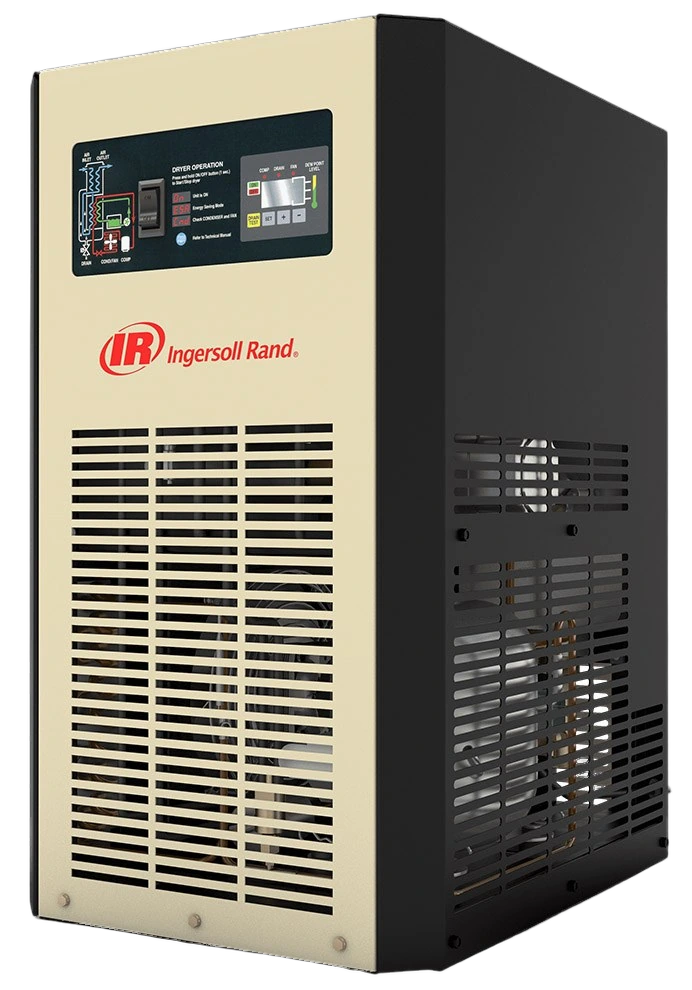

Ingersoll Rand DA41EC

Ingersoll Rand DA41EC is a refrigerated cycling compressed-air dryer rated at 24 SCFM, delivering a 38°F pressure dew point at standard CAGI conditions. Maximum inlet pressure: 232 PSI; minimum: 60 PSI. Electrical: 115V 60Hz 1-phase, 0.31 kW. Connections: 1/2 NPT. Weight: 60 lbs. Ambient temperature maximum: 122°F. Energy-cycling refrigeration modulates compressor operation to match air demand, saving energy at part-load versus non-cycling designs. Suited for shop air on a 5 HP compressor. Purge loss: 0%. Part of the Ingersoll Rand D-EC / DA-EC compact dryer line. Contact an authorized Ingersoll Rand distributor for current pricing and availability.

Flow
24 SCFM
Dew point
38 °F
Purge loss
— %
Max PSI
232 PSI
Air output per kW inputAirflow per kW input
77.4SCFM/kW
Poor 30Typical 50Good 75
Pressure dew pointClass typical · refrigerated · cycling
38°F
Warmer +30°Class typ 38°FDrier −30°
Price per cubic foot · minuteNo price source on file
—$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow24 SCFM @ 232 PSI
Pressure dew point38°F
Purge loss0% (no purge — refrigerated)
SCFM / kW77.4 SCFM/kW
Rating conditions100 psig / 100°F inlet / 100°F ambient
Best fitWorkshop and light industrial air with variable demand; cycling refrigeration reduces operating cost
INLET & OPERATING CONDITIONS
Inlet PSI range60–232 PSI
Max inlet temp120°F
Connections1/2 NPT
ELECTRICAL & FORM
Power0.31 kW
Electrical service115V 60Hz 1-Ph
Weight60 lb
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Electric · yearlyEst. $81
Datasheetview · download PDF local copy

Where this sits in the catalog

Compared against 15 other refrigerated · cycling dryers in the catalog.

  • Flow capacity24scfm
    10 scfmmedian 50 scfm200 scfm
    -52% vs. median
  • Pressure dew point38°F
    38°Fmedian 38°F39°F
    0°F vs. median
