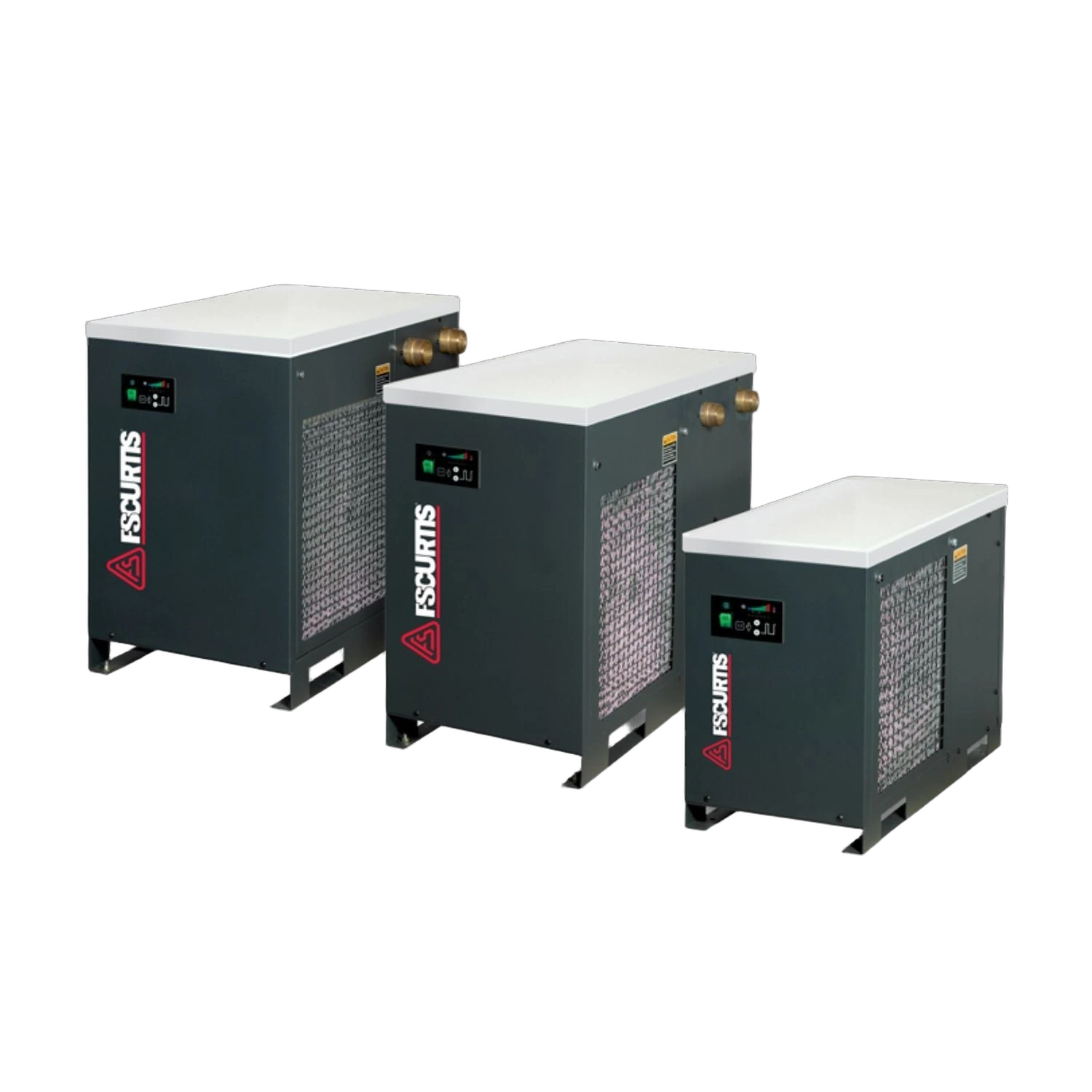

FS-Curtis ALMFSCFRNPX004004XXXFP is a 400-SCFM non-cycling refrigerated air dryer rated to 232 PSI maximum working pressure with 120 deg F maximum inlet temperature, running on 460V three-phase power and weighing 225 lbs. The FP suffix denotes a factory-installed premium control panel variant of the RNPX400 series. Non-cycling refrigeration maintains dewpoint consistency independent of load swings, reducing moisture spikes downstream. At 400 SCFM, this unit suits output from large rotary screw packages feeding distribution headers at up to 232 PSI. Authorized FS-Curtis distributors supply the certified OEM datasheet including refrigerant type, connection sizing, and pressure dewpoint specification. The dealer locator can identify stocking distributors for sizing confirmation and service contracts.
Where this sits in the catalog
Compared against 124 other air dryer dryers in the catalog.
- Flow capacity400scfm7 scfmmedian 75 scfm2,500 scfm+433.3% vs. median
- Pressure dew point38°F36°Fmedian 38°F50°F0°F vs. median
- Price$11,199$852median $11,263$38,727-0.6% vs. median
