What is the flow rating of the FS-Curtis ALMFSCFRNPX003004XXXFP air dryer?

The FS-Curtis ALMFSCFRNPX003004XXXFP is rated at 300 SCFM.

What type of air dryer is the FS-Curtis ALMFSCFRNPX003004XXXFP?

The FS-Curtis ALMFSCFRNPX003004XXXFP is a Refrigerated air dryer.

What pressure dewpoint does the FS-Curtis ALMFSCFRNPX003004XXXFP achieve?

The FS-Curtis ALMFSCFRNPX003004XXXFP achieves a pressure dewpoint of 38°F.

What voltage does the FS-Curtis ALMFSCFRNPX003004XXXFP require?

The FS-Curtis ALMFSCFRNPX003004XXXFP runs on 460.

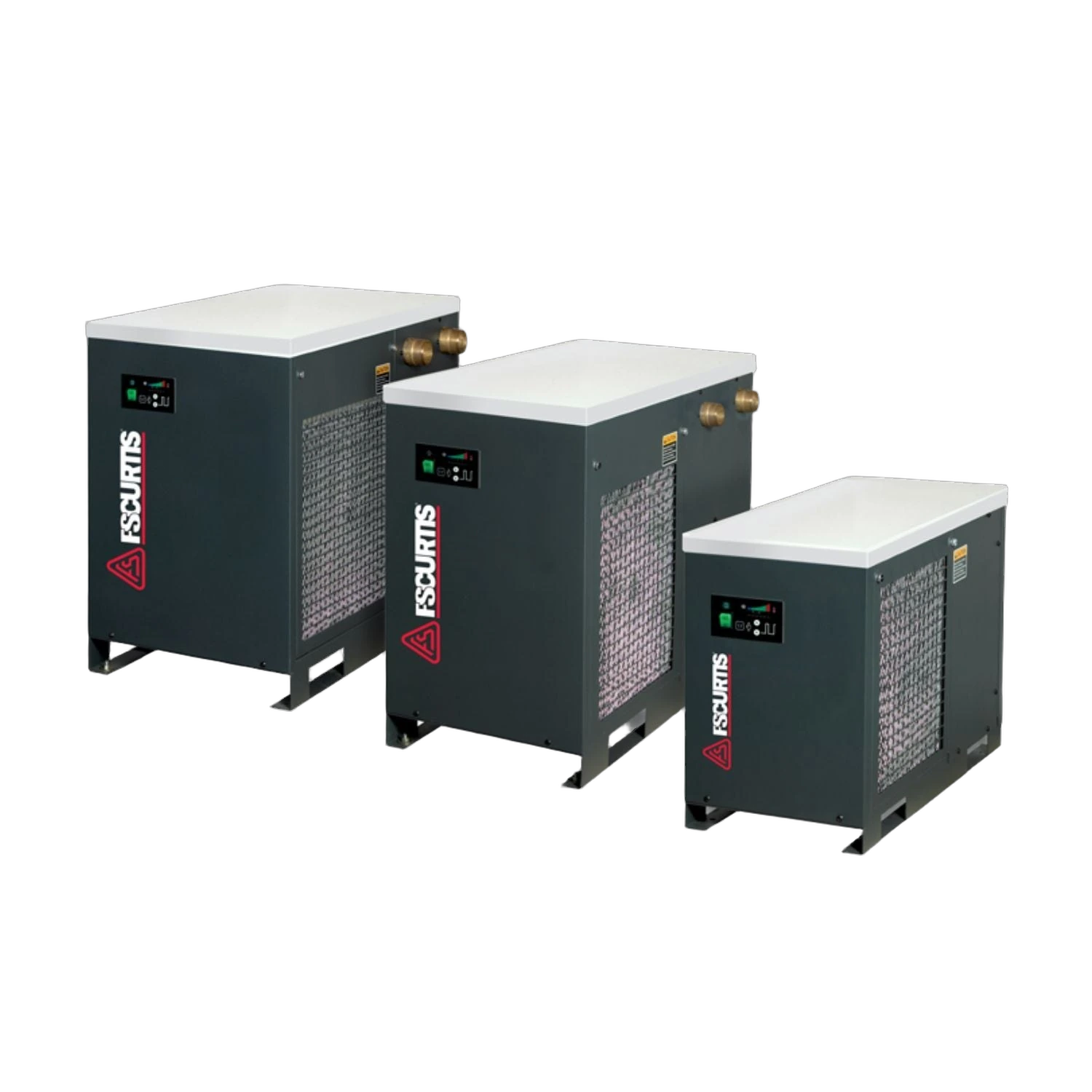

FS-Curtis ALMFSCFRNPX003004XXXFP

FS-Curtis ALMFSCFRNPX003004XXXFP is a 300-SCFM non-cycling refrigerated air dryer rated to 232 PSI maximum working pressure with 120 deg F maximum inlet temperature, operating on 460V three-phase power and weighing 212 lbs. The FP suffix denotes the factory-installed premium control panel configuration of the RNPX300 series. Non-cycling refrigeration delivers consistent downstream dewpoint without cycling losses, suited for industrial installations with variable demand. At 300 SCFM this unit accommodates mid-to-large rotary screw compressor packages feeding 460V plant air systems. Authorized FS-Curtis distributors supply full OEM datasheet with refrigerant type, pressure dewpoint, NPT connection sizing, and service documentation.

Flow

300 SCFM

Dew point

38 °F

Purge loss

— %

Max PSI

232 PSI

Air output per kW inputAirflow per kW input

146.3SCFM/kW

Poor 30Typical 50Good 70

Pressure dew pointClass typical · air dryer

38°F

Warmer +30°Class typ 38°FDrier −30°

Price per cubic foot · minuteVerified retailer price

$24$/SCFM

Good $180Typical $280High $420

PERFORMANCE

Catalog flow300 SCFM @ 232 PSI

Pressure dew point38°F

Purge loss0% (no purge — refrigerated)

SCFM / kW146.3 SCFM/kW

Best fitContinuous compressed-air drying for industrial 460V three-phase systems up to 300 SCFM

INLET & OPERATING CONDITIONS

Inlet PSI range10–232 PSI

Max inlet temp120°F

Max ambient110°F

ELECTRICAL & FORM

Power2.05 kW

Electrical service460

Weight212 lb

COST & OWNERSHIP

Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.

Electric · yearlyEst. $533

Where this sits in the catalog

Compared against 124 other air dryer dryers in the catalog.

Flow capacity300scfm
7 scfmmedian 75 scfm2,500 scfm
+300% vs. median
Pressure dew point38°F
36°Fmedian 38°F50°F
0°F vs. median
Price$9,049
$852median $11,263$38,727
-19.7% vs. median

Where this is sold

Alamo Equipment
Verified 4 months ago
$7,114
Lowest

Find an installer / dealer near youAuthorized FS-Curtis dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

Alamo Equipment
