What is the flow rating of the FS-Curtis ALMFSCFRNP005004XXXXX air dryer?

The FS-Curtis ALMFSCFRNP005004XXXXX is rated at 500 SCFM.

What type of air dryer is the FS-Curtis ALMFSCFRNP005004XXXXX?

The FS-Curtis ALMFSCFRNP005004XXXXX is a Refrigerated air dryer.

What pressure dewpoint does the FS-Curtis ALMFSCFRNP005004XXXXX achieve?

The FS-Curtis ALMFSCFRNP005004XXXXX achieves a pressure dewpoint of 38°F.

What voltage does the FS-Curtis ALMFSCFRNP005004XXXXX require?

The FS-Curtis ALMFSCFRNP005004XXXXX runs on 460.

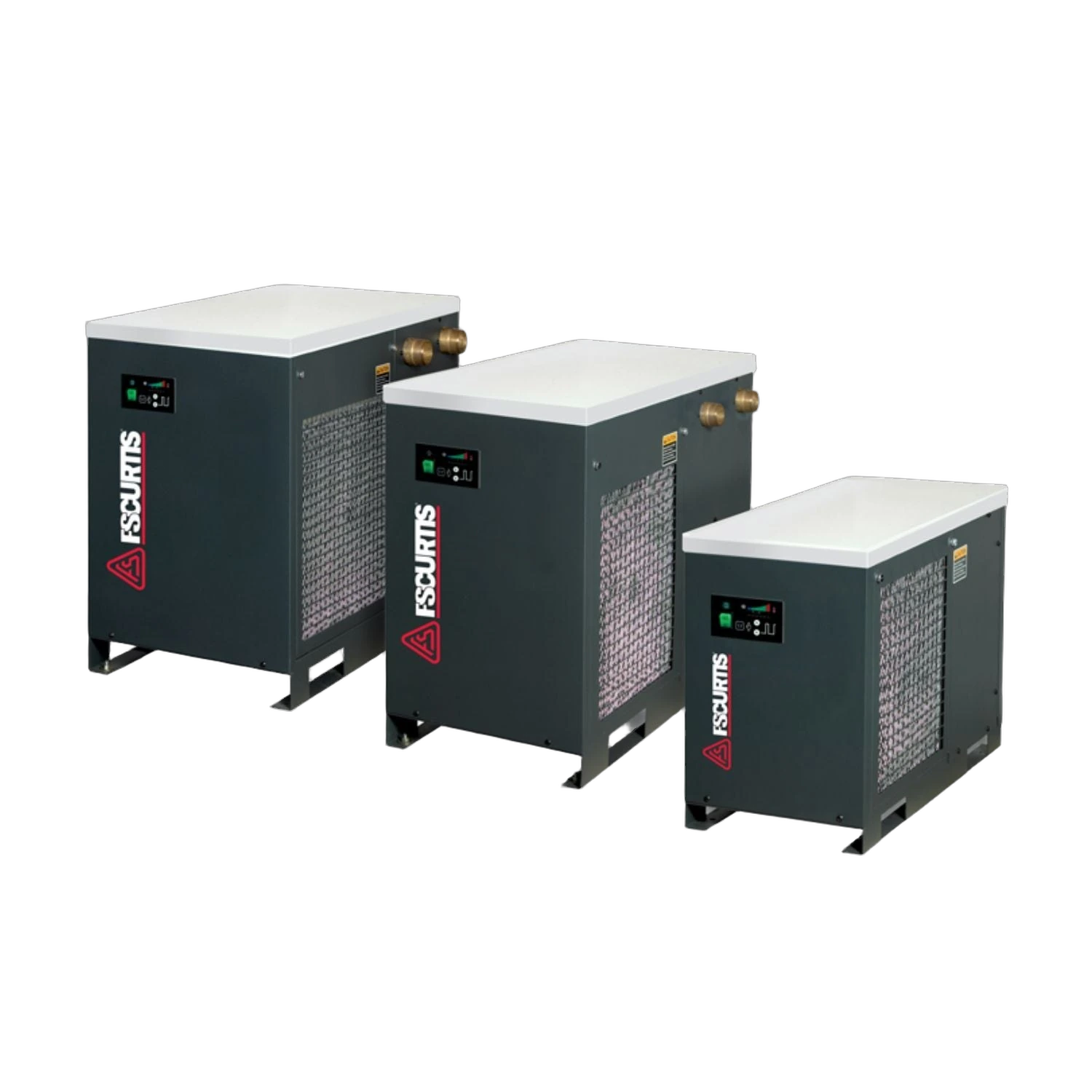

FS-Curtis ALMFSCFRNP005004XXXXX

FS-Curtis ALMFSCFRNP005004XXXXX (RNP500) is a 500-SCFM non-cycling refrigerated air dryer rated to 232 PSI maximum working pressure with a 38 deg F pressure dewpoint, operating on 460V 3-phase power and drawing 3.06 kW input power; it weighs 262 lbs. The XXXXX suffix indicates the base configuration without the factory filter pack (versus the FP variant). The air-cooled unit uses CFC-free R-134a refrigerant.

Flow

500 SCFM

Dew point

38 °F

Purge loss

— %

Max PSI

232 PSI

Air output per kW inputAirflow per kW input

163.4SCFM/kW

Poor 30Typical 50Good 70

Pressure dew pointClass typical · air dryer

38°F

Warmer +30°Class typ 38°FDrier −30°

Price per cubic foot · minuteVerified retailer price

$20$/SCFM

Good $180Typical $280High $420

PERFORMANCE

Catalog flow500 SCFM @ 232 PSI

Pressure dew point38°F

Purge loss0% (no purge — refrigerated)

SCFM / kW163.4 SCFM/kW

Best fitContinuous compressed-air drying for industrial 460V three-phase systems up to 500 SCFM

INLET & OPERATING CONDITIONS

Inlet PSI range10–232 PSI

Max inlet temp120°F

Max ambient110°F

ELECTRICAL & FORM

Power3.06 kW

Electrical service460

Weight262 lb

COST & OWNERSHIP

Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.

Electric · yearlyEst. $796

Where this sits in the catalog

Compared against 124 other air dryer dryers in the catalog.

Flow capacity500scfm
7 scfmmedian 75 scfm2,500 scfm
+566.7% vs. median
Pressure dew point38°F
36°Fmedian 38°F50°F
0°F vs. median
Price$9,999
$852median $11,263$38,727
-11.2% vs. median

Where this is sold

Alamo Equipment
Verified 3 months ago
$9,999
Lowest

Find an installer / dealer near youAuthorized FS-Curtis dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

Alamo Equipment
