DRS10A-460/3

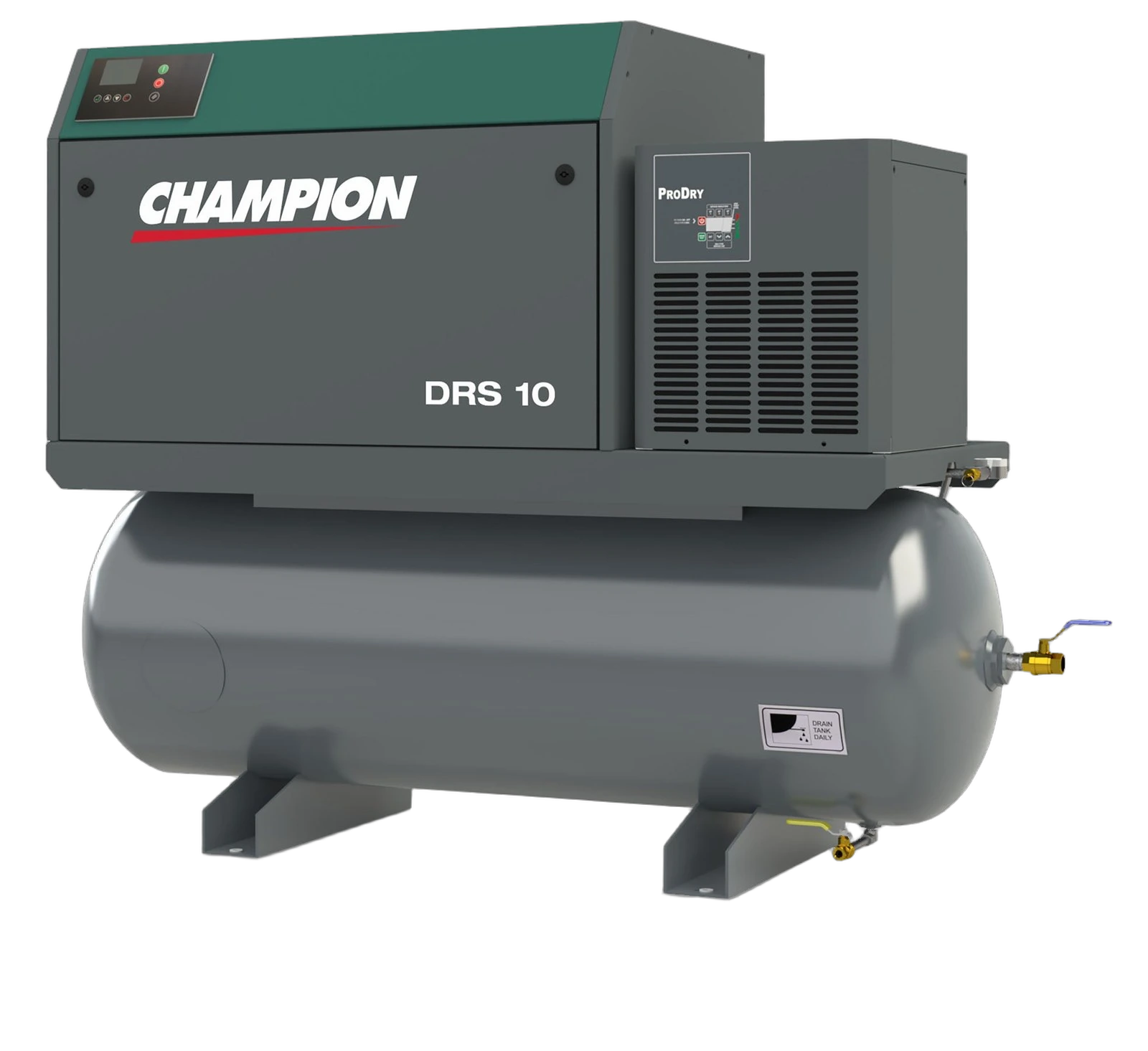

Champion DRS10A-460/3 is a 37-SCFM non-cycling refrigerated air dryer delivering a 38 deg F pressure dewpoint, bundled as part of the Champion DRS10A integrated air system on 460V 3-phase power. The dryer subsystem draws 0.74 kW and is paired with a 10 HP variable-speed rotary screw compressor and 80-gallon receiver tank, weighing 230 lb combined. The 460/3 designation serves industrial facilities with 460V 3-phase panels, the most common high-voltage 3-phase standard for US manufacturing. List price for the complete DRS10A system is $17,300 through authorized Champion dealers. Service and warranty are handled through Quincy Compressor authorized dealers. Buyers requiring dryer-only specifications including NPT connection size and refrigerant type should request the DRS10A series datasheet from a Champion distributor.
