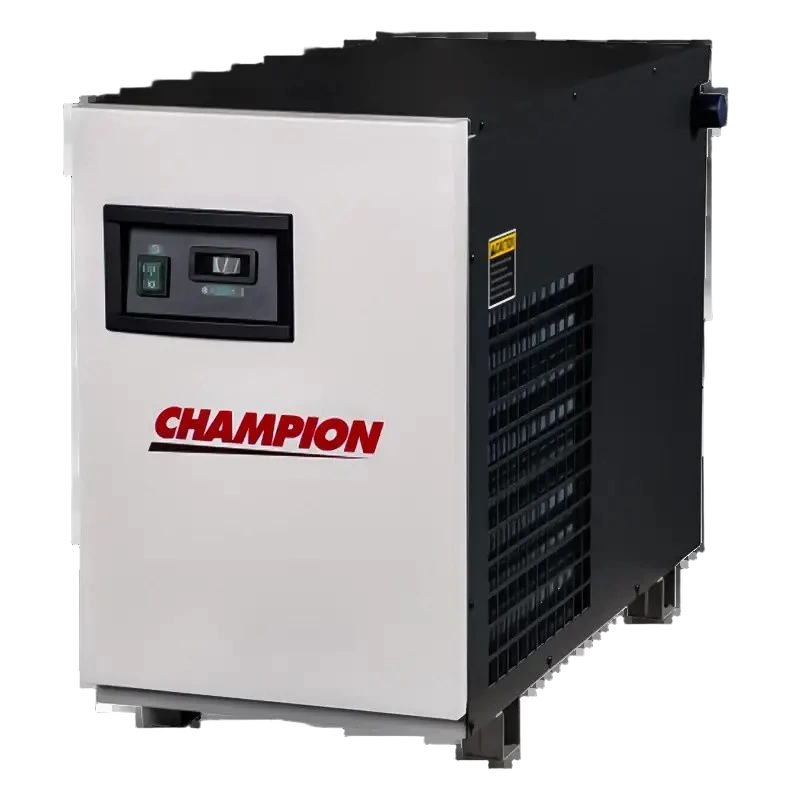

CH-CGD75A1

Champion CH-CGD75A1 is a 75-SCFM refrigerated air dryer delivering 38 deg F pressure dewpoint at up to 232 PSI maximum working pressure. It draws 0.52 kW on 115V single-phase power and weighs 123 lbs. The CGD series from Champion uses cycling refrigeration to remove moisture from compressed air, suitable for general industrial applications including pneumatic tools, spray finishing, and process control. At 75 SCFM capacity it handles output from 15 to 20 HP rotary screw or two-stage reciprocating compressors. The 232 PSI maximum working pressure accommodates standard industrial distribution headers. The CH-CGD75A1 has a compact footprint and low power draw for applications where operational costs are a priority. Authorized Champion Air distributors supply full OEM datasheet with refrigerant type, inlet temperature rating, connection sizing, and service documentation.
