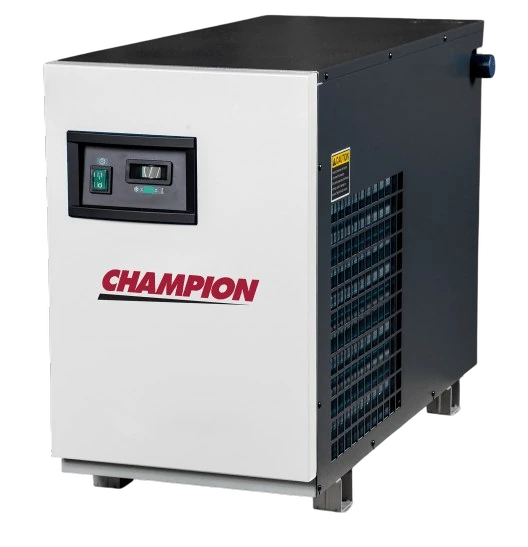

Champion CGD400A2FP is a refrigerated non-cycling compressed-air dryer rated at 400 SCFM at 100 psig / 100°F inlet / 100°F ambient conditions, delivering a 38°F pressure dew point. Maximum inlet pressure is 232 PSI with a 120°F maximum inlet temperature. Electrical requirements are 230V / 60 Hz / three-phase. The unit weighs 580 lbs and connects via 2 NPT port. As a large-capacity non-cycling refrigerated dryer, the CGD400A2FP continuously operates the refrigeration circuit, making it suitable for high-demand industrial environments such as metal fabrication, large manufacturing plants, and industrial process applications requiring consistent moisture removal at scale. The CGD series is a Gardner Denver / Champion industrial product line sold through authorized distributors; pricing is dealer-quoted. A factory datasheet is available through authorized dealers. Consult a Champion distributor for current lead time and installation requirements for this three-phase unit.
Where this sits in the catalog
Compared against 39 other refrigerated · non-cycling dryers in the catalog.
- Flow capacity400scfm10 scfmmedian 65 scfm480 scfm+515.4% vs. median
- Pressure dew point38°F37°Fmedian 39°F50°F-1°F vs. median
