Champion · CGD · REFRIGERATED · NON-CYCLING

CGD35A1FP

35 SCFM · 38°F dew point · 232 PSI max · 0.47 kW
PRICE
Unverified
no price source on file

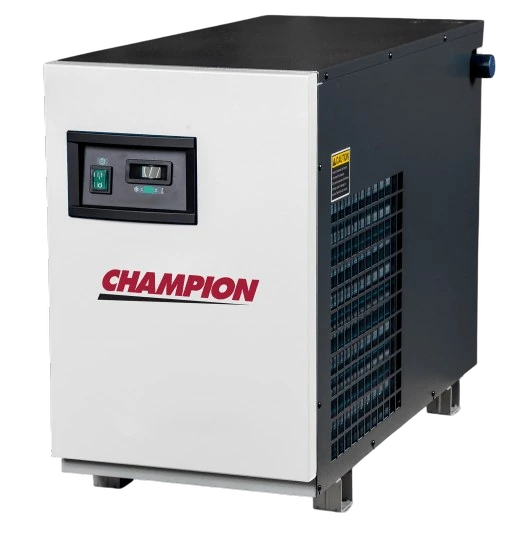

Champion CGD35A1FP

Champion CGD35A1FP is a refrigerated non-cycling compressed-air dryer rated at 35 SCFM at 100 psig / 100°F inlet / 100°F ambient conditions, delivering a 38°F pressure dew point. Maximum inlet pressure is 232 PSI with a 120°F maximum inlet temperature. Electrical requirements are 115V / 60 Hz / single-phase. The unit weighs 88 lbs and connects via 1 NPT port. As a non-cycling refrigerated dryer, the CGD35A1FP runs the refrigeration circuit continuously, making it well suited for consistent compressed-air demand in light manufacturing, automotive service, and industrial process applications where moisture removal is critical. The CGD series is a Gardner Denver / Champion industrial line sold through authorized distributors. A factory datasheet is available confirming flow and dewpoint ratings. Pricing is dealer-quoted; Champion does not publish MSRP. Consult an authorized Champion distributor for current lead time and regional availability.

Flow
35 SCFM
Dew point
38 °F
Purge loss
— %
Max PSI
232 PSI
Air output per kW inputAirflow per kW input
74.5SCFM/kW
Poor 25Typical 40Good 60
Pressure dew pointClass typical · refrigerated · non-cycling
38°F
Warmer +30°Class typ 38°FDrier −30°
Price per cubic foot · minuteNo price source on file
—$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow35 SCFM @ 232 PSI
Pressure dew point38°F
Purge loss0% (no purge — refrigerated)
SCFM / kW74.5 SCFM/kW
Rating conditions100 psig / 100°F inlet / 100°F ambient
Best fitDrying compressed air to a stable ISO 8573-1 Class 4-5 pressure dew point in shop and light-industrial systems
INLET & OPERATING CONDITIONS
Inlet PSI range30–232 PSI
Max inlet temp120°F
Max ambient110°F
Connections1 NPT
ELECTRICAL & FORM
Power0.47 kW
Electrical service115V 60Hz 1-Ph
RefrigerantR-134a
Weight88 lb
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Electric · yearlyEst. $122
Datasheetview · download PDF

Where this sits in the catalog

Compared against 39 other refrigerated · non-cycling dryers in the catalog.

  • Flow capacity35scfm
    10 scfmmedian 65 scfm480 scfm
    -46.2% vs. median
  • Pressure dew point38°F
    37°Fmedian 39°F50°F
    -1°F vs. median
