Champion · CGD · REFRIGERATED · NON-CYCLING

CGD250A2FP

250 SCFM · 38°F dew point · 232 PSI max · 1.98 kW
LOWEST PRICE
$9,173

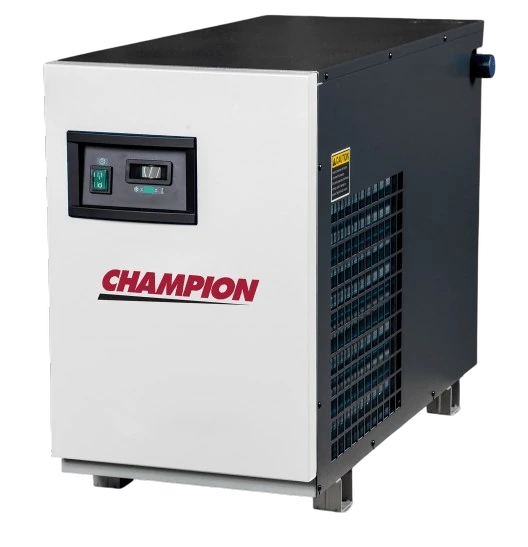

Champion CGD250A2FP

Champion CGD250A2FP is a refrigerated non-cycling compressed-air dryer rated at 250 SCFM at 100 psig / 100°F inlet / 100°F ambient conditions, delivering a 38°F pressure dew point. Maximum inlet pressure is 232 PSI with a 120°F maximum inlet temperature. Electrical requirements are 230V / 60 Hz / single-phase. The unit weighs 181 lbs and connects via 2 NPT port. As a non-cycling refrigerated dryer, the CGD250A2FP continuously runs the refrigeration circuit, providing consistent moisture removal for steady compressed-air loads in manufacturing and process environments. The CGD series belongs to the Gardner Denver / Champion industrial dryer product line, sold through authorized dealers with dealer-quoted pricing. A factory datasheet is available through authorized Champion distributors confirming flow and dewpoint ratings. Contact a Champion dealer for current lead time and regional pricing.

Flow
250 SCFM
Dew point
38 °F
Purge loss
— %
Max PSI
232 PSI
Air output per kW inputAirflow per kW input
126.3SCFM/kW
Poor 25Typical 40Good 60
Pressure dew pointClass typical · refrigerated · non-cycling
38°F
Warmer +30°Class typ 38°FDrier −30°
Price per cubic foot · minuteVerified retailer price
$37$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow250 SCFM @ 232 PSI
Pressure dew point38°F
Purge loss0% (no purge — refrigerated)
SCFM / kW126.3 SCFM/kW
Rating conditions100 psig / 100°F inlet / 100°F ambient
Best fitDrying high-volume compressed air to a stable ISO 8573-1 Class 4-5 pressure dew point in industrial plants
INLET & OPERATING CONDITIONS
Inlet PSI range10–232 PSI
Max inlet temp120°F
Max ambient110°F
Connections2 NPT
ELECTRICAL & FORM
Power1.98 kW
Electrical service230V 60Hz 1-Ph
RefrigerantR-134a
Weight181 lb
Dimensions29.97H x 17.43W x 36.66D in
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Electric · yearlyEst. $515
Datasheetview · download PDF

Where this sits in the catalog

Compared against 39 other refrigerated · non-cycling dryers in the catalog.

  • Flow capacity250scfm
    10 scfmmedian 65 scfm480 scfm
    +284.6% vs. median
  • Pressure dew point38°F
    37°Fmedian 39°F50°F
    -1°F vs. median
  • Price$9,173
    $1,397median $2,793$10,952
    +228.4% vs. median
Where this is soldPricing pending verification
