BEKO Technologies · RAC · REFRIGERATED · NON-CYCLING

RAc 100

100 SCFM · 38°F dew point · 200 PSI max · 0.70 kW
AVERAGE PRICE
$3,468
1 retailer

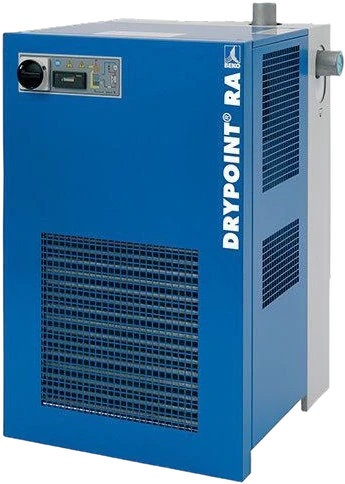

BEKO Technologies RAc 100

BEKO Technologies RAc 100 is a refrigerated non-cycling compressed-air dryer rated at 100 SCFM at 100 psig / 100°F inlet / 100°F ambient conditions, delivering a 38°F pressure dew point. Maximum inlet pressure is 200 PSI. Electrical requirements are 115V / 60 Hz / single-phase with approximately 70W power consumption. The unit connects via 1 NPT port. As a non-cycling refrigerated dryer, the RAc 100 continuously operates its refrigeration circuit for stable dewpoint performance suited to consistent compressed-air demand in light industrial, automotive, and food-processing applications where moisture control is critical. BEKO Technologies is a global compressed-air treatment specialist. Pricing is available through authorized BEKO distributors. A factory datasheet is available confirming CAGI-standard flow and dewpoint ratings. Contact an authorized BEKO Technologies distributor for current pricing, lead time, and availability.

Flow
100 SCFM
Dew point
38 °F
Purge loss
%
Max PSI
200 PSI
Air output per kW inputAirflow per kW input
142.9SCFM/kW
Poor 25Typical 40Good 60
Pressure dew pointClass typical · refrigerated · non-cycling
38°F
Warmer +30°Class typ 38°FDrier −30°
Price per cubic foot · minuteVerified retailer price
$35$/SCFM
Good $180Typical $280High $420
PERFORMANCE
Catalog flow100 SCFM @ 200 PSI
Pressure dew point38°F
Purge loss0% (no purge — refrigerated)
SCFM / kW142.9 SCFM/kW
Rating conditions100 psig / 100°F inlet / 100°F ambient
Best fitGeneral shop and instrument air drying — 38°F dew point continuous
INLET & OPERATING CONDITIONS
Inlet PSI rangeup to 200 PSI
Max inlet temp130°F
Max ambient115°F
Connections1-1/4″ NPT
ELECTRICAL & FORM
Power0.70 kW
Electrical service115V 60Hz 1-Ph
Weight86 lb
Dimensions29 H x 14 W x 18 D in
COST & OWNERSHIP
Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.
Electric · yearlyEst. $182
Manualview · download PDF local copy

Where this sits in the catalog

Compared against 39 other refrigerated · non-cycling dryers in the catalog.

  • Flow capacity100scfm
    10 scfmmedian 65 scfm480 scfm
    +53.8% vs. median
  • Pressure dew point38°F
    37°Fmedian 39°F50°F
    -1°F vs. median
  • Price$3,126
    $1,397median $2,793$10,952
    +11.9% vs. median

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$3,295$3,410$3,526$3,641avg $3,468today-10d-20d-30d
