What is the flow rating of the Altec Air RAD-1250A-4 air dryer?

The Altec Air RAD-1250A-4 is rated at 1250 SCFM.

What type of air dryer is the Altec Air RAD-1250A-4?

The Altec Air RAD-1250A-4 is a Refrigerated air dryer.

What pressure dewpoint does the Altec Air RAD-1250A-4 achieve?

The Altec Air RAD-1250A-4 achieves a pressure dewpoint of 38°F.

What voltage does the Altec Air RAD-1250A-4 require?

The Altec Air RAD-1250A-4 runs on 120.

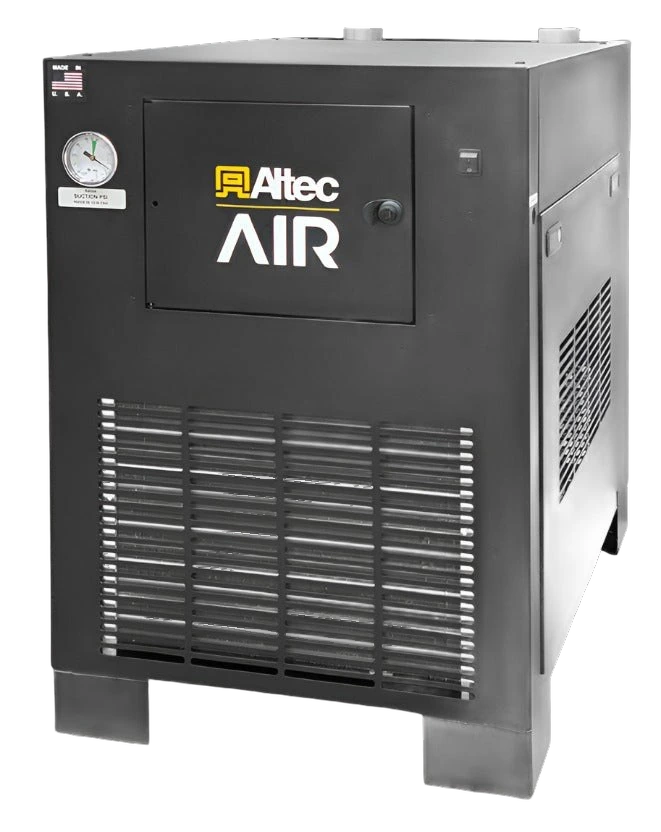

Altec Air RAD-1250A-4

Altec Air RAD-1250A-4 is a refrigerated air dryer delivering 1250 SCFM at up to 232 PSI inlet pressure on 120V power, achieving a pressure dewpoint of 38 deg F (3 deg C) and meeting ISO 8573-1 Class 4 moisture classification. The unit weighs 985 lbs and draws 7.9 kW during operation. At 1250 SCFM, this dryer is suited for very large-scale plant-wide systems in heavy manufacturing, petrochemical processing, and multi-compressor facilities. List price is approximately $15,926 through authorized Altec Air distributors. Locate authorized service and installation partners through the installer directory on this site.

Flow

1,250 SCFM

Dew point

38 °F

Purge loss

— %

Max PSI

232 PSI

Air output per kW inputAirflow per kW input

158.2SCFM/kW

Poor 30Typical 50Good 70

Pressure dew pointClass typical · air dryer

38°F

Warmer +30°Class typ 38°FDrier −30°

Price per cubic foot · minuteVerified retailer price

$13$/SCFM

Good $180Typical $280High $420

PERFORMANCE

Catalog flow1,250 SCFM @ 232 PSI

Pressure dew point38°F

Purge loss0% (no purge — refrigerated)

SCFM / kW158.2 SCFM/kW

Best fitHigh-volume industrial compressed-air moisture removal for large centralized 1250 SCFM compressed air systems

INLET & OPERATING CONDITIONS

Inlet PSI range50–232 PSI

Max inlet temp140°F

Max ambient120°F

ELECTRICAL & FORM

Power7.90 kW

Electrical service120

Weight885 lb

COST & OWNERSHIP

Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.

Electric · yearlyEst. $2,054

Where this sits in the catalog

Compared against 124 other air dryer dryers in the catalog.

Flow capacity1,250scfm
7 scfmmedian 75 scfm2,500 scfm
+1566.7% vs. median
Pressure dew point38°F
36°Fmedian 38°F50°F
0°F vs. median
Price$15,926
$852median $11,263$38,727
+41.4% vs. median
