What is the flow rating of the Altec Air RAD-0600A-4 air dryer?

The Altec Air RAD-0600A-4 is rated at 600 SCFM.

What type of air dryer is the Altec Air RAD-0600A-4?

The Altec Air RAD-0600A-4 is a Refrigerated air dryer.

What pressure dewpoint does the Altec Air RAD-0600A-4 achieve?

The Altec Air RAD-0600A-4 achieves a pressure dewpoint of 38°F.

What voltage does the Altec Air RAD-0600A-4 require?

The Altec Air RAD-0600A-4 runs on 460.

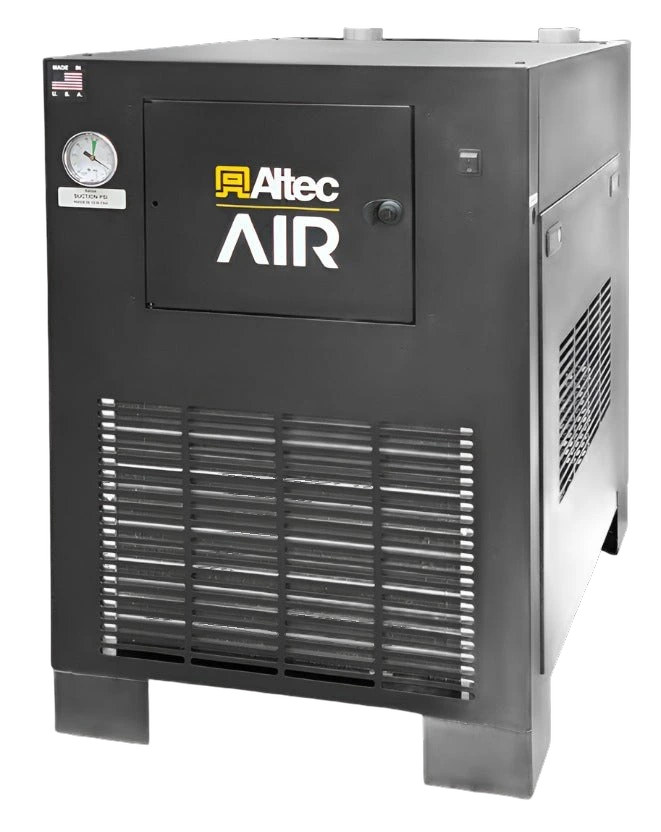

Altec Air RAD-0600A-4

Altec Air RAD-0600A-4 is a refrigerated air dryer delivering 600 SCFM at up to 232 PSI inlet pressure on 460V power, achieving a pressure dewpoint of 38 deg F (3 deg C) and meeting ISO 8573-1 Class 4 moisture classification. The unit weighs 615 lbs and draws 4.1 kW during operation. At 600 SCFM, this dryer is suited for high-capacity rotary screw or centrifugal compressors serving large plant-wide compressed air systems. List price is approximately $11,790 through authorized Altec Air distributors. Locate authorized service and installation partners through the installer directory on this site.

Flow

600 SCFM

Dew point

38 °F

Purge loss

— %

Max PSI

232 PSI

Air output per kW inputAirflow per kW input

146.3SCFM/kW

Poor 30Typical 50Good 70

Pressure dew pointClass typical · air dryer

38°F

Warmer +30°Class typ 38°FDrier −30°

Price per cubic foot · minuteVerified retailer price

$20$/SCFM

Good $180Typical $280High $420

PERFORMANCE

Catalog flow600 SCFM @ 232 PSI

Pressure dew point38°F

Purge loss0% (no purge — refrigerated)

SCFM / kW146.3 SCFM/kW

Best fitLarge-volume industrial compressed-air moisture removal requiring 600 SCFM of dry air at up to 232 PSIG

INLET & OPERATING CONDITIONS

Inlet PSI range50–232 PSI

Max inlet temp140°F

Max ambient120°F

ELECTRICAL & FORM

Power4.10 kW

Electrical service460

Weight536 lb

COST & OWNERSHIP

Yearly estimates assume 8 hr/day · 250 day/yr at $0.13/kWh. Adjust to your shop’s actual utilization for a precise number.

Electric · yearlyEst. $1,066

Where this sits in the catalog

Compared against 124 other air dryer dryers in the catalog.

Flow capacity600scfm
7 scfmmedian 75 scfm2,500 scfm
+700% vs. median
Pressure dew point38°F
36°Fmedian 38°F50°F
0°F vs. median
Price$11,790
$852median $11,263$38,727
+4.7% vs. median
