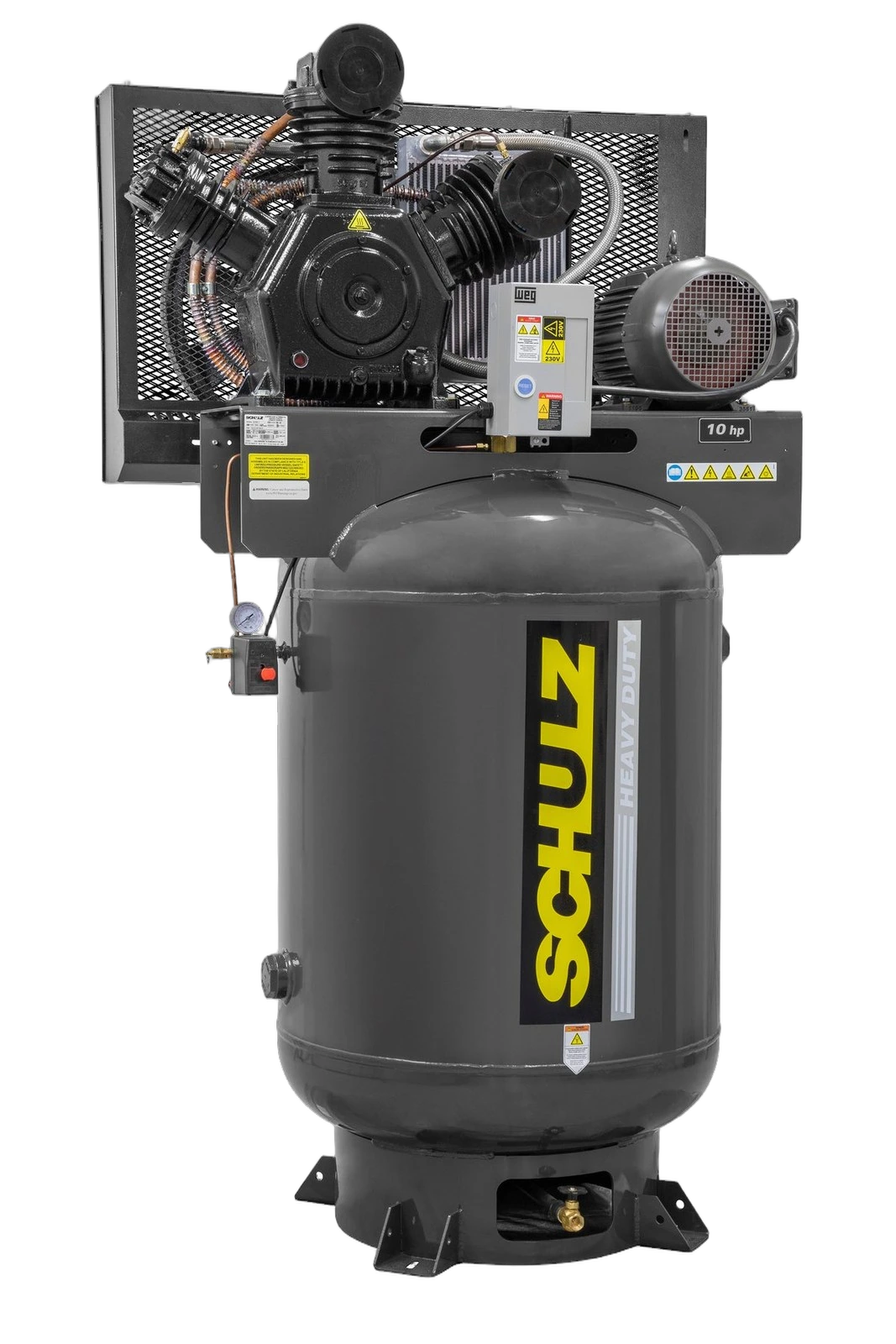

Schulz of America 10120VW40X is a 10 HP two-stage V-Series heavy-duty reciprocating air compressor delivering 25.9 SCFM at 175 PSI on a 120-gallon ASME vertical tank, wired for 208-230/460V. Cast-iron V-cylinder pump runs at 1,750 RPM with splash lubrication and finned-tube intercooling. Factory-mounted magnetic starter; ASME tank rated 225 PSI; 1-in NPT air outlet; manual ball-valve drain. Rated 100% duty cycle. Unit weight 836 lbs. Made in USA; Schulz of America manufactures in Joinville, Brazil with US distribution. List price approximately $7,877 to $11,200 depending on retailer. Key specs: 10 HP, 25.9 SCFM @ 175 PSI, 120-gal vertical ASME, 208-230/460V, 2-stage splash-lubed, 836 lbs.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 127 · 10 HP
- SCFM @ 10 HP25.9cfm17median 34.279-24.3% vs. median
- Average price$7,978$3,555median $7,494$27k+6.5% vs. median
- CFM per HP2.59cfm/hp1.72median 3.427.96-24.3% vs. median
- Price per CFM$304$/scfm$103median $210$517+44.3% vs. median
