What horsepower is the Schulz SRP-4020E air compressor?

The Schulz SRP-4020E is rated at 20 HP.

How much air does the Schulz SRP-4020E produce?

The Schulz SRP-4020E delivers 74 SCFM at 125 PSI.

What size tank does the Schulz SRP-4020E have?

The Schulz SRP-4020E has a 120-gallon horizontal tank.

Is the Schulz SRP-4020E single-stage or two-stage?

The Schulz SRP-4020E is a single-stage compressor.

What voltage does the Schulz SRP-4020E require?

The Schulz SRP-4020E runs on 460V 3-Phase.

Is the Schulz SRP-4020E oil-free or oil-lubricated?

The Schulz SRP-4020E is oil-flooded.

What is the duty cycle of the Schulz SRP-4020E?

The Schulz SRP-4020E has a 100% duty cycle.

What is the Schulz SRP-4020E best for?

The Schulz SRP-4020E is best suited for Industrial facilities, large auto body shops, manufacturing needing 74 CFM continuous.

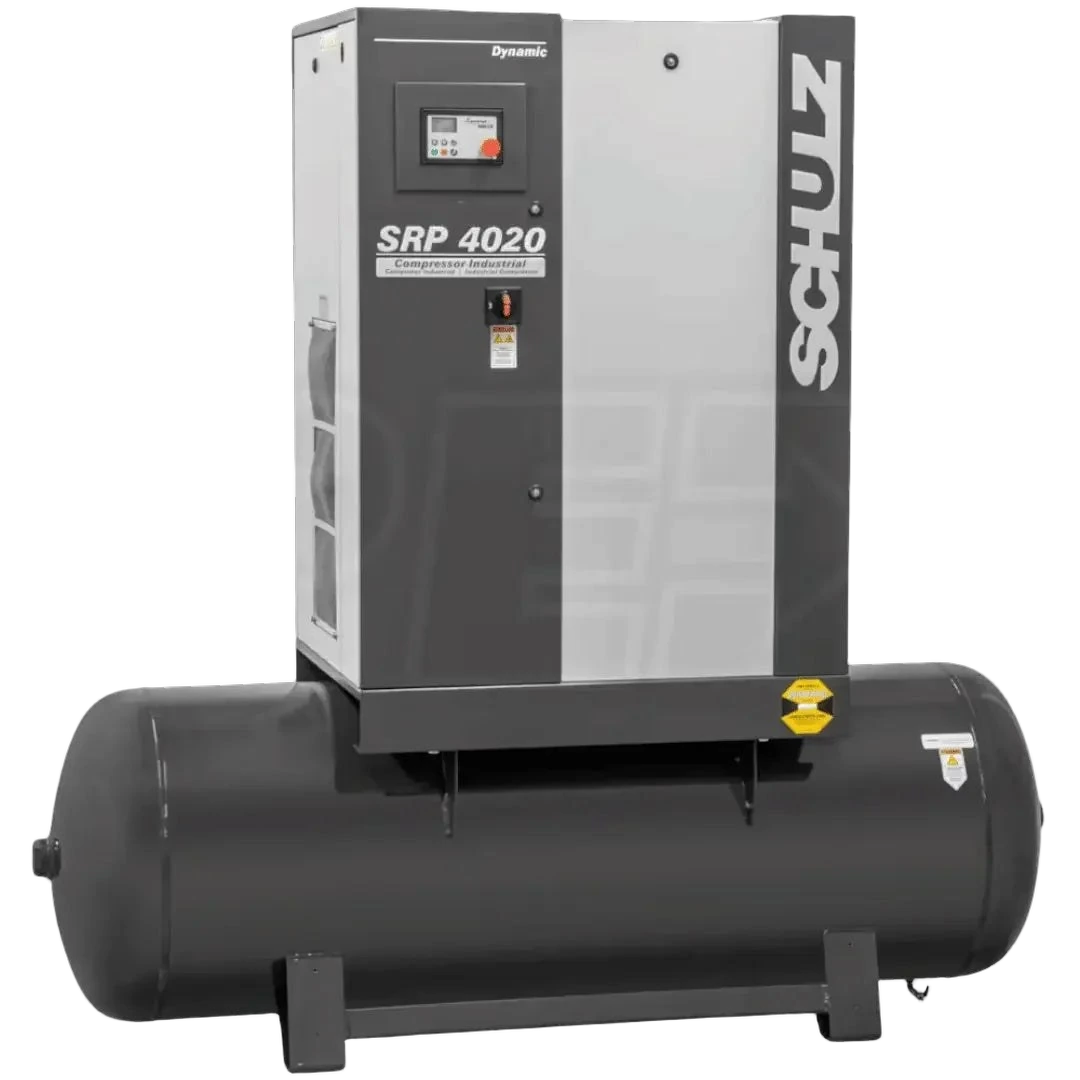

Schulz 970.3903-460 – 20 HP 120-Gallon Screw Air Compressor

The Schulz SRP-4020E (MPN 970.3903-460) is a 20 HP oil-injected belt-drive rotary screw air compressor delivering 74 SCFM at 125 PSI into a 120-gallon horizontal ASME tank. Runs on 460V three-phase; 100% duty, 69 dB(A), IP55 TEFC motor, 24V microprocessor controller, aftercooler. Dimensions: 58.5″L × 30.3″W × 39.8″H; weight 1,146 lbs. Warranty: 1 year.

CFM

74 @ 125 PSI

Duty

100% continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.70CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$202$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage screw

Cylinder—

Pump RPM—

Lubricationoil-flooded

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM74 @ 125 PSI

CFM / HP3.70

Cut-in / out100 / 125 PSI

Tank fill—

Est. draw17.6 kW

COST & MAINTENANCE

Electric · yearlyEst. $6,302

Maintenance · yearlyEst. $500

ELECTRICAL & FORM

Serviceelectric

Voltage460V 3-Phase

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight1146 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 42 · 20 HP

Sizing & pricevs. 42 in class

SCFM @ 20 HP74cfm
20median 7892
-5.1% vs. median
Average price$17,841
$10,318median $17,180$25k
+3.8% vs. median

Efficiency vs. peersvs. 42 in class

CFM per HP3.7cfm/hp
1median 3.94.6
-5.1% vs. median
Price per CFM$288$/scfm
$170median $226$1,262
+27% vs. median
