Schulz · 970 Series · SINGLE-STAGE ROTARY SCREW

970.3891-0

7.50 HP · 100% duty · electric · 1-stage
AVERAGE PRICE
$7,696
1 retailer
Schulz 970.3891-0

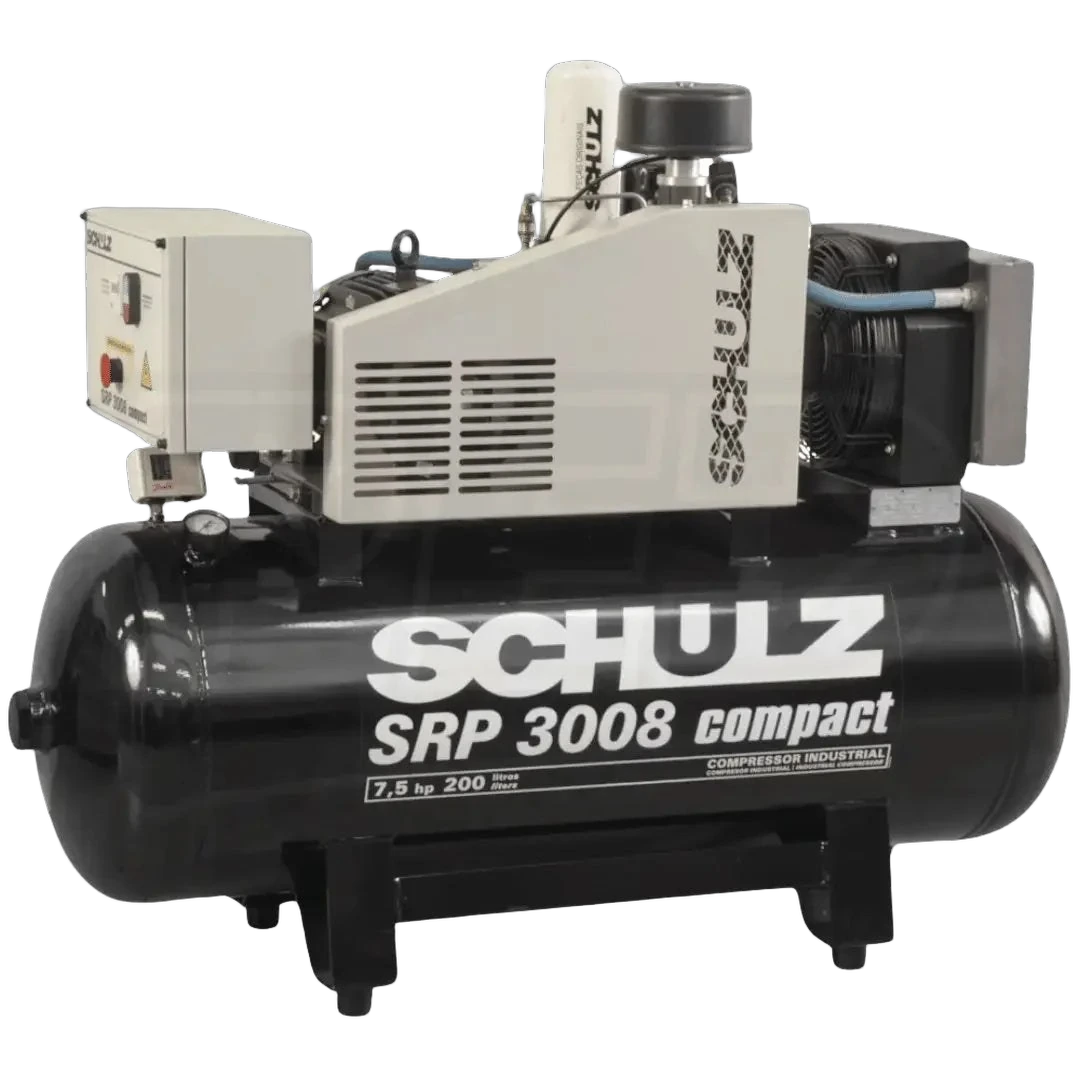

Schulz 970.3891-0 (SRP-3008 Compact-3) is a 7.5 HP oil-injected rotary screw air compressor delivering 27 CFM at 125 PSI on a 60-gallon horizontal tank, rated for 100% continuous duty. The enclosed-cabinet screw design runs cooler and quieter than a comparable piston unit and supplies steady air without the cycling of a reciprocating compressor. It weighs about 445 lb and is controlled by the CONTROL-123-E-NET microprocessor. Well suited to small machine shops, body shops, and continuous-operation cells needing dependable screw-compressor air.

HP
7.50
CFM
27 @ 125 PSI
Duty
100% continuous
Tank size
60 gal
Air output per horsepowerAirflow per motor HP
3.60CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 1-stage rotary screw
75%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$269$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages1-stage screw
Cylinder
Pump RPM
Lubrication
Oil
Sump
Pump life
Pump material
Head material
Intercooler
PERFORMANCE
Catalog CFM27 @ 125 PSI
CFM / HP3.60
Cut-in / out
Tank fill
Est. draw6.6 kW
COST & MAINTENANCE
Electric · yearlyEst. $2,363
Maintenance · yearlyEst. $188
ELECTRICAL & FORM
Serviceelectric
Voltage230
Amps
Motor
Motor RPM
ControlCONTROL-123-E-NET
Starter
Weight445 lb
Form— · 60 gal
BUILD & ENVIRONMENT
Air outlet
Drain
Drain outlet
ASME tank
Made in USA
Noise
Op. temp
Dimensions
Ship weight
Warranty

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1655 units
Peer class
32 · 7.5 HP
Sizing & pricevs. 32 in class
  • SCFM @ 7.5 HP27cfm
    20median 2952
    -6.9% vs. median
  • Average price$7,696
    $6,689median $10,084$26k
    -23.7% vs. median
Efficiency vs. peersvs. 32 in class
  • CFM per HP3.6cfm/hp
    2.72median 3.876.93
    -6.9% vs. median
  • Price per CFM$269$/scfm
    $177median $346$524
    -22.4% vs. median

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$7,232$7,398$7,564$7,731avg $7,483today-10d-20d-30d
