What horsepower is the Schulz MCSV 20 AP air compressor?

The Schulz MCSV 20 AP is rated at 5 HP.

How much air does the Schulz MCSV 20 AP produce?

The Schulz MCSV 20 AP delivers 20 SCFM at 175 PSI.

What size tank does the Schulz MCSV 20 AP have?

The Schulz MCSV 20 AP has a 80-gallon vertical_tank tank.

Is the Schulz MCSV 20 AP single-stage or two-stage?

The Schulz MCSV 20 AP is a two-stage compressor.

What voltage does the Schulz MCSV 20 AP require?

The Schulz MCSV 20 AP runs on 208/230V/3ph.

What is the Schulz MCSV 20 AP best for?

The Schulz MCSV 20 AP is best suited for Auto shops, body shops, small industrial — direct-drive compact 3-phase.

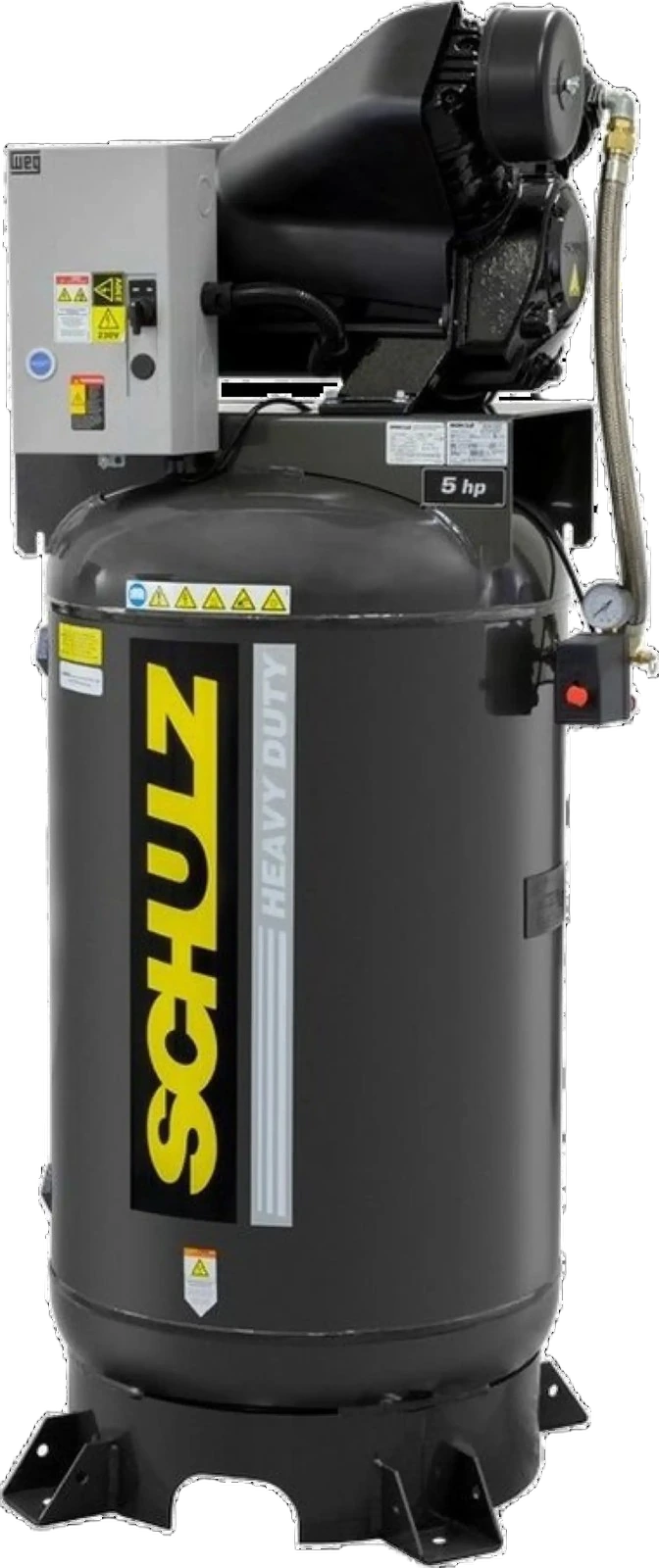

Schulz 932.9363-0 – 5 HP 80-Gallon Vertical Air Compressor

The Schulz MCSV 20 AP (MPN 932.9363-0) is a 5 HP two-stage AUDAZ-series direct-drive cast-iron reciprocating air compressor delivering 20 SCFM at 175 PSI into an 80-gallon vertical ASME tank. Uses IC-TECH® patented direct-drive technology with a finned intercooler and runs on 208/230V three-phase. Dimensions: 24″L × 28″W × 67″H; weight 358 lbs. Up to 300-hour oil change intervals. Warranty: 1 year unit, 2 years on the pump.

CFM

20 @ 175 PSI

Duty

— continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

4CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$114$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM534 rpm

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM20 @ 175 PSI

CFM / HP4

Cut-in / out145 / 175 PSI

Tank fill—

Est. draw4.4 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $1,576

Maintenance · yearlyEst. $125

Savings with Compressor Controller · yearlyEst. $362–$662

ELECTRICAL & FORM

Serviceelectric

Voltage208/230V/3ph

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight358 lb

FormVertical_tank · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 160 · 5 HP

Sizing & pricevs. 160 in class

SCFM @ 5 HP20cfm
10median 17.238
+16.3% vs. median
Average price$2,313
$962median $4,182$17k
-44.7% vs. median

Efficiency vs. peersvs. 160 in class

CFM per HP4cfm/hp
2.08median 3.447.64
+16.3% vs. median
Price per CFM$117$/scfm
$82median $235$864
-50.2% vs. median
