What horsepower is the Schulz 580HV20X-3 air compressor?

The Schulz 580HV20X-3 is rated at 5 HP.

How much air does the Schulz 580HV20X-3 produce?

The Schulz 580HV20X-3 delivers 20 SCFM at 175 PSI.

What size tank does the Schulz 580HV20X-3 have?

The Schulz 580HV20X-3 has a 80-gallon horizontal_tank tank.

Is the Schulz 580HV20X-3 single-stage or two-stage?

The Schulz 580HV20X-3 is a two-stage compressor.

What voltage does the Schulz 580HV20X-3 require?

The Schulz 580HV20X-3 runs on 460V/3ph.

What is the Schulz 580HV20X-3 best for?

The Schulz 580HV20X-3 is best suited for Small industrial shops, auto repair requiring 460V 3-phase.

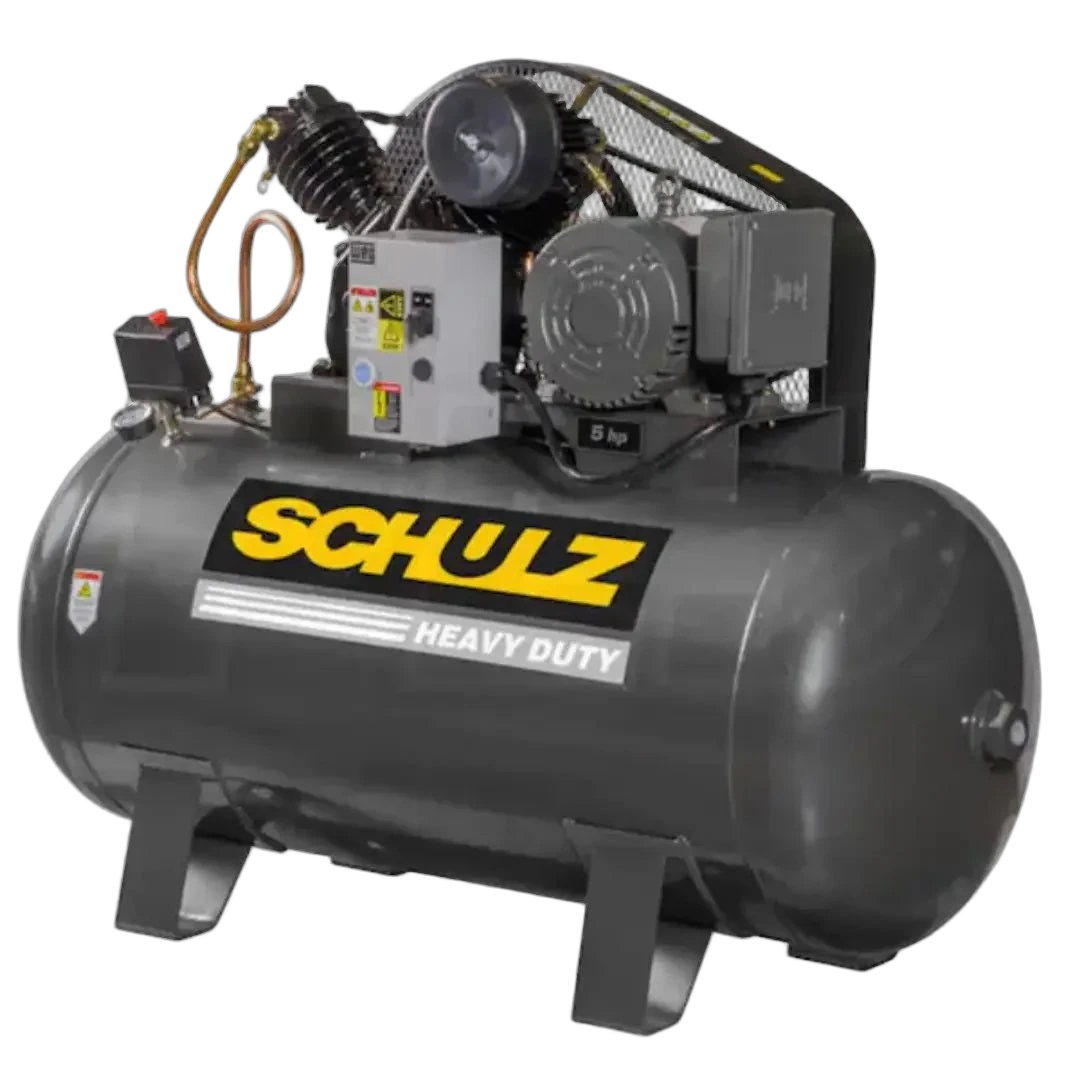

Schulz 932.9346-0-460 – 5 HP 80-Gallon Air Compressor

The Schulz 580HV20X-3 (MPN 932.9346-0-460) is a 5 HP two-stage cast-iron reciprocating air compressor delivering 20 SCFM at 175 PSI into an 80-gallon horizontal ASME tank. Runs on 460V three-phase with a WEG motor, belt drive, splash lubrication, and magnetic starter. Dimensions: 56″L × 23″W × 42″H; weight 479 lbs. Suitable for small industrial shops and auto repair on three-phase power. Warranty: 1 year unit, 2 years on the pump.

CFM

20 @ 175 PSI

Duty

— continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

4CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$164$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM20 @ 175 PSI

CFM / HP4

Cut-in / out145 / 175 PSI

Tank fill—

Est. draw4.4 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $1,576

Maintenance · yearlyEst. $125

Savings with Compressor Controller · yearlyEst. $362–$662

ELECTRICAL & FORM

Serviceelectric

Voltage460V/3ph

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight479 lb

FormHorizontal_tank · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 157 · 5 HP

Sizing & pricevs. 157 in class

SCFM @ 5 HP20cfm
10median 17.238
+16.3% vs. median
Average price$3,448
$962median $4,178$17k
-17.5% vs. median

Efficiency vs. peersvs. 157 in class

CFM per HP4cfm/hp
2.08median 3.447.64
+16.3% vs. median
Price per CFM$164$/scfm
$77median $228$864
-28.1% vs. median
