What horsepower is the Schulz 7580VV30X-3 air compressor?

The Schulz 7580VV30X-3 is rated at 7.5 HP.

How much air does the Schulz 7580VV30X-3 produce?

The Schulz 7580VV30X-3 delivers 20.1 SCFM at 175 PSI.

What size tank does the Schulz 7580VV30X-3 have?

The Schulz 7580VV30X-3 has a 80-gallon vertical tank.

Is the Schulz 7580VV30X-3 single-stage or two-stage?

The Schulz 7580VV30X-3 is a two-stage compressor.

What voltage does the Schulz 7580VV30X-3 require?

The Schulz 7580VV30X-3 runs on 208-230/460V 3-phase.

Is the Schulz 7580VV30X-3 oil-free or oil-lubricated?

The Schulz 7580VV30X-3 is oil-lubricated.

What is the Schulz 7580VV30X-3 best for?

The Schulz 7580VV30X-3 is best suited for Auto repair, tire shops, body shops, light industrial — 3-phase V-Series.

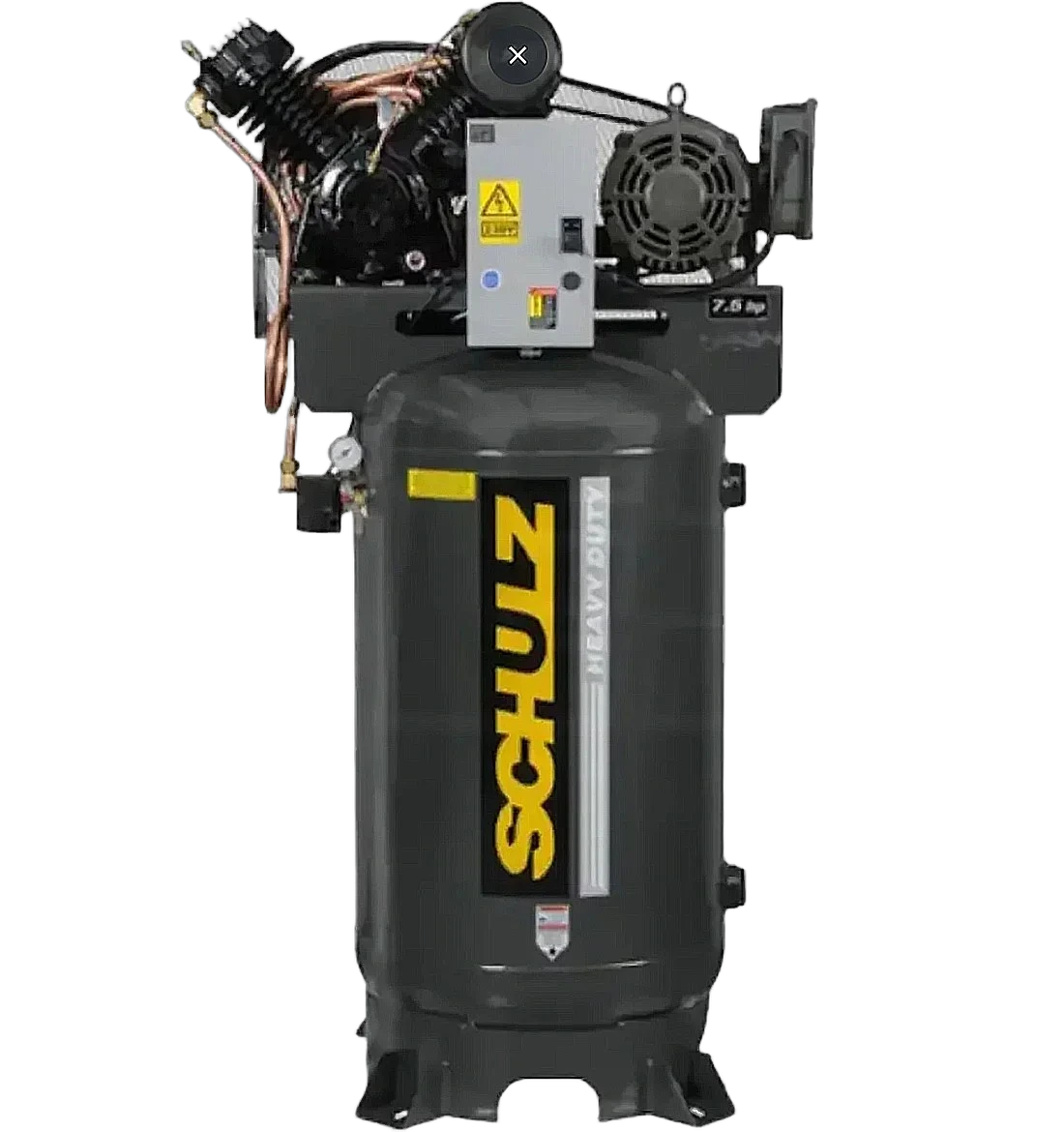

Schulz 932.9342-0-460 – 7.5 HP 80-Gallon Air Compressor

The Schulz 7580VV30X-3 (MPN 932.9342-0-460) is a 7.5 HP two-stage belt-drive reciprocating air compressor on an 80-gallon vertical ASME tank, delivering 20.1 SCFM at 175 PSI on 460V three-phase power (208-230V variant also available). The cast-iron MSV-30MAX pump uses a V-cylinder configuration for enhanced cooling and extended service life. Suited for auto repair shops, service stations, and light industrial applications requiring dependable 3-phase air supply.

7.50

CFM

20.1 @ 175 PSI

Duty

— continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

2.68CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$183$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationoil-lubricated

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM20.1 @ 175 PSI

CFM / HP2.68

Cut-in / out145 / 175 PSI

Tank fill—

Est. draw6.6 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $2,363

Maintenance · yearlyEst. $188

Savings with Compressor Controller · yearlyEst. $544–$993

ELECTRICAL & FORM

Serviceelectric

Voltage208-230/460V 3-phase

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight565 lb

FormVertical · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 181 · 7.5 HP

Sizing & pricevs. 181 in class

SCFM @ 7.5 HP20.1cfm
20median 2457
-16.2% vs. median
Average price$3,890
$1,698median $5,117$19k
-24% vs. median

Efficiency vs. peersvs. 181 in class

CFM per HP2.68cfm/hp
2.67median 3.27.65
-16.3% vs. median
Price per CFM$183$/scfm
$73median $208$632
-12.5% vs. median
