What horsepower is the Schulz 932.9341-0 air compressor?

The Schulz 932.9341-0 is rated at 7.5 HP.

How much air does the Schulz 932.9341-0 produce?

The Schulz 932.9341-0 delivers 30 SCFM at 175 PSI.

What size tank does the Schulz 932.9341-0 have?

The Schulz 932.9341-0 has a 80-gallon tank.

Is the Schulz 932.9341-0 single-stage or two-stage?

The Schulz 932.9341-0 is a two-stage compressor.

What voltage does the Schulz 932.9341-0 require?

The Schulz 932.9341-0 runs on 230/1ph.

What is the Schulz 932.9341-0 best for?

The Schulz 932.9341-0 is best suited for Auto shops, body shops, light industrial.

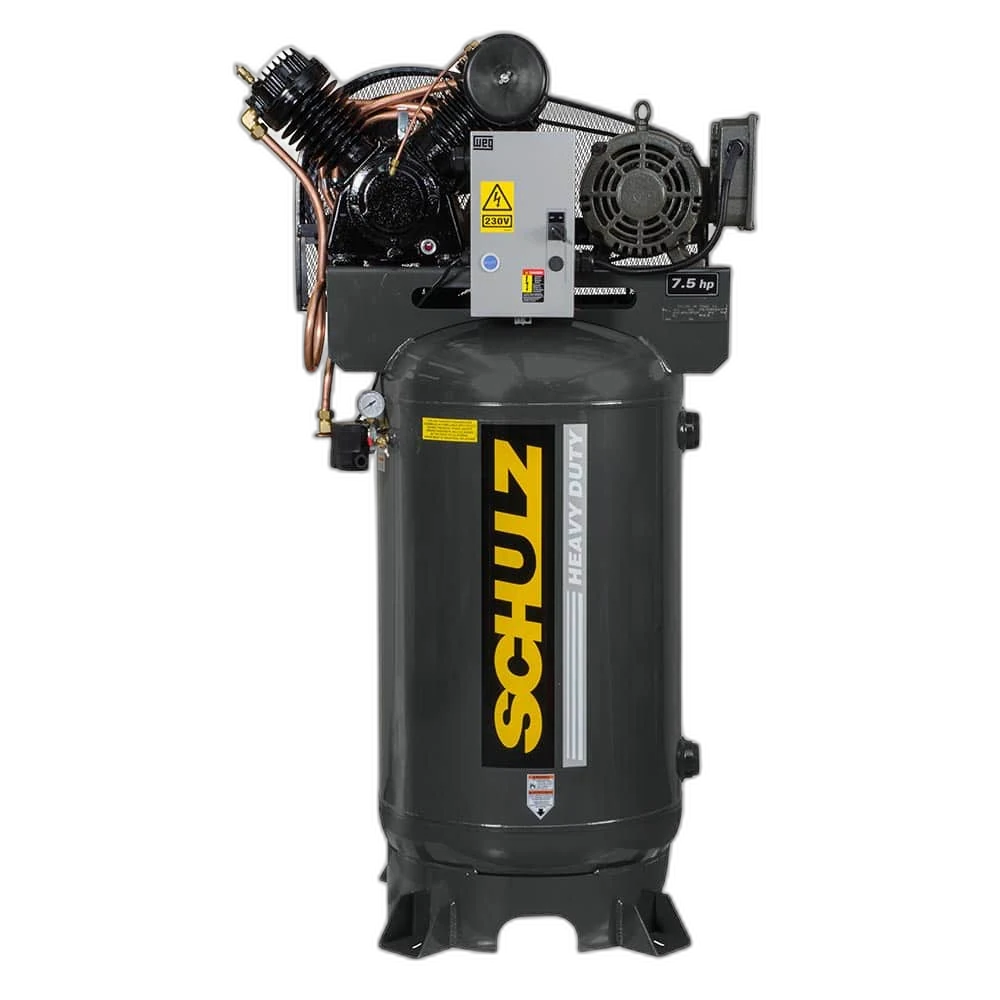

Schulz 932.9341-0 – 7.5 HP 80-Gallon 2-Stage Air Compressor

The Schulz 932.9341-0 is a 7.5 HP two-stage oil-lubricated reciprocating air compressor delivering 20.1 SCFM (FAD) at 175 PSI into an 80-gallon vertical ASME tank. Powered by 230V single-phase; uses the MSV-30MAX cast-iron V-cylinder pump with splash lubrication, belt drive, aftercooler, and magnetic starter. Weight 728 lbs; dimensions 48″L × 42″W × 81″H. Suitable for auto shops, body shops, and light industrial use. Warranty: 1 year unit, 2 years on the pump.

7.50

CFM

30 @ 175 PSI

Duty

— continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

4CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$120$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash-lubricated

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM30 @ 175 PSI

CFM / HP4

Cut-in / out145 / 175 PSI

Tank fill—

Est. draw6.6 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $2,363

Maintenance · yearlyEst. $188

Savings with Compressor Controller · yearlyEst. $544–$993

ELECTRICAL & FORM

Serviceelectric

Voltage230/1ph

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight584 lb

Form— · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 181 · 7.5 HP

Sizing & pricevs. 181 in class

SCFM @ 7.5 HP30cfm
20median 2457
+25% vs. median
Average price$4,019
$1,698median $5,117$19k
-21.5% vs. median

Efficiency vs. peersvs. 181 in class

CFM per HP4cfm/hp
2.67median 3.27.65
+25% vs. median
Price per CFM$129$/scfm
$73median $208$632
-38.1% vs. median

Where this is sold

Find an installer / dealer near youAuthorized Schulz dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

factorypure.com

plumbestore.com

Mechanic Superstore

Compressedairadvisors
