What horsepower is the Schulz 932.9337-0 air compressor?

The Schulz 932.9337-0 is rated at 15 HP.

How much air does the Schulz 932.9337-0 produce?

The Schulz 932.9337-0 delivers 45.2 SCFM at 175 PSI.

What size tank does the Schulz 932.9337-0 have?

The Schulz 932.9337-0 has a 120-gallon tank.

Is the Schulz 932.9337-0 single-stage or two-stage?

The Schulz 932.9337-0 is a two-stage compressor.

What voltage does the Schulz 932.9337-0 require?

The Schulz 932.9337-0 runs on 208-230V/3-phase.

What is the Schulz 932.9337-0 best for?

The Schulz 932.9337-0 is best suited for Heavy manufacturing, auto shops, industrial facilities needing 45 CFM continuous.

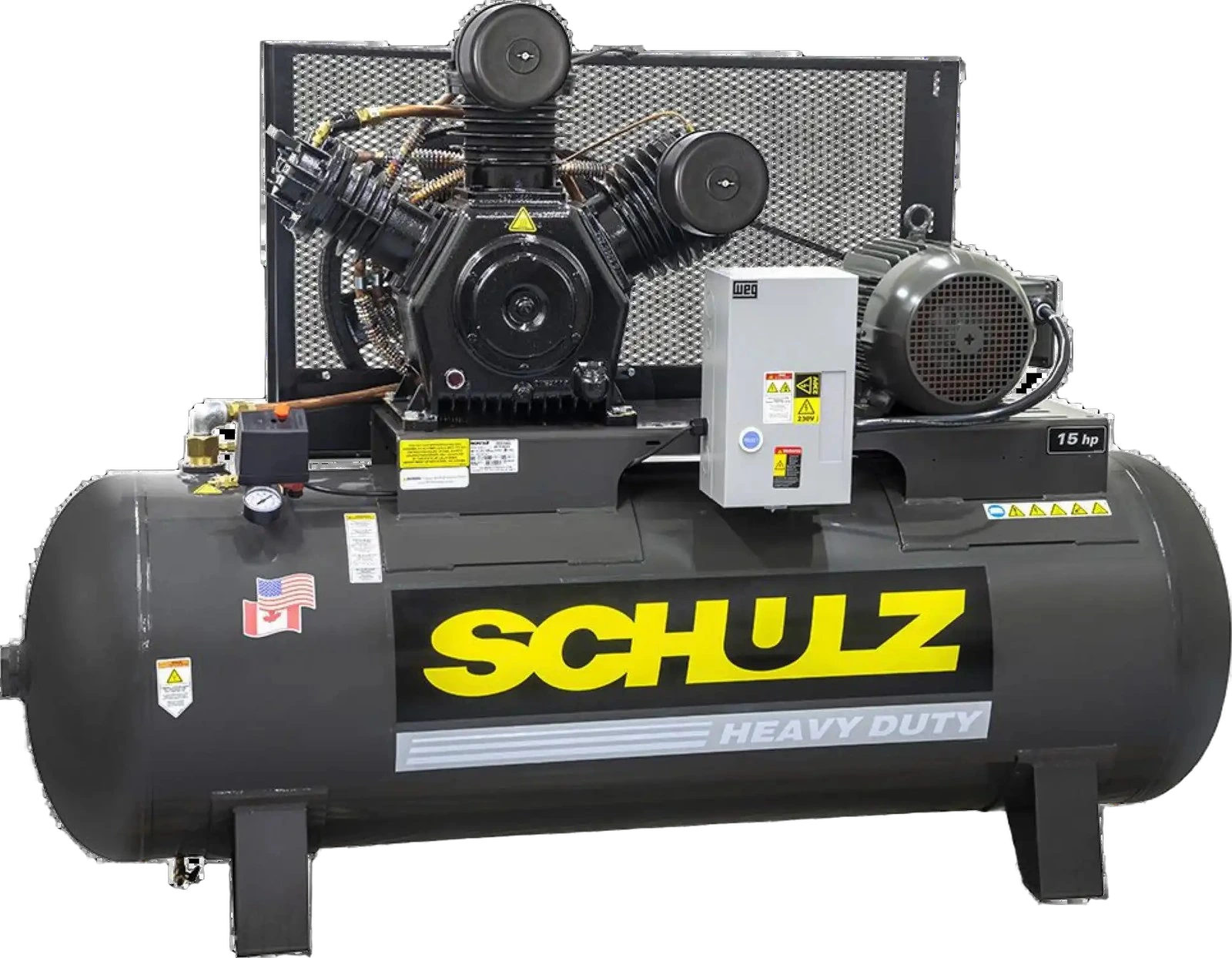

Schulz 932.9337-0 – 15 HP 120-Gallon 2-Stage Air Compressor

The Schulz 932.9337-0 is a 15 HP two-stage splash-lubricated reciprocating air compressor delivering 45.2 SCFM at 175 PSI into a 120-gallon horizontal ASME tank. Powered by 208-230V three-phase with an MSW-60MAX cast-iron pump, belt drive, and prewired magnetic starter. Dimensions: 78.3″L × 28.7″W × 51.2″H; weight 936 lbs. Suited for heavy manufacturing and industrial facilities. Warranty: 1 year unit, 2 years on the pump.

CFM

45.2 @ 175 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.01CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$113$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM1065 rpm

Lubricationsplash-lubricated

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM45.2 @ 175 PSI

CFM / HP3.01

Cut-in / out145 / 175 PSI

Tank fill—

Est. draw13.2 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $4,727

Maintenance · yearlyEst. $375

Savings with Compressor Controller · yearlyEst. $1,087–$1,985

ELECTRICAL & FORM

Serviceelectric

Voltage208-230V/3-phase

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight936 lb

Form— · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 83 · 15 HP

Sizing & pricevs. 83 in class

SCFM @ 15 HP45.2cfm
17median 51111
-11.4% vs. median
Average price$5,699
$4,621median $9,591$25k
-40.6% vs. median

Efficiency vs. peersvs. 83 in class

CFM per HP3.01cfm/hp
1.15median 3.47.44
-11.4% vs. median
Price per CFM$113$/scfm
$96median $188$443
-39.8% vs. median
