What horsepower is the Schulz 10120HL40X-3 air compressor?

The Schulz 10120HL40X-3 is rated at 10 HP.

How much air does the Schulz 10120HL40X-3 produce?

The Schulz 10120HL40X-3 delivers 28.4 SCFM at 175 PSI.

What size tank does the Schulz 10120HL40X-3 have?

The Schulz 10120HL40X-3 has a 120-gallon horizontal_tank tank.

Is the Schulz 10120HL40X-3 single-stage or two-stage?

The Schulz 10120HL40X-3 is a two-stage compressor.

What voltage does the Schulz 10120HL40X-3 require?

The Schulz 10120HL40X-3 runs on 460V/3ph.

What is the Schulz 10120HL40X-3 best for?

The Schulz 10120HL40X-3 is best suited for Auto shops, small manufacturing, 460V industrial facilities.

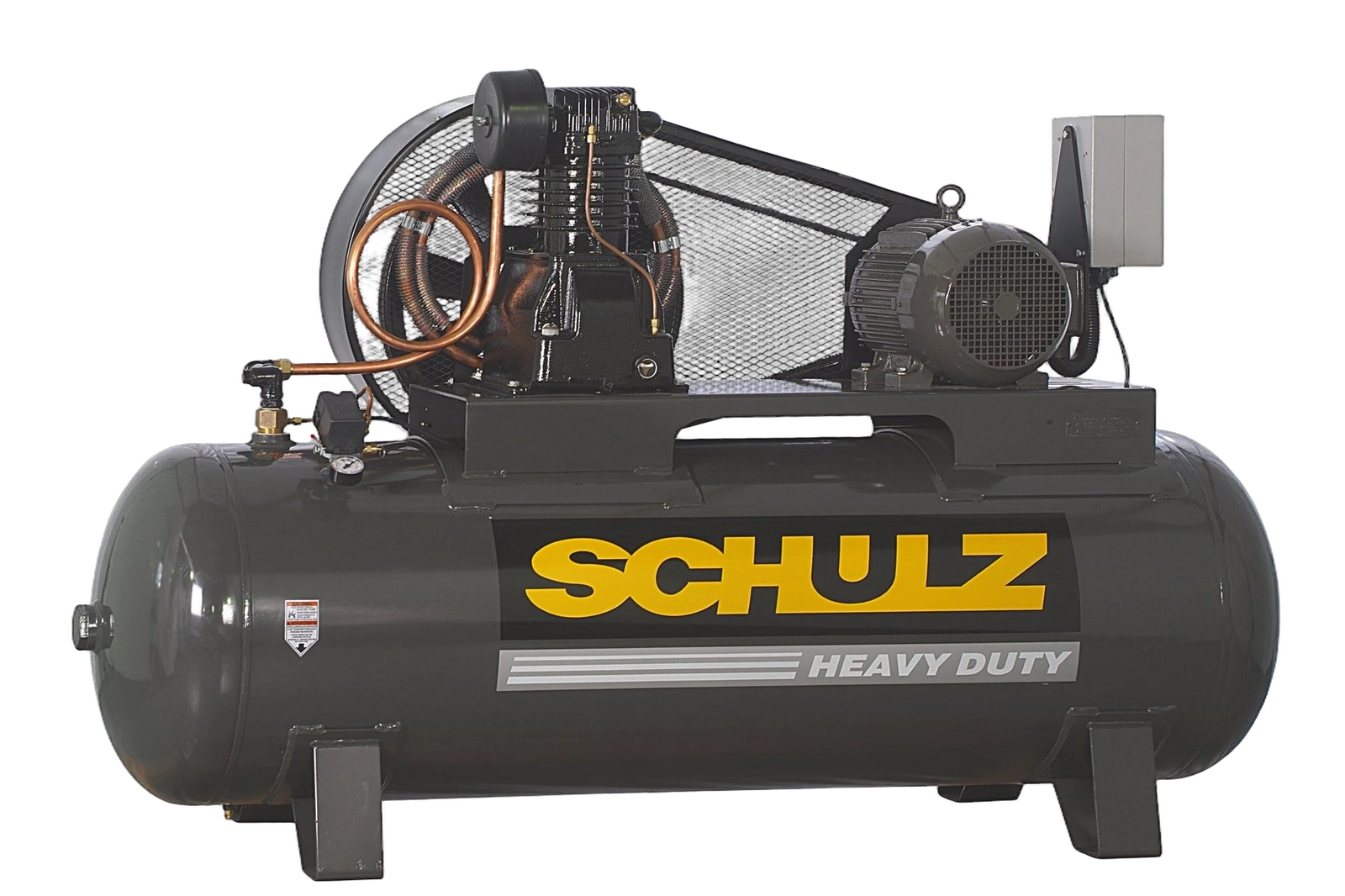

Schulz 932.9327-0-460/3 – 10 HP 120-Gallon Air Compressor

The Schulz 10120HL40X-3 (MPN 932.9327-0-460/3) is a 10 HP two-stage L-Series cast-iron reciprocating air compressor delivering 28.4 SCFM at 175 PSI into a 120-gallon horizontal ASME tank. Runs on 460V three-phase with the MSL-40MAX pump, splash lubrication, belt drive, and double-supported low-RPM crankshaft. Suited for auto shops and industrial facilities on 460V. Warranty: 2 years on the pump.

CFM

28.4 @ 175 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

2.84CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$160$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM1050 rpm

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM28.4 @ 175 PSI

CFM / HP2.84

Cut-in / out145 / 175 PSI

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

Savings with Compressor Controller · yearlyEst. $725–$1,323

ELECTRICAL & FORM

Serviceelectric

Voltage460V/3ph

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight855 lb

FormHorizontal_tank · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 127 · 10 HP

Sizing & pricevs. 127 in class

SCFM @ 10 HP28.4cfm
17median 34.279
-17% vs. median
Average price$4,753
$3,555median $7,494$27k
-36.6% vs. median

Efficiency vs. peersvs. 127 in class

CFM per HP2.84cfm/hp
1.72median 3.427.96
-17% vs. median
Price per CFM$166$/scfm
$103median $210$517
-21.3% vs. median
