What horsepower is the Schulz P7580VL30X-3 air compressor?

The Schulz P7580VL30X-3 is rated at 7.5 HP.

How much air does the Schulz P7580VL30X-3 produce?

The Schulz P7580VL30X-3 delivers 21.6 SCFM at 175 PSI.

What size tank does the Schulz P7580VL30X-3 have?

The Schulz P7580VL30X-3 has a 80-gallon vertical_tank tank.

Is the Schulz P7580VL30X-3 single-stage or two-stage?

The Schulz P7580VL30X-3 is a two-stage compressor.

What voltage does the Schulz P7580VL30X-3 require?

The Schulz P7580VL30X-3 runs on 208-230V/3ph.

What is the Schulz P7580VL30X-3 best for?

The Schulz P7580VL30X-3 is best suited for Auto shops, body shops, professional workshops — premium 3-phase 7.5HP.

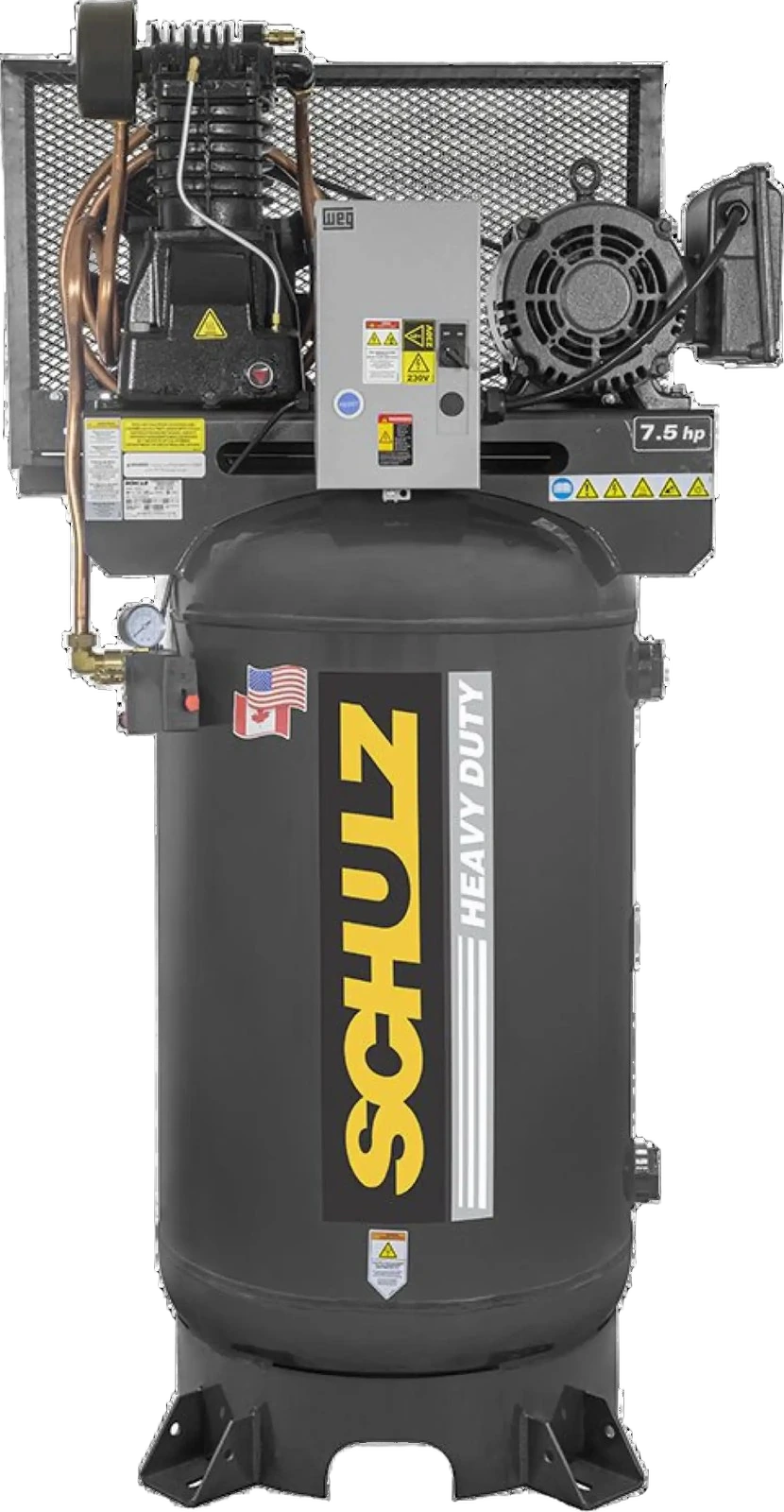

Schulz 932.9322-P – 7.5 HP 80-Gallon Vertical Air Compressor

The Schulz P7580VL30X-3 (MPN 932.9322-P) is a Premium-series 7.5 HP two-stage cast-iron reciprocating air compressor delivering 21.6 SCFM at 175 PSI into an 80-gallon vertical ASME tank. Runs on 208-230V three-phase with the MSL-30MAX pump, belt drive, mounted aftercooler, automatic tank drain, oil level sensors, and UL-certified prewired magnetic starter. Dimensions: 33.8″L × 25.2″W × 78.7″H; weight 578 lbs. Warranty: 1 year.

7.50

CFM

21.6 @ 175 PSI

Duty

— continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

2.88CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$289$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM610 rpm

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM21.6 @ 175 PSI

CFM / HP2.88

Cut-in / out145 / 175 PSI

Tank fill—

Est. draw6.6 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $2,363

Maintenance · yearlyEst. $188

Savings with Compressor Controller · yearlyEst. $544–$993

ELECTRICAL & FORM

Serviceelectric

Voltage208-230V/3ph

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight578 lb

FormVertical_tank · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 182 · 7.5 HP

Sizing & pricevs. 182 in class

SCFM @ 7.5 HP21.6cfm
20median 2457
-10% vs. median
Average price$6,248
$1,698median $5,117$19k
+22.1% vs. median

Efficiency vs. peersvs. 182 in class

CFM per HP2.88cfm/hp
2.67median 3.27.65
-10% vs. median
Price per CFM$289$/scfm
$69median $211$632
+36.3% vs. median
