What horsepower is the Schulz 932.7452-P-460/3 air compressor?

The Schulz 932.7452-P-460/3 is rated at 20 HP.

How much air does the Schulz 932.7452-P-460/3 produce?

The Schulz 932.7452-P-460/3 delivers 58.4 SCFM at 175 PSI.

What size tank does the Schulz 932.7452-P-460/3 have?

The Schulz 932.7452-P-460/3 has a 120-gallon tank.

Is the Schulz 932.7452-P-460/3 single-stage or two-stage?

The Schulz 932.7452-P-460/3 is a two-stage compressor.

What voltage does the Schulz 932.7452-P-460/3 require?

The Schulz 932.7452-P-460/3 runs on 208-230/460/3.

What is the Schulz 932.7452-P-460/3 best for?

The Schulz 932.7452-P-460/3 is best suited for High-output two-stage industrial air, 20 HP class; production shops, large fabrication, automotive groups..

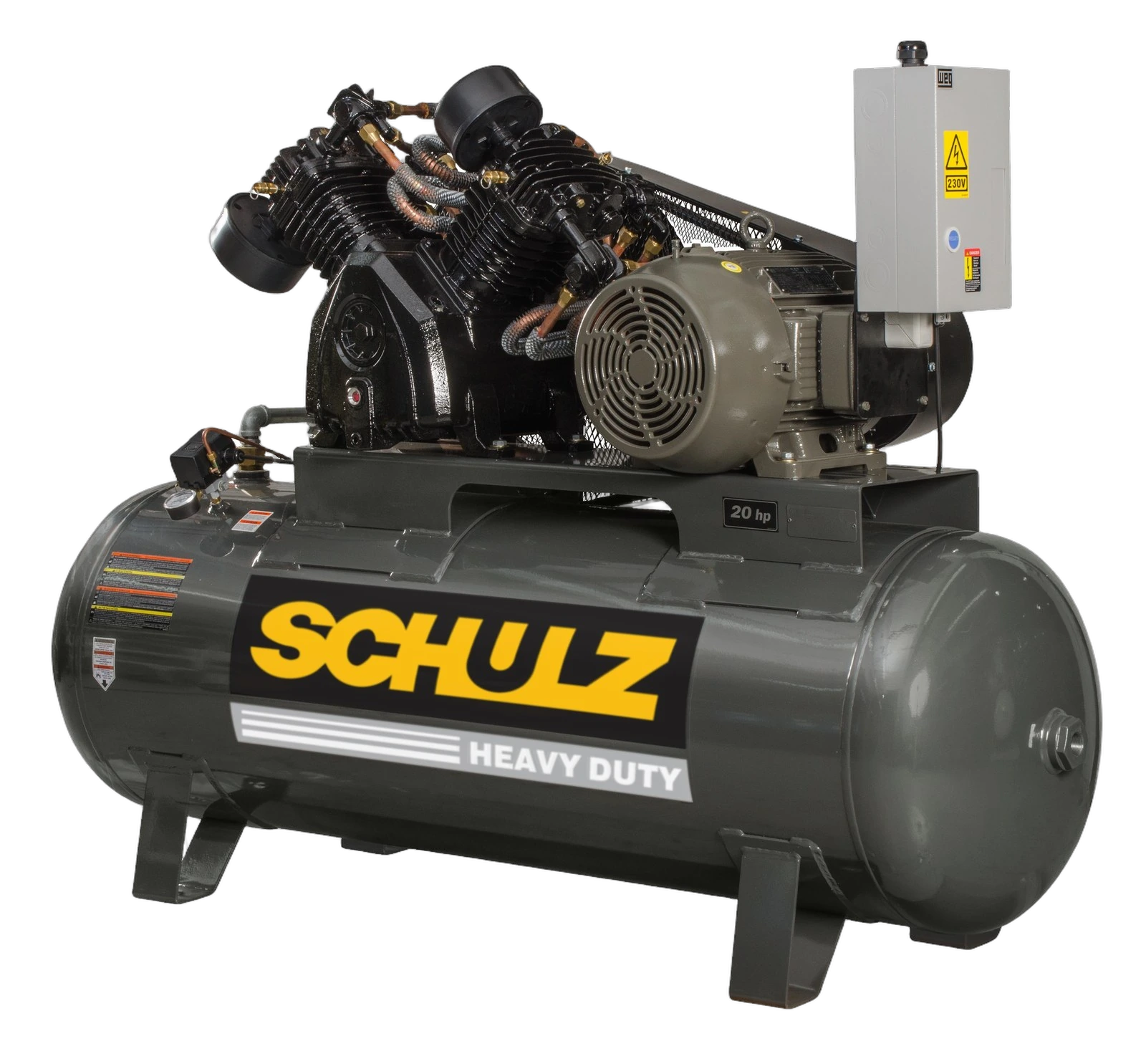

Schulz 932.7452-P-460/3 – 20 HP 120-Gallon Air Compressor

The Schulz P20120HLV80BR (part 932.7452-P) is a 20 HP two-stage cast-iron reciprocating air compressor delivering 58.4 SCFM at 175 PSI on a 120-gallon horizontal tank, wired for 208-230/460V three-phase power. The pump is splash-lubricated using Schulz SG-TM 30 semi-synthetic compressor oil. Schulz’s L-Series industrial reciprocating units target heavy-duty intermittent shop and light-industrial air at three-phase facilities, supporting production tools, sandblasting, and plant air with two-stage cast-iron construction for sustained pressure build. Key gaps: duty cycle percentage, pump RPM, noise level (dB), and dimensional/weight specs not confirmed from primary manufacturer documentation.

CFM

58.4 @ 175 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

2.92CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$200$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylindertwo-stage cast iron

Pump RPM—

Lubricationsplash

OilSchulz SG-TM 30 / SS-30 semi-synthetic

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM58.4 @ 175 PSI

CFM / HP2.92

Cut-in / out—

Tank fill—

Est. draw17.6 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $6,302

Maintenance · yearlyEst. $500

Savings with Compressor Controller · yearlyEst. $1,450–$2,647

ELECTRICAL & FORM

Serviceelectric

Voltage208-230/460/3

Amps—

Motor—

Motor RPM—

Control—

Startermagnetic starter mounted

Weight1182 lb

Form— · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 40 · 20 HP

Sizing & pricevs. 40 in class

SCFM @ 20 HP58.4cfm
58median 7092
-16.6% vs. median
Average price$11,709
$8,083median $15,183$39k
-22.9% vs. median

Efficiency vs. peersvs. 40 in class

CFM per HP2.92cfm/hp
2.92median 3.54.61
-16.6% vs. median
Price per CFM$200$/scfm
$101median $203$589
-1.7% vs. median
