Schulz · V-Series · TWO-STAGE PISTON

580VL30X-1

5 HP · electric · oil-lubricated · 2-stage
AVERAGE PRICE
$3,162
2 retailers · in stock

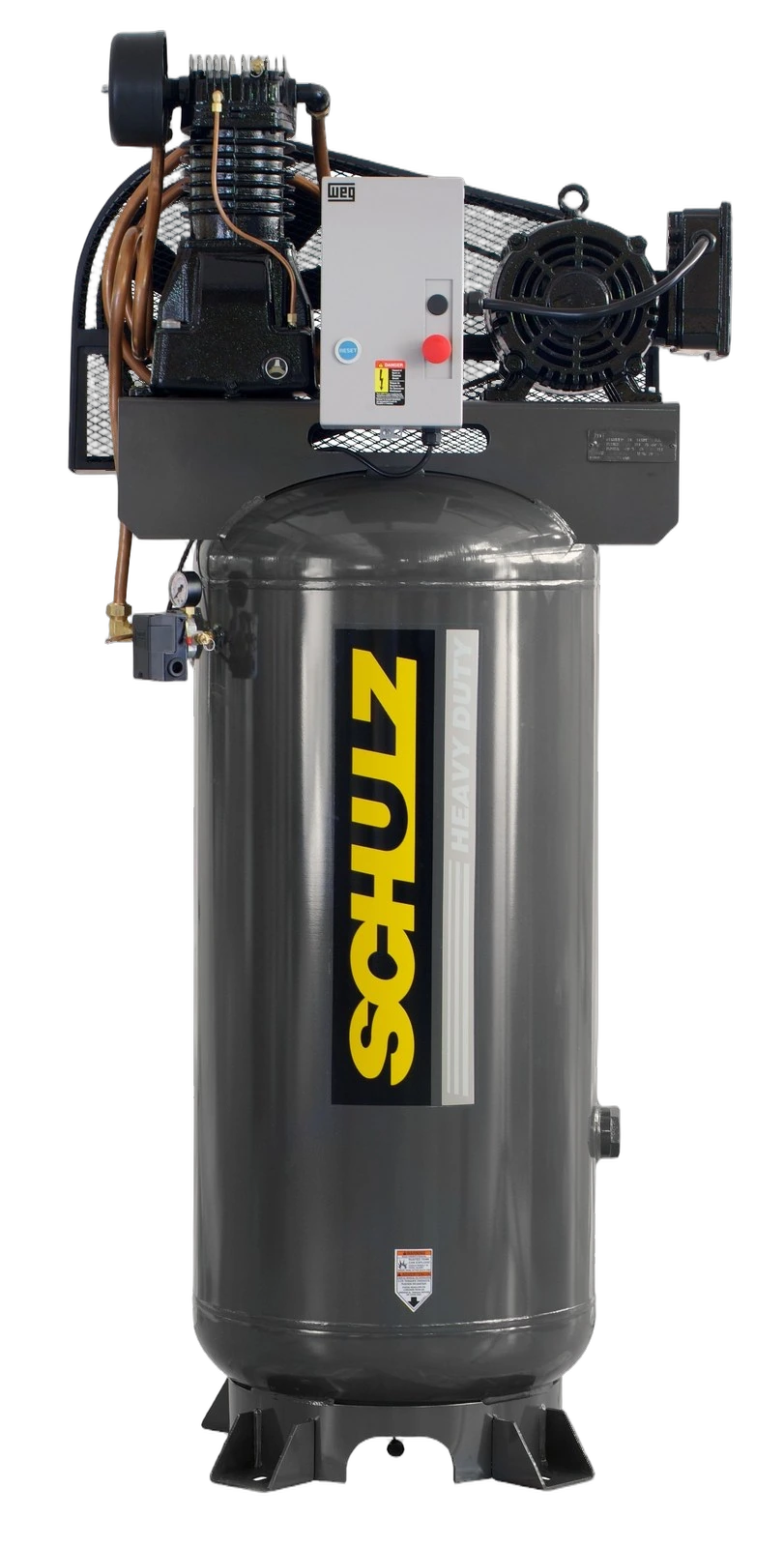

Schulz 580VL30X-1

The Schulz 580VL30X-1 is a 5 HP two-stage oil-lubricated reciprocating air compressor delivering 17 SCFM at 175 PSI into an 80-gallon vertical ASME tank. Powered by 230V single-phase, it uses the MSL-30MAX cast-iron pump with splash lubrication, belt drive, and a prewired magnetic starter. Built for auto repair shops, tire shops, body shops, and small industrial facilities. Warranty: 1 year on the unit, 2 years on the pump.

HP
5
CFM
17 @ 175 PSI
Duty
— continuous
Tank size
80 gal
Air output per horsepowerAirflow per motor HP
3.40CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 2-stage piston
67%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$174$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages2-stage recip
Cylinder—
Pump RPM610 rpm
Lubricationoil-lubricated
Oil—
Sump—
Pump life—
Pump material—
Head material—
Intercooler—
PERFORMANCE
Catalog CFM17 @ 175 PSI
CFM / HP3.40
Cut-in / out145 / 175 PSI
Tank fill—
Est. draw4.4 kW
COST & MAINTENANCE
Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric
Electric · yearlyEst. $1,576
Maintenance · yearlyEst. $125
Savings with Compressor Controller · yearlyEst. $362–$662
ELECTRICAL & FORM
Serviceelectric
Voltage230
Amps—
Motor—
Motor RPM—
Control—
Starter—
Weight502 lb
Form— · 80 gal
BUILD & ENVIRONMENT
Air outlet—
Drain—
Drain outlet—
ASME tank—
Made in USA—
Noise—
Op. temp—
Dimensions—
Ship weight—
Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1708 units
Peer class
160 · 5 HP
Sizing & pricevs. 160 in class
  • SCFM @ 5 HP17cfm
    10median 17.238
    -1.2% vs. median
  • Average price$3,162
    $962median $4,182$17k
    -24.4% vs. median
Efficiency vs. peersvs. 160 in class
  • CFM per HP3.4cfm/hp
    2.08median 3.447.64
    -1.2% vs. median
  • Price per CFM$174$/scfm
    $82median $235$864
    -26.1% vs. median
Where this is sold5 verified retailers · USD
Find an installer / dealer near youAuthorized Schulz dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$2,902$3,187$3,473$3,758avg $3,382today-10d-20d-30d
