How much air does the Saylor-Beall X-92520 Duplex (25 HP x 2, 200 gal, 9000 series) produce?

The Saylor-Beall X-92520 Duplex (25 HP x 2, 200 gal, 9000 series) delivers 179.2 SCFM at 175 PSI.

What size tank does the Saylor-Beall X-92520 Duplex (25 HP x 2, 200 gal, 9000 series) have?

The Saylor-Beall X-92520 Duplex (25 HP x 2, 200 gal, 9000 series) has a 200-gallon tank.

Is the Saylor-Beall X-92520 Duplex (25 HP x 2, 200 gal, 9000 series) single-stage or two-stage?

The Saylor-Beall X-92520 Duplex (25 HP x 2, 200 gal, 9000 series) is a two-stage compressor.

What voltage does the Saylor-Beall X-92520 Duplex (25 HP x 2, 200 gal, 9000 series) require?

The Saylor-Beall X-92520 Duplex (25 HP x 2, 200 gal, 9000 series) runs on 230/460.

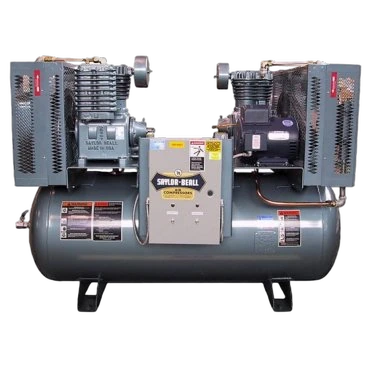

Saylor-Beall X-92520 – 50 HP 200-Gallon Air Compressor

Saylor-Beall X-92520 Duplex (25 HP x 2, 200 gal, 9000 series) is a 50.00 HP 179.20 CFM at 175 PSI 2-stage reciprocating compressor with a 200.0-gallon receiver tank, operating at 230/460. Shipping weight is 3331 lb. This unit belongs to the Saylor-Beall X series. Suitable for auto shop, body shop, or light manufacturing.

CFM

179.2 @ 175 PSI

Duty

— continuous

Tank size

200 gal

Air output per horsepowerAirflow per motor HP

3.58CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$163$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder4-cylinder, 2-stage

Pump RPM460 rpm

Lubricationsplash

OilISO 100 non-detergent compressor oil

Sump—

Pump life40,000 hrs

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM179.2 @ 175 PSI

CFM / HP3.58

Cut-in / out—

Tank fill—

Est. draw43.9 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $15,756

Maintenance · yearlyEst. $1,250

Savings with Compressor Controller · yearlyEst. $3,624–$6,617

ELECTRICAL & FORM

Service—

Voltage230/460

Amps—

Motor—

Motor RPM1750 rpm

Controlduplex panel, lead/lag

Startermagnetic with alternator

Weight3331 lb

Form— · 200 gal · 225 PSI tank rating

BUILD & ENVIRONMENT

Air outlet1 in NPT

DrainManual ball valve standard

Drain outlet—

ASME tankYes

Made in USAYes

Noise—

Op. temp40–104 °F

Dimensions—

Ship weight3331 lb

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 3 · 50 HP

Sizing & pricevs. 3 in class

SCFM @ 50 HP179.2cfm
170median 179.2181
0% vs. median
Average price$29,142
$27,972median $28,197$28k
+3.3% vs. median

Efficiency vs. peersvs. 3 in class

CFM per HP3.58cfm/hp
3.4median 3.583.63
-0% vs. median
Price per CFM$157$/scfm
$157median $157$164
-0% vs. median

Where this is sold

Westech Equipment
Verified —
$29,142
Lowest

Find an installer / dealer near youAuthorized Saylor-Beall dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

Westech Equipment
