How much air does the Saylor-Beall X-91520 Duplex (15 HP x 2, 200 gal, 9000 series) produce?

The Saylor-Beall X-91520 Duplex (15 HP x 2, 200 gal, 9000 series) delivers 122.4 SCFM at 175 PSI.

What size tank does the Saylor-Beall X-91520 Duplex (15 HP x 2, 200 gal, 9000 series) have?

The Saylor-Beall X-91520 Duplex (15 HP x 2, 200 gal, 9000 series) has a 200-gallon tank.

Is the Saylor-Beall X-91520 Duplex (15 HP x 2, 200 gal, 9000 series) single-stage or two-stage?

The Saylor-Beall X-91520 Duplex (15 HP x 2, 200 gal, 9000 series) is a two-stage compressor.

What voltage does the Saylor-Beall X-91520 Duplex (15 HP x 2, 200 gal, 9000 series) require?

The Saylor-Beall X-91520 Duplex (15 HP x 2, 200 gal, 9000 series) runs on 208/230/460.

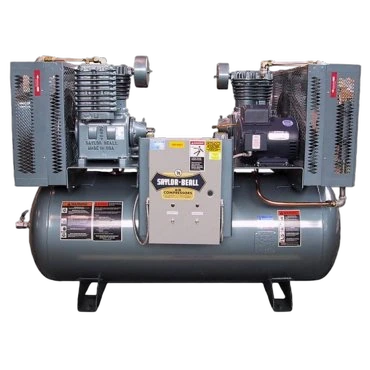

Saylor-Beall X-91520 – 30 HP 200-Gallon Air Compressor

Saylor-Beall X-91520 Duplex (15 HP x 2, 200 gal, 9000 series) is a 30.00 HP 122.40 CFM at 175 PSI 2-stage reciprocating compressor with a 200.0-gallon receiver tank, operating at 208/230/460. Shipping weight is 3081 lb. This unit belongs to the Saylor-Beall X series. Suitable for auto shop, body shop, or light manufacturing.

CFM

122.4 @ 175 PSI

Duty

— continuous

Tank size

200 gal

Air output per horsepowerAirflow per motor HP

4.08CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$218$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder4-cylinder, 2-stage

Pump RPM480 rpm

Lubricationsplash

OilISO 100 non-detergent compressor oil

Sump—

Pump life40,000 hrs

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM122.4 @ 175 PSI

CFM / HP4.08

Cut-in / out—

Tank fill—

Est. draw26.3 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $9,453

Maintenance · yearlyEst. $750

Savings with Compressor Controller · yearlyEst. $2,174–$3,970

ELECTRICAL & FORM

Service—

Voltage208/230/460

Amps—

Motor—

Motor RPM1750 rpm

Controlduplex panel, lead/lag

Startermagnetic with alternator

Weight3081 lb

Form— · 200 gal · 225 PSI tank rating

BUILD & ENVIRONMENT

Air outlet1 in NPT

DrainManual ball valve standard

Drain outlet—

ASME tankYes

Made in USAYes

Noise—

Op. temp40–104 °F

Dimensions—

Ship weight3081 lb

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 24 · 30 HP

Sizing & pricevs. 24 in class

SCFM @ 30 HP122.4cfm
77median 99.1203
+23.6% vs. median
Average price$26,704
$11,317median $20,778$45k
+28.5% vs. median

Efficiency vs. peersvs. 24 in class

CFM per HP4.08cfm/hp
2.58median 3.376.79
+21.1% vs. median
Price per CFM$211$/scfm
$116median $187$460
+12.4% vs. median
