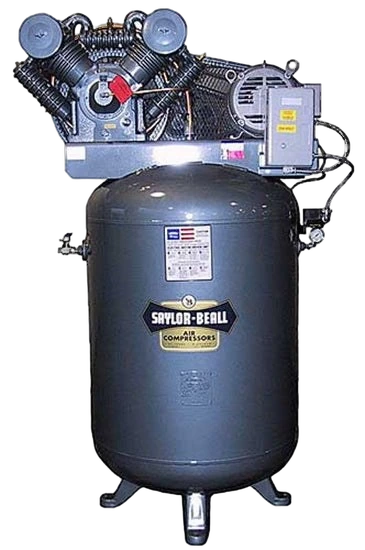

Saylor-Beall VT-745-120-230/3 is a 7.5 HP two-stage reciprocating air compressor delivering 26.2 SCFM at 175 PSI on a 120-gallon vertical tank, wired for 230V/3-phase. The splash-lubricated VT-series 707 cast-iron pump runs at 650 RPM and is rated for industrial continuous-duty applications including fabrication shops, automotive service bays, and production cells. This simplex configuration carries an ASME-certified tank and a magnetic starter (MS suffix). List price is approximately $7,622 through authorized industrial distributors. No consumer retail channel; purchasing requires contacting a Saylor-Beall dealer. Key specs: 7.5 HP motor, 26.2 CFM at 175 PSI, 120-gal tank, 230V/3-phase, 2-stage splash-lubed cast-iron piston, simplex.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 181 · 7.5 HP
- SCFM @ 7.5 HP26.2cfm20median 2457+9.2% vs. median
- Average price$7,622$1,799median $4,971$19k+53.3% vs. median
- CFM per HP3.49cfm/hp2.67median 3.27.65+9.2% vs. median
- Price per CFM$291$/scfm$73median $208$632+39.3% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
