Saylor-Beall · 9000-Series · TWO-STAGE PISTON

91524-IC-460/3-MS

15 HP · electric · splash-lubricated · 2-stage
AVERAGE PRICE
$14,763
1 retailer

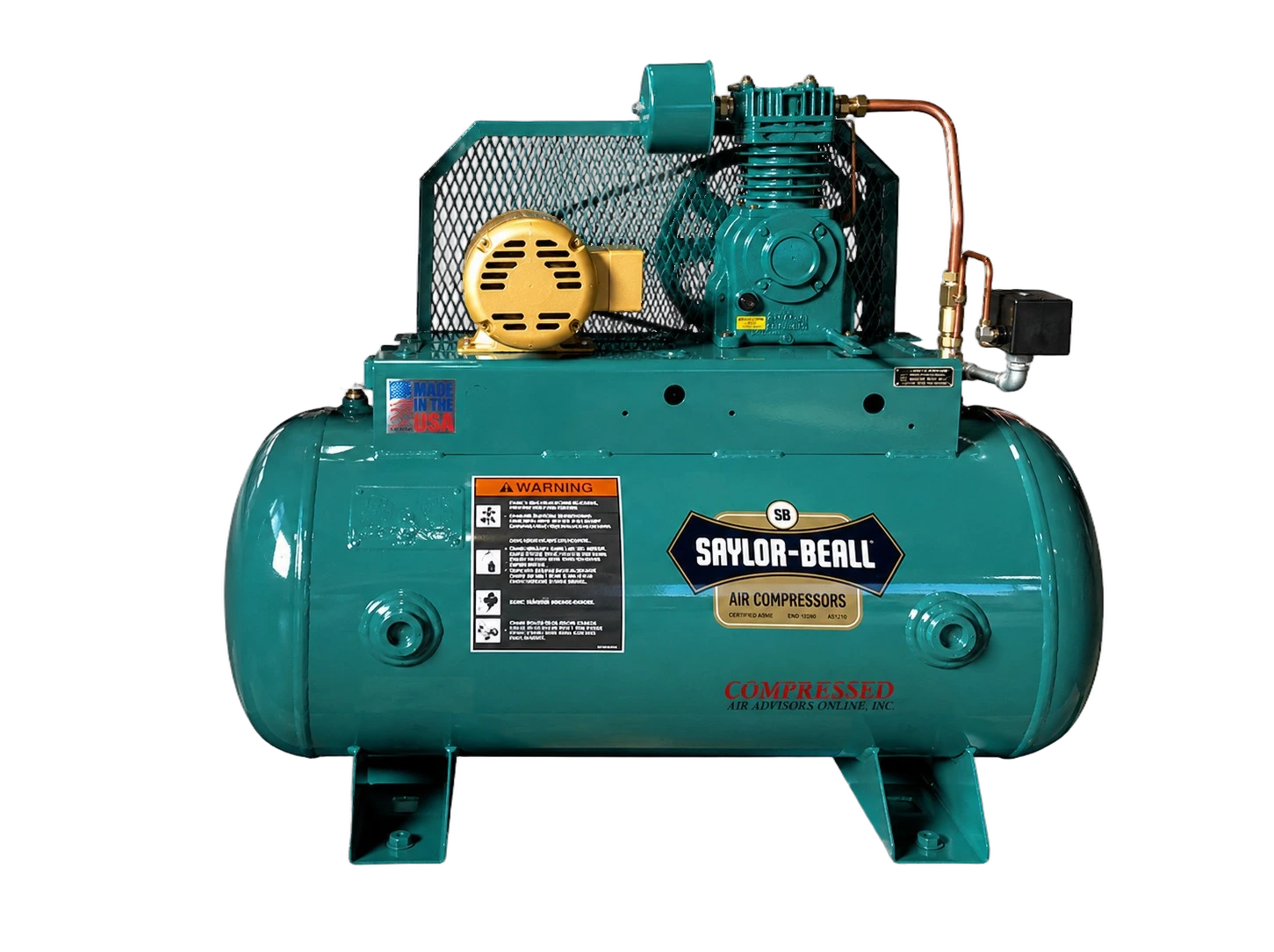

Saylor-Beall 91524-IC-460/3-MS

Saylor-Beall 91524-IC-460/3-MS is a 15 HP two-stage reciprocating industrial air compressor from the 9000-Series delivering 84.40 SCFM at 100 PSI maximum working pressure on a 200-gallon ASME tank. Splash-lubricated cast-iron pump with magnetic starter (MS suffix), wired for 460V three-phase (460/3 suffix). Verified list price $14,763. The 9000-Series is built for sustained industrial-duty applications and large multi-bay shops. Remaining gaps: duty cycle rating, weight, and bore/stroke not published; OEM datasheet URL not confirmed.

HP
15
CFM
84.4 @ 100 PSI
Duty
continuous
Tank size
200 gal
Air output per horsepowerAirflow per motor HP
5.63CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 2-stage piston
67%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$175$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages2-stage recip
Cylinder
Pump RPM
Lubricationsplash-lubricated
Oil
Sump
Pump life
Pump material
Head material
Intercooler
PERFORMANCE
Catalog CFM84.4 @ 100 PSI
CFM / HP5.63
Cut-in / out
Tank fill
Est. draw13.2 kW
COST & MAINTENANCE
Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric
Electric · yearlyEst. $4,727
Maintenance · yearlyEst. $375
Savings with Compressor Controller · yearlyEst. $1,087–$1,985
ELECTRICAL & FORM
Serviceelectric
Voltage460/3
Amps
Motor
Motor RPM
Control
Starter
Weight1601 lb
Form— · 200 gal
BUILD & ENVIRONMENT
Air outlet
Drain
Drain outlet
ASME tank
Made in USA
Noise
Op. temp
Dimensions
Ship weight
Warranty

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1655 units
Peer class
83 · 15 HP
Sizing & pricevs. 83 in class
  • SCFM @ 15 HP84.4cfm
    17median 51111
    +65.5% vs. median
  • Average price$14,763
    $4,621median $9,585$25k
    +54% vs. median
Efficiency vs. peersvs. 83 in class
  • CFM per HP5.63cfm/hp
    1.15median 3.47.44
    +65.5% vs. median
  • Price per CFM$175$/scfm
    $96median $188$443
    -7.2% vs. median

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$14,025$14,517$15,009$15,501avg $14,763today-10d-20d-30d
