Saylor-Beall · 700-series IC · TWO-STAGE PISTON

730-60-IC-460/3-MS

3 HP · Horizontal_tank · electric · splash · 2-stage
AVERAGE PRICE
$4,655
1 retailer

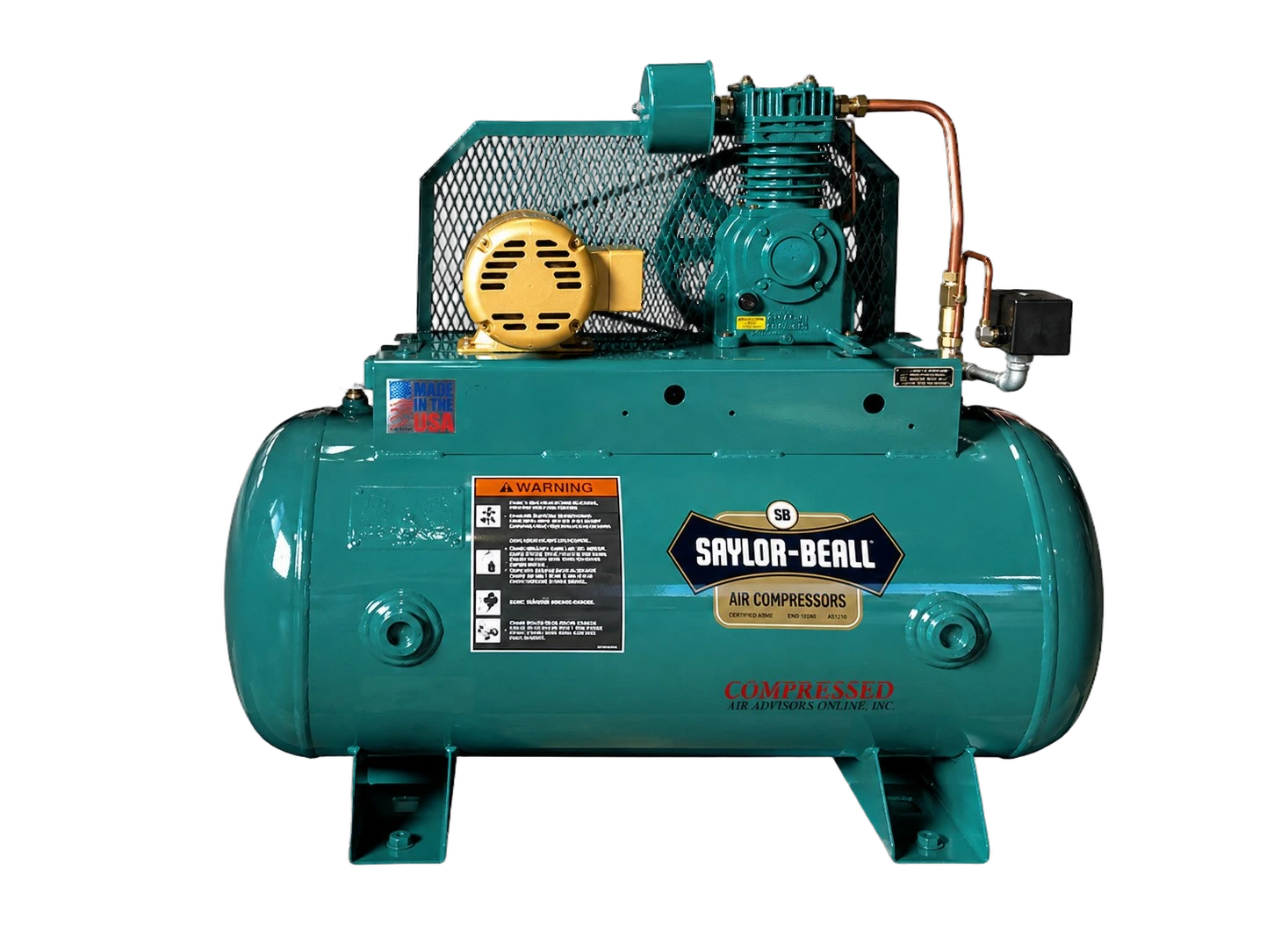

Saylor-Beall 730-60-IC-460/3-MS

Saylor-Beall 730-60-IC-460/3-MS is a 3.00 HP two-stage simplex air compressor delivering 12.00 CFM @ 100 PSI, 60.0-gallon tank, 460V/3ph. Part of the 700-series IC series. splash-lubricated pump. Saylor-Beall suspended retail distribution in 2022; pricing available through authorized dealers only. Designed for industrial and commercial shop applications requiring continuous-duty compressed air. The cast-iron construction and two-stage pump design provide extended service life in demanding environments.

HP
3
CFM
12 @ 100 PSI
Duty
— continuous
Tank size
60 gal
Air output per horsepowerAirflow per motor HP
4CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 2-stage piston
67%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$388$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages2-stage recip
Cylinder—
Pump RPM—
Lubricationsplash
Oil—
Sump—
Pump life—
Pump material—
Head material—
Intercoolerfinned-tube between-stage
PERFORMANCE
Catalog CFM12 @ 100 PSI
CFM / HP4
Cut-in / out—
Tank fill—
Est. draw2.6 kW
COST & MAINTENANCE
Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric
Electric · yearlyEst. $945
Maintenance · yearlyEst. $80
Savings with Compressor Controller · yearlyEst. $217–$397
ELECTRICAL & FORM
Serviceelectric
Voltage460V/3ph
Amps—
Motor—
Motor RPM—
Control—
Starter—
Weight554 lb
FormHorizontal_tank · 60 gal
BUILD & ENVIRONMENT
Air outlet—
Drain—
Drain outlet—
ASME tank—
Made in USA—
Noise—
Op. temp—
Dimensions—
Ship weight—
Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1708 units
Peer class
42 · 3 HP
Sizing & pricevs. 42 in class
  • SCFM @ 3 HP12cfm
    6median 9.621
    +25% vs. median
  • Average price$4,655
    $504median $4,073$10k
    +14.3% vs. median
Efficiency vs. peersvs. 42 in class
  • CFM per HP4cfm/hp
    2.17median 3.47.27
    +17.6% vs. median
  • Price per CFM$388$/scfm
    $77median $383$883
    +1.1% vs. median

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$4,422$4,577$4,733$4,888avg $4,655today-10d-20d-30d
