What horsepower is the RolAir FC2002R air compressor?

The RolAir FC2002R is rated at 2 HP.

How much air does the RolAir FC2002R produce?

The RolAir FC2002R delivers 4.1 SCFM at 90 PSI.

What is the maximum pressure of the RolAir FC2002R?

The RolAir FC2002R has a maximum operating pressure of 125 PSI.

What size tank does the RolAir FC2002R have?

The RolAir FC2002R has a 4.3-gallon portable tank.

Is the RolAir FC2002R single-stage or two-stage?

The RolAir FC2002R is a single-stage compressor.

What voltage does the RolAir FC2002R require?

The RolAir FC2002R runs on 115V.

What is the duty cycle of the RolAir FC2002R?

The RolAir FC2002R has a 100% duty cycle.

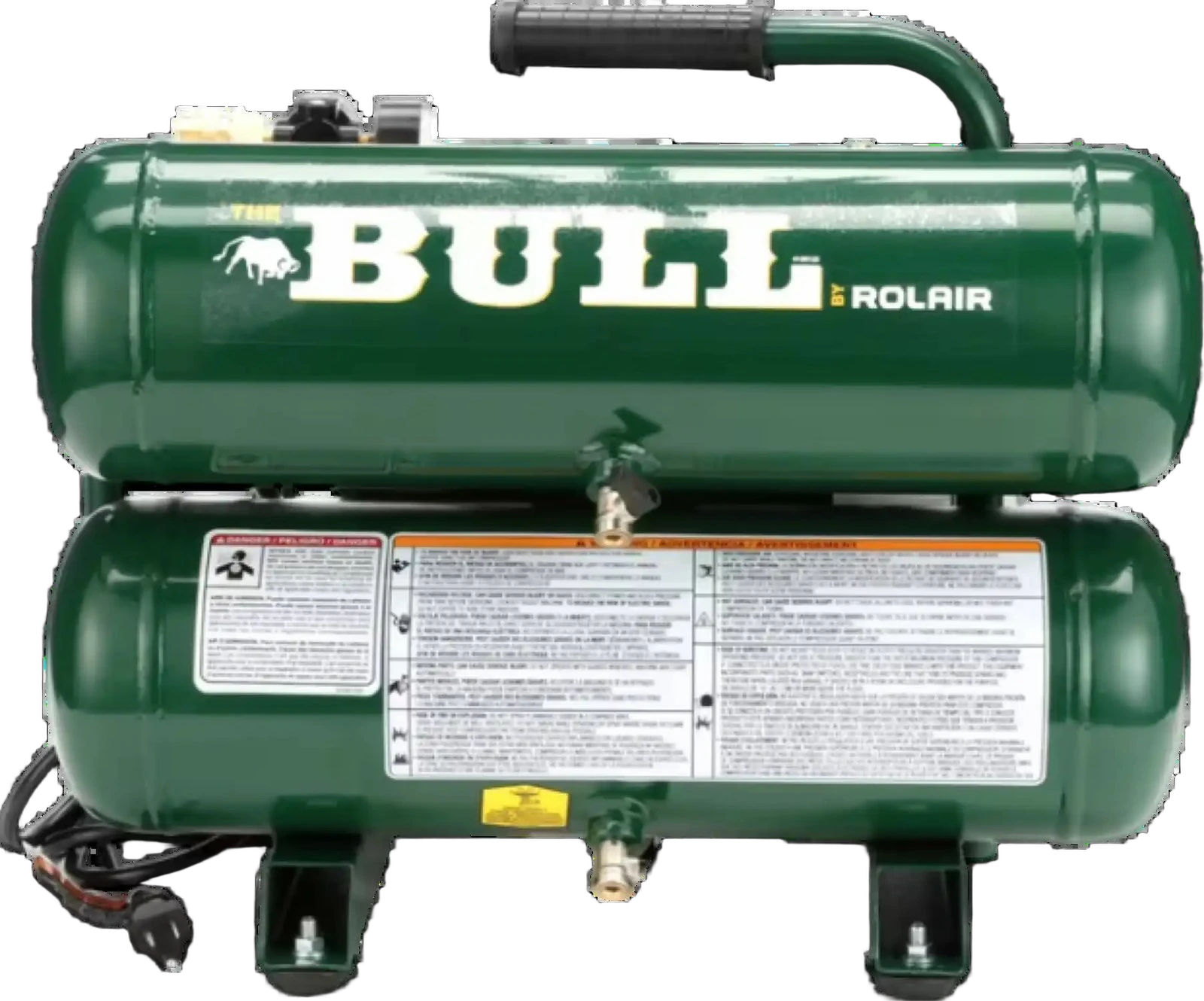

RolAir FC2002R – 2 HP 4.3-Gallon Portable Air Compressor

RolAir FC2002R manufacturer-refurbished hand-carry compressor: 2HP single-stage, 4.3-gal twin-stack tank, 4.1 CFM at 90 PSI, 125 PSI max, 115V single-phase, 90-day factory warranty.

CFM

4.1 @ 90 PSI

Duty

100% continuous

Tank size

4 gal

Air output per horsepowerAirflow per motor HP

2.05CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage piston

58%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$84$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage recip

Cylindersingle-stage

Pump RPM3400 rpm

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM4.1 @ 90 PSI

CFM / HP2.05

Cut-in / out—

Tank fill—

Est. draw1.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $630

Maintenance · yearlyEst. $80

Savings with Compressor Controller · yearlyEst. $145–$265

ELECTRICAL & FORM

Serviceelectric

Voltage115V

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight62 lb

FormPortable · 4 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise79 dBA

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 27 · 2 HP

Sizing & pricevs. 27 in class

SCFM @ 2 HP4.1cfm
4median 817
-48.8% vs. median
Average price$346
$308median $2,736$9k
-87.4% vs. median

Efficiency vs. peersvs. 27 in class

CFM per HP2.05cfm/hp
2median 48.65
-48.8% vs. median
Price per CFM$89$/scfm
$17median $267$1,101
-66.9% vs. median
