What horsepower is the Quincy 2153D12HCA23M air compressor?

The Quincy 2153D12HCA23M is rated at 15 HP.

How much air does the Quincy 2153D12HCA23M produce?

The Quincy 2153D12HCA23M delivers 51 SCFM at 175 PSI.

What size tank does the Quincy 2153D12HCA23M have?

The Quincy 2153D12HCA23M has a 120-gallon horizontal_tank tank.

Is the Quincy 2153D12HCA23M single-stage or two-stage?

The Quincy 2153D12HCA23M is a two-stage compressor.

What voltage does the Quincy 2153D12HCA23M require?

The Quincy 2153D12HCA23M runs on 230V/3ph.

What is the duty cycle of the Quincy 2153D12HCA23M?

The Quincy 2153D12HCA23M has a 100% duty cycle.

What is the Quincy 2153D12HCA23M best for?

The Quincy 2153D12HCA23M is best suited for Continuous-duty compressed air for production auto/fleet shops, fabrication, and light industrial plants on three-phase power..

Quincy 2020040895 – 15 HP 120-Gallon Air Compressor

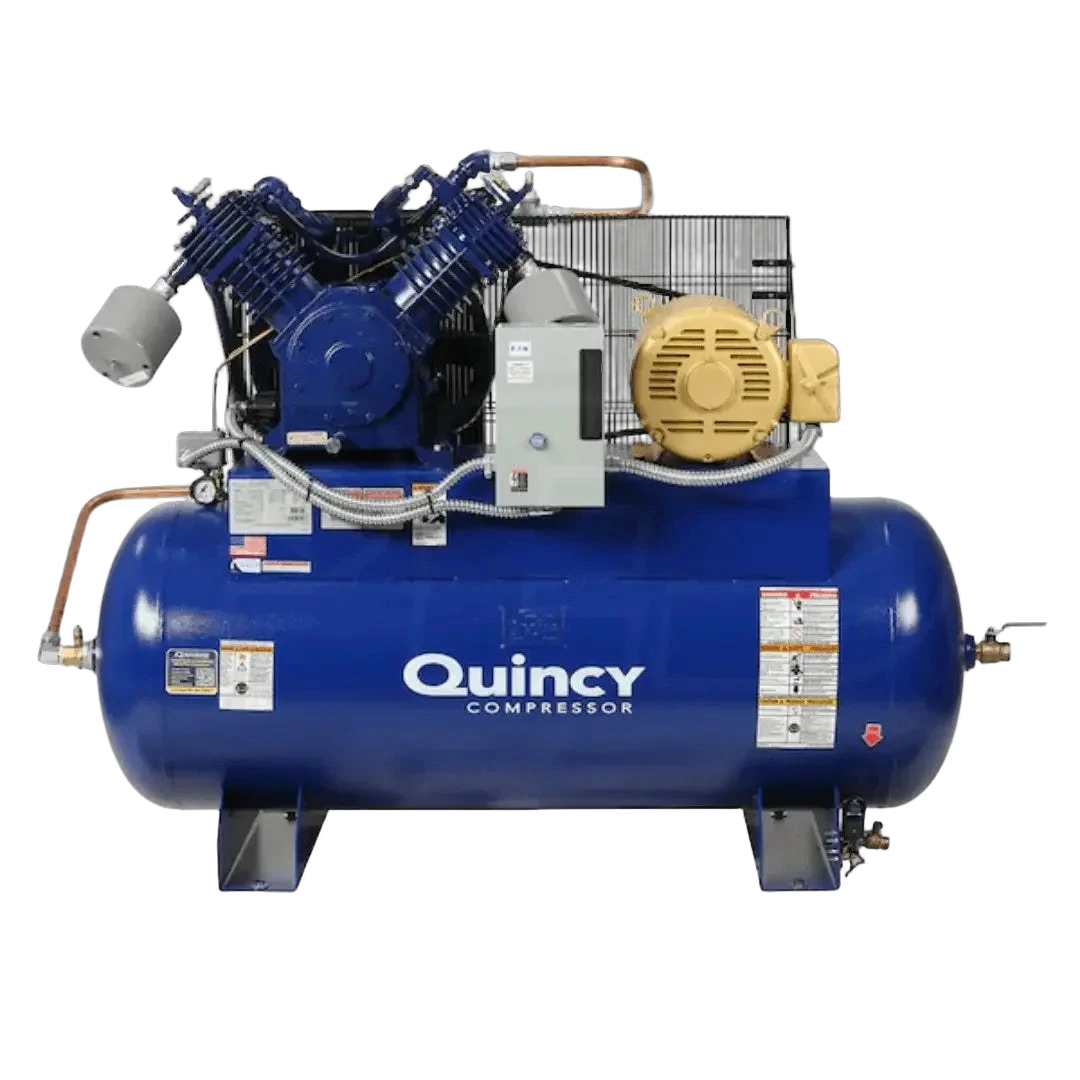

Quincy QT Max 2153D12HCA23M is a 15 HP two-stage reciprocating-industrial air compressor delivering 51 CFM @ 175 PSI on a 120-gallon horizontal tank at 230V three-phase. It runs at 100% duty cycle with splash lubrication and a finned-tube intercooler between stages. Cast-iron construction suits continuous industrial use. The unit ships with a magnetic starter and is available through authorized Quincy dealers. MPN 2020040895 is the SKU used in dealer ordering. Pricing is typically quote-only given the industrial configuration; list pricing around $9,960 has been observed. Primary specification source is the Quincy QT brochure (aircompressors.com). Weight and decibel rating are not published in available sources.

CFM

51 @ 175 PSI

Duty

100% continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.40CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$188$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

CylinderTwo-stage

Pump RPM923 rpm

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM51 @ 175 PSI

CFM / HP3.40

Cut-in / out—

Tank fill—

Est. draw13.2 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $4,727

Maintenance · yearlyEst. $375

Savings with Compressor Controller · yearlyEst. $1,087–$1,985

ELECTRICAL & FORM

Serviceelectric

Voltage230V/3ph

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight923 lb

FormHorizontal_tank · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 83 · 15 HP

Sizing & pricevs. 83 in class

SCFM @ 15 HP51cfm
17median 51111
0% vs. median
Average price$9,776
$4,621median $9,585$25k
+2% vs. median

Efficiency vs. peersvs. 83 in class

CFM per HP3.4cfm/hp
1.15median 3.47.44
0% vs. median
Price per CFM$188$/scfm
$96median $188$443
-0.2% vs. median

Where this is sold

Find an installer / dealer near youAuthorized Quincy dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

www.compressorpros.com

Mechanic Superstore
