What horsepower is the Quincy QT-15 Duplex (200 gal, QT2 pump) air compressor?

The Quincy QT-15 Duplex (200 gal, QT2 pump) is rated at 30 HP.

How much air does the Quincy QT-15 Duplex (200 gal, QT2 pump) produce?

The Quincy QT-15 Duplex (200 gal, QT2 pump) delivers 102 SCFM at 175 PSI.

What size tank does the Quincy QT-15 Duplex (200 gal, QT2 pump) have?

The Quincy QT-15 Duplex (200 gal, QT2 pump) has a 200-gallon horizontal tank.

Is the Quincy QT-15 Duplex (200 gal, QT2 pump) single-stage or two-stage?

The Quincy QT-15 Duplex (200 gal, QT2 pump) is a two-stage compressor.

What voltage does the Quincy QT-15 Duplex (200 gal, QT2 pump) require?

The Quincy QT-15 Duplex (200 gal, QT2 pump) runs on 230/460.

What is the duty cycle of the Quincy QT-15 Duplex (200 gal, QT2 pump)?

The Quincy QT-15 Duplex (200 gal, QT2 pump) has a 100% duty cycle.

What is the Quincy QT-15 Duplex (200 gal, QT2 pump) best for?

The Quincy QT-15 Duplex (200 gal, QT2 pump) is best suited for Production manufacturing, large body shops, redundant high-CFM duty.

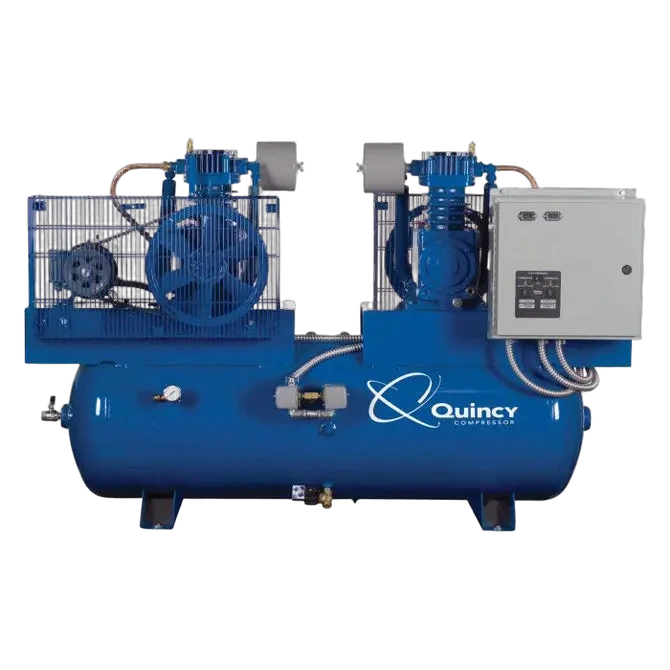

Quincy QT-15 Duplex (200 gal, QT2 pump) – Air Compressor

The Quincy QT-15 Duplex tops the QT splash-lubricated duplex line: two QT2 pumps with two 15 HP motors on a 200-gallon ASME horizontal tank deliver 102 ACFM combined at 175 PSI (51 ACFM per pump). Weighs 2,315 lbs, runs at 932 pump RPM, and ships in 230V or 460V three-phase. The duplex panel auto-alternates pumps and brings the lag pump online during peak demand for true 100% backup. Targeted at large body shops, woodworking plants, and production air systems where downtime for service is unacceptable.

CFM

102 @ 175 PSI

Duty

100% continuous

Tank size

200 gal

Air output per horsepowerAirflow per motor HP

3.40CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$183$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

CylinderQT2 cast iron pump x 2

Pump RPM932 rpm

Lubricationsplash

OilISO 100 non-detergent compressor oil

Sump—

Pump life40,000 hrs

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM102 @ 175 PSI

CFM / HP3.40

Cut-in / out—

Tank fill—

Est. draw26.3 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $9,453

Maintenance · yearlyEst. $750

Savings with Compressor Controller · yearlyEst. $2,174–$3,970

ELECTRICAL & FORM

Serviceelectric

Voltage230/460

Amps—

Motor—

Motor RPM1750 rpm

Controlduplex NEMA 1 with lead/lag

Startermagnetic with alternator

Weight2315 lb

FormHorizontal · 200 gal · 225 PSI tank rating

BUILD & ENVIRONMENT

Air outlet1 in NPT

DrainManual ball valve standard

Drain outlet—

ASME tankYes

Made in USAYes

Noise—

Op. temp40–104 °F

Dimensions—

Ship weight2315 lb

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1705 units
Peer class: 24 · 30 HP

Sizing & pricevs. 24 in class

SCFM @ 30 HP102cfm
77median 99.1203
+3% vs. median
Average price$18,665
$11,269median $20,778$45k
-10.2% vs. median

Efficiency vs. peersvs. 24 in class

CFM per HP3.4cfm/hp
2.58median 3.376.79
+0.9% vs. median
Price per CFM$183$/scfm
$116median $187$460
-2.6% vs. median
